(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

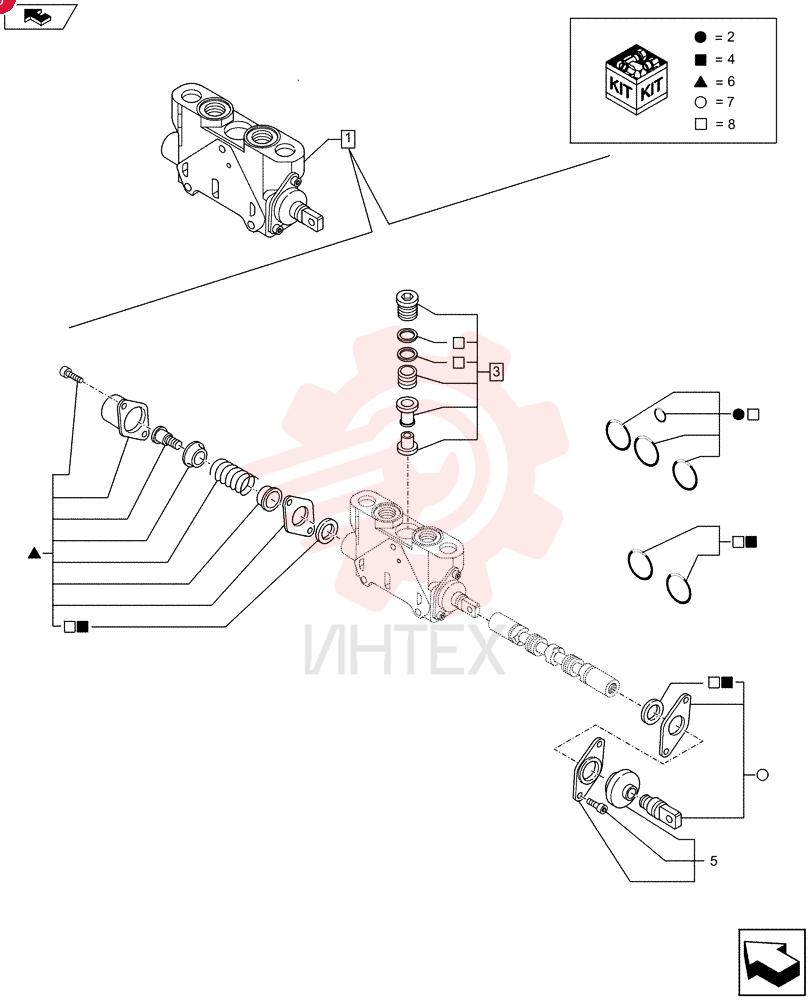

HYD VALVE SECTION 84373286

HYD VALVE SECTION 84373286

HYD VALVE SECTION 84373286

1 84373286

  • 84373286 - HYD VALVE SECTION

2 85825473

  • 85825473 - SEAL KIT

3 84232114

  • 84232114 - VALVE

4 85825248

  • 85825248 - SEAL KIT

5 85820130

  • 85820130 - BOOT

6 85824279

  • 85824279 - KIT

7 85824278

  • 85824278 - KIT

8 87617657

  • 87617657 - O-RING KIT
