New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

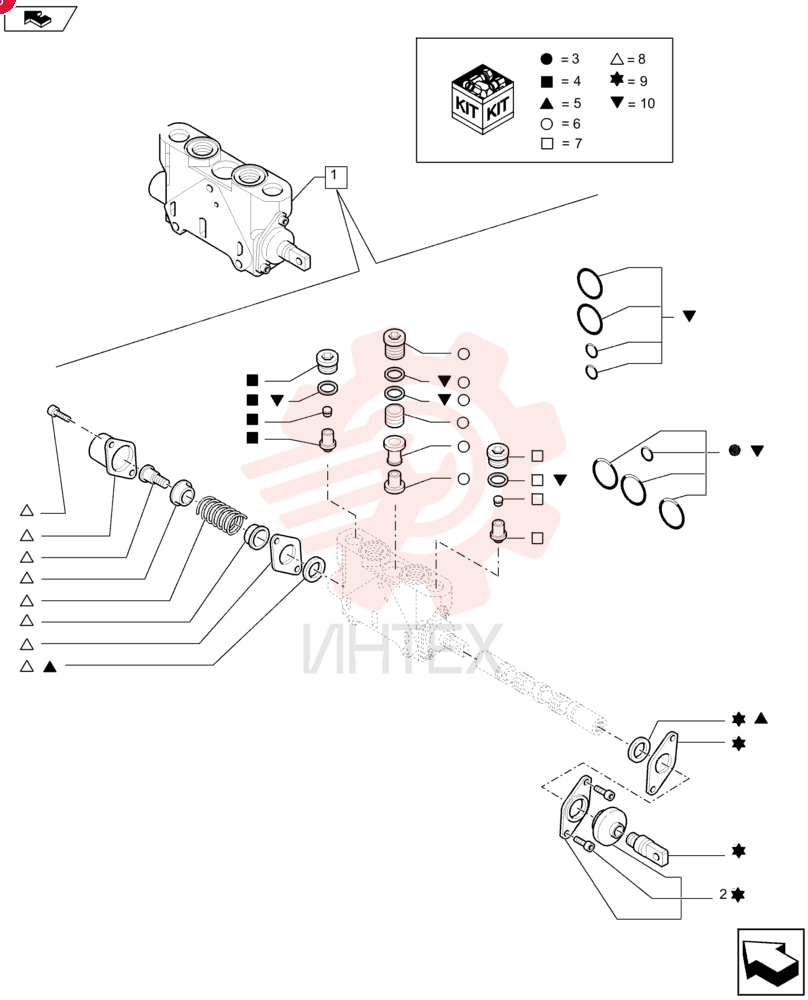

HYD VALVE SECTION 84232355

HYD VALVE SECTION 84232355

HYD VALVE SECTION 84232355

1 84232355

  • 84232355 - HYD VALVE SECTION

2 85820130

  • 85820130 - BOOT

3 85825473

  • 85825473 - SEAL KIT

4 87719000

  • 87719000 - VALVE PRESSURE RELIE
  • 240Bar
  • 3480Psi

5 85825248

  • 85825248 - SEAL KIT

6 84232114

  • 84232114 - VALVE

7 84232746

  • 84232746 - PLUG

8 85824279

  • 85824279 - KIT

9 85824278

  • 85824278 - KIT

10 87617657

  • 87617657 - O-RING KIT
