(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

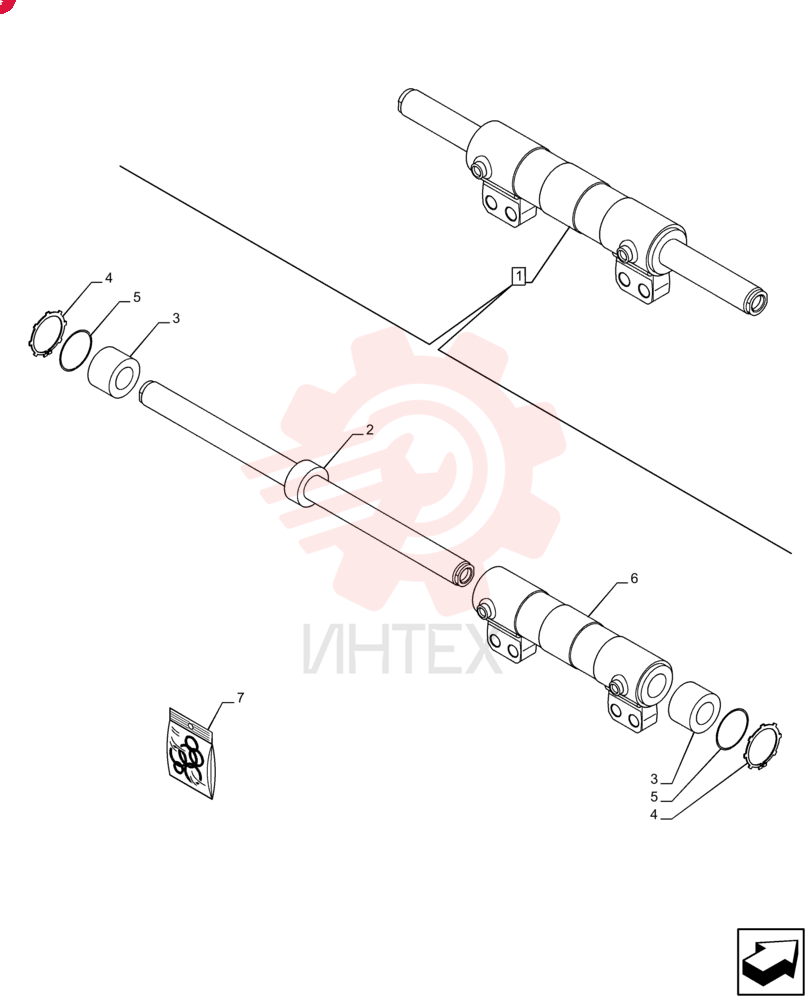

STEERING CYLINDER,Double Acting, 40mm Rod, 70mm Bore, 249mm Stroke 84264406 (5)

STEERING CYLINDER,Double Acting, 40mm Rod, 70mm Bore, 249mm Stroke 84264406 (5)

STEERING CYLINDER,Double Acting, 40mm Rod, 70mm Bore, 249mm Stroke 84264406 (5)

1 84264406

  • 84264406 - STEERING CYLINDER
  • Double Acting
  • 40mm Rod
  • 70mm Bore
  • 249mm Stroke

2 84276953

  • 84276953 - ROD

3 84276994

  • 84276994 - CYLINDER END CAP

4 84276996

  • 84276996 - SNAP RING
  • 70mm OD x 2mm Thk

5 84276995

  • 84276995 - CIRCLIP
  • 70mm Special

6 NSS

  • NSS - NOT SOLD SEPARAT

7 84331720

  • 84331720 - SEAL KIT
