(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

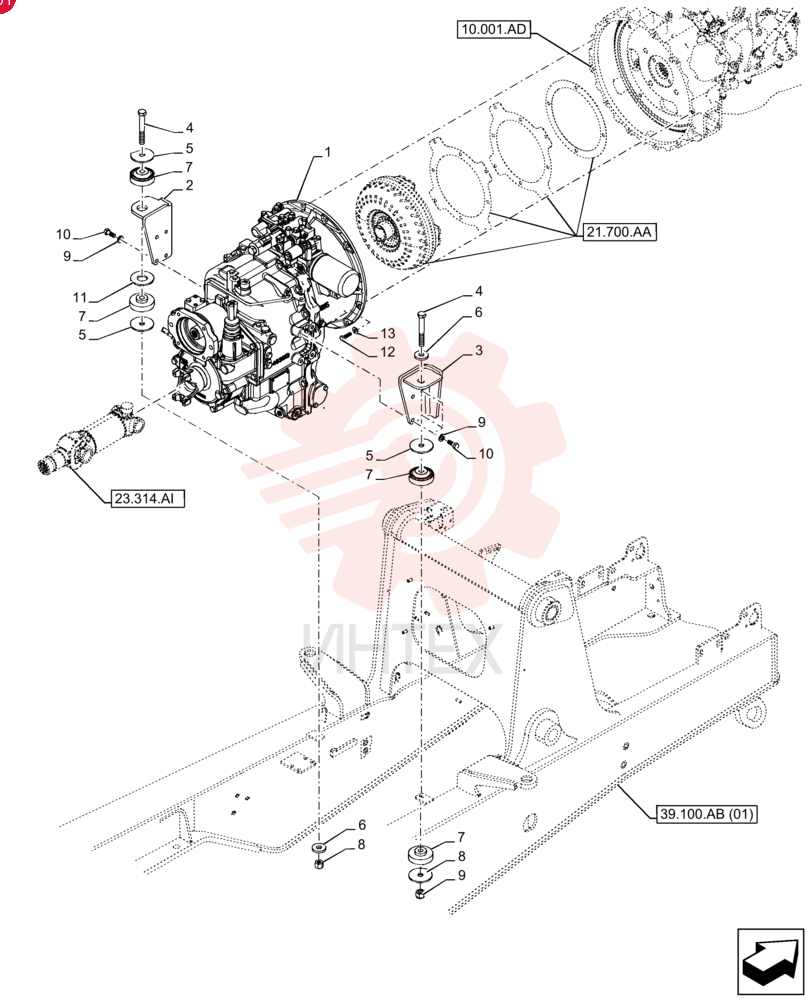

TRANSMISSION 84261545

TRANSMISSION 84261545

TRANSMISSION 84261545

1 84261545

  • 84261545 - TRANSMISSION

2 47611157

  • 47611157 - BRACKET

3 84522278

  • 84522278 - BRACKET

4 321246

  • 321246 - BOLT
  • Hex
  • M16 x 2 x 120mm
  • Cl 8.8

5 87630175

  • 87630175 - WASHER
  • 0.66" ID x 3" OD x 0.18" Thk

6 86592702

  • 86592702 - WASHER
  • 17mm ID x 45mm OD x 6mm Thk

7 84383342

  • 84383342 - MOUNT

8 412066

  • 412066 - NUT
  • M16 x 2.0
  • Cl 8

9 86625255

  • 86625255 - WASHER
  • 13.3mm ID x 24.5mm OD x 3mm Thk

10 9706687

  • 9706687 - BOLT
  • M12 x 1.75 x 30mm
  • Cl 8.8

11 47650422

  • 47650422 - WASHER
  • 38mm ID x 80.5mm OD x 7mm Thk

12 9515003

  • 9515003 - BOLT
  • Hex
  • M10 x 1.5 x 30mm
  • Cl 10.9

13 86632588

  • 86632588 - WASHER
  • 0.41" ID x 0.81" OD x 0.07" Thk
