(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

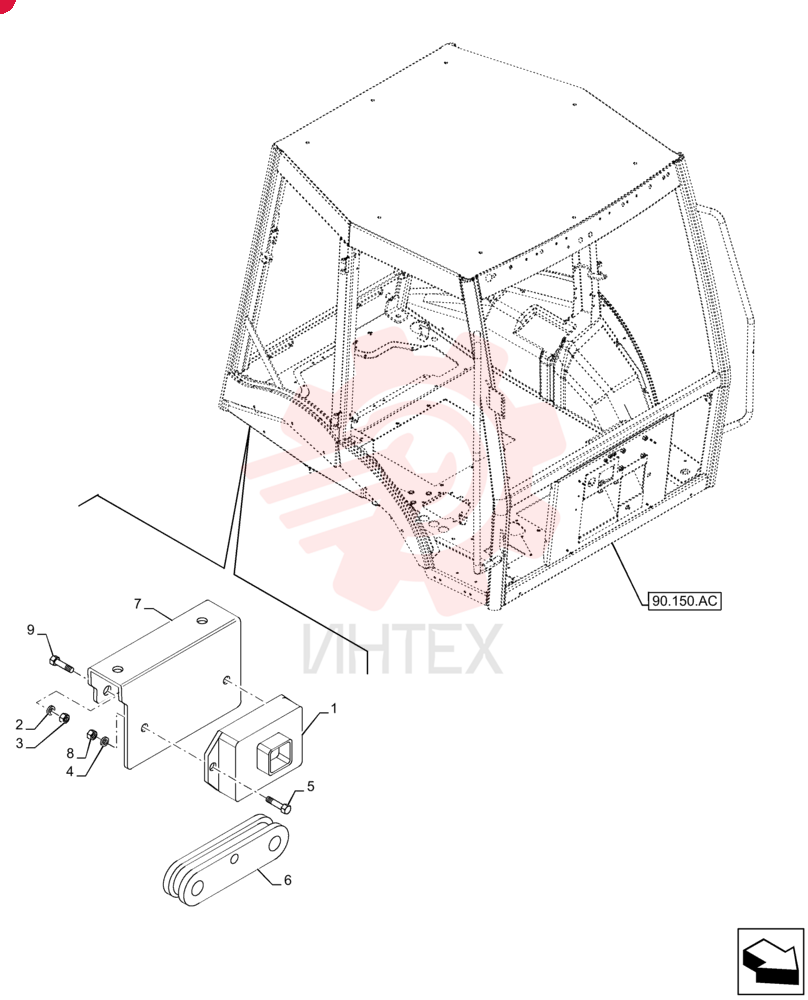

MODULE 84203217

MODULE 84203217

MODULE 84203217

1 84203217

  • 84203217 - MODULE

2 11197779

  • 11197779 - BELLEVILLE WASHER
  • M6 Bolt Size x 12mm OD x 1.2mm Thk

3 12574211

  • 12574211 - NUT
  • M6 x 1
  • Cl 8

4 47048959

  • 47048959 - WASHER
  • 4.3mm ID x 9mm OD x 0.8mm Thk

5 10444721

  • 10444721 - BOLT
  • Hex
  • M4 x 14mm
  • Cl 8.8
  • Full Thd

6 87439572

  • 87439572 - GROMMET
  • 2 Holes
  • 122.5mm L x 47mm W x 20mm Thk

7 85828213

  • 85828213 - SUPPORT

8 12574011

  • 12574011 - NUT
  • M4 x .7
  • Cl 8

9 10902321

  • 10902321 - SCREW
  • Hex
  • M6 x 18mm
  • Cl 8.8
  • Full Thd
