New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

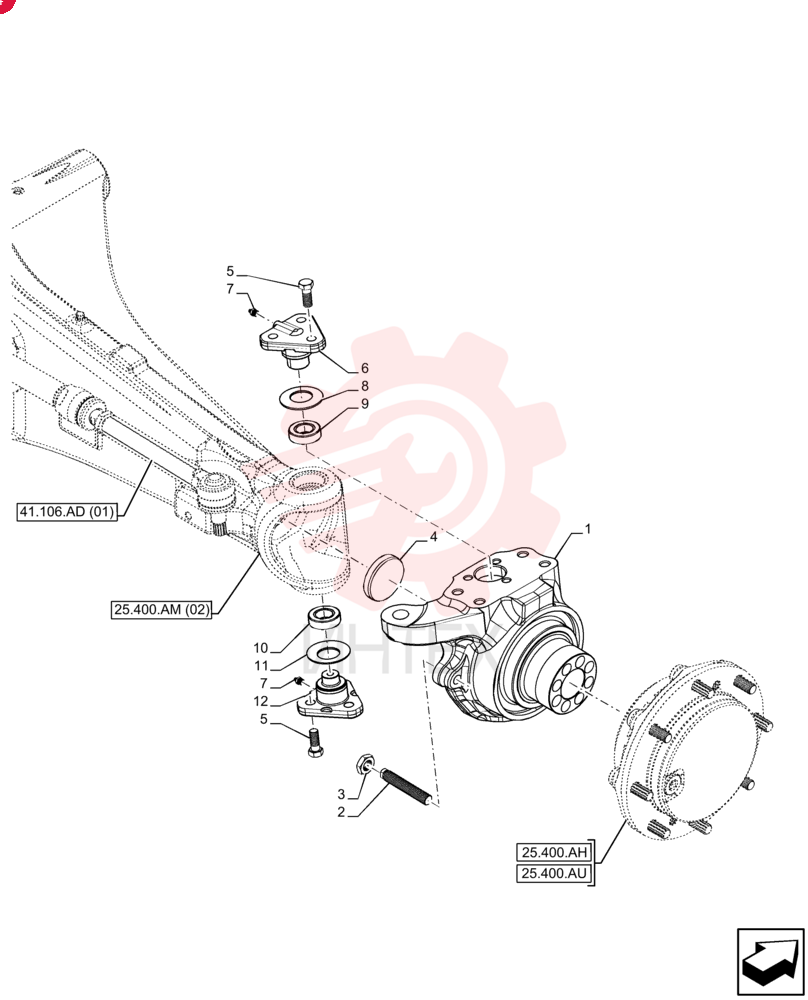

STEERING KNUCKLE 84259616 (3)

STEERING KNUCKLE 84259616 (3)

STEERING KNUCKLE 84259616 (3)

1 84259616

  • 84259616 - STEERING KNUCKLE

2 84259618

  • 84259618 - STEERING KNUCKLE

3 87751873

  • 87751873 - SCREW
  • M18 x 105mm
  • Cl 10.9

4 47361877

  • 47361877 - NUT
  • Hex
  • Thin
  • M18 x 2.5
  • Cl. 5

5 84211247

  • 84211247 - PLUG

6 84273749

  • 84273749 - BOLT
  • M14 x 2 x 35mm

7 84259754

  • 84259754 - PIN
  • 49.9mm OD x 48mm L

8 84351730

  • 84351730 - FITTING
  • M10 x 1

9 84241623

  • 84241623 - SPRING
  • Belleville
  • 36.13mm ID x 70.85mm OD x 2.26mm Thk

10 84241615

  • 84241615 - GROOVED BUSHING
  • 35mm ID x 52mm OD x 20mm L

11 87523063

  • 87523063 - SPHERICAL BEARING
  • 28mm ID x 52mm OD x 16mm W

12 84241624

  • 84241624 - SPRING
  • Belleville
  • 47.63mm ID x 69.85mm OD x 0.97mm Thk

13 84259753

  • 84259753 - PIN
  • 49.9mm OD x 45mm L
