(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

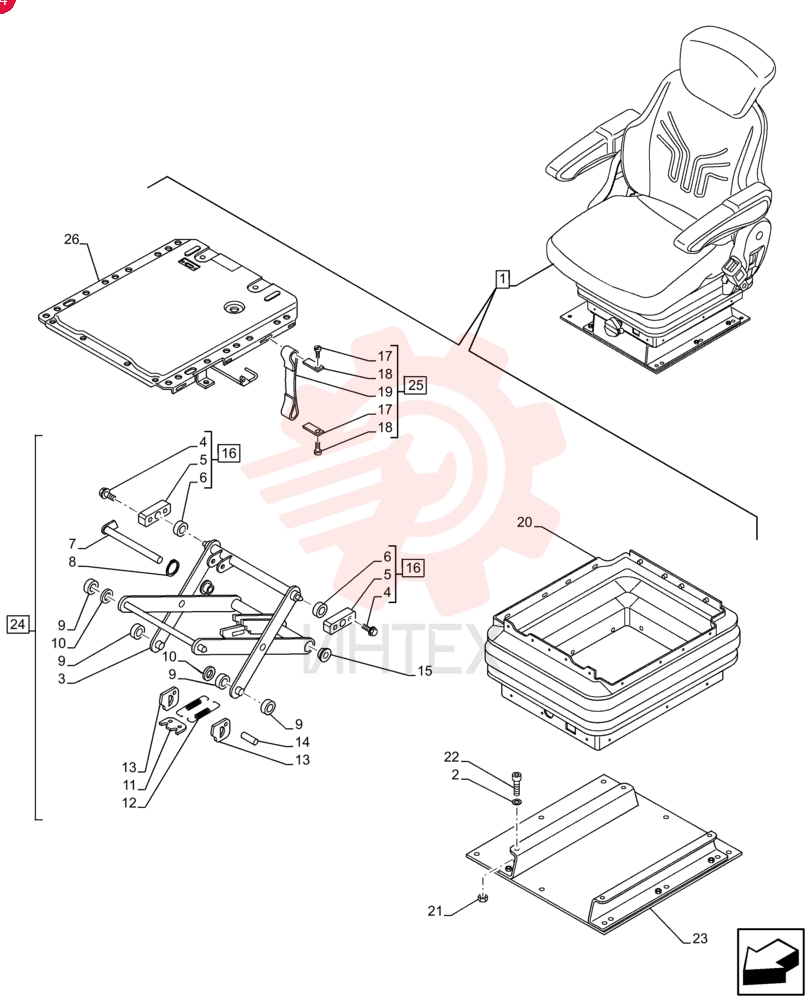

SEAT 84177708 (5)

SEAT 84177708 (5)

SEAT 84177708 (5)

1 84177708

  • 84177708 - SEAT

2 47931583

  • 47931583 - DRIVER SEAT

3 82034881

  • 82034881 - WASHER
  • 8.4mm ID

4 NSS

  • NSS - NOT SOLD SEPARAT

5 85817444

  • 85817444 - SCREW
  • M6 x 16mm

6 NSS

  • NSS - NOT SOLD SEPARAT

7 85817445

  • 85817445 - BUSHING

8 85817429

  • 85817429 - PIN

9 82035127

  • 82035127 - WASHER
  • M9

10 9958784

  • 9958784 - SPACER

11 85817442

  • 85817442 - BUSHING

12 9958782

  • 9958782 - PLATE

13 84171414

  • 84171414 - TENSION SPRING

14 9958792

  • 9958792 - PLATE

15 9958793

  • 9958793 - BOLT

16 82035048

  • 82035048 - BUSHING

17 86024670

  • 86024670 - KIT

18 85817448

  • 85817448 - RIVET
  • 5mm OD x 10mm L

19 85817449

  • 85817449 - PLATE

20 NSS

  • NSS - NOT SOLD SEPARAT

21 85817428

  • 85817428 - BELLOWS

22 82034880

  • 82034880 - NUT
  • M8

23 82034893

  • 82034893 - SCREW
  • M8 x 1.25 x 1.25mm

24 84332462

  • 84332462 - SUPPORT

25 47931173

  • 47931173 - SUPPORT

26 85817446

  • 85817446 - SUSPENSION

27 85817447

  • 85817447 - HANDLE

28 85817450

  • 85817450 - PLATE
