(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

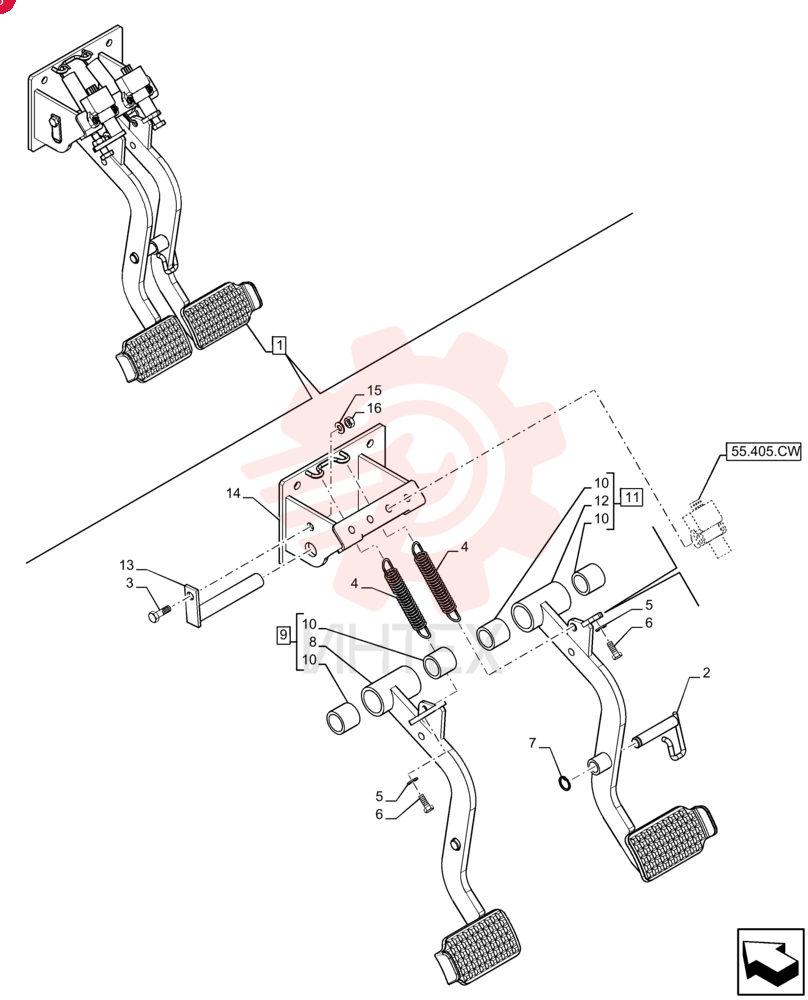

PEDAL 84206741 (2)

PEDAL 84206741 (2)

PEDAL 84206741 (2)

1 84206741

  • 84206741 - PEDAL

2 84207666

  • 84207666 - STOP LOCK

3 10910834

  • 10910834 - SCREW
  • Hex
  • M8 x 1 x 25mm
  • Cl 10.9

4 5153180

  • 5153180 - SPRING
  • 21mm OD x 84mm L

5 12164721

  • 12164721 - NUT
  • M10 x 1.25
  • Cl 10

6 15970921

  • 15970921 - SCREW
  • Hex
  • M10 x 1.25 x 35mm
  • Cl 8.8
  • Full Thd

7 11066276

  • 11066276 - SNAP RING
  • M14
  • Ext

8 NSS

  • NSS - NOT SOLD SEPARAT

9 84207734

  • 84207734 - PEDAL

10 84207725

  • 84207725 - BUSHING
  • 20mm ID x 23mm OD x 20mm L

11 84207732

  • 84207732 - BRAKE LEVER

12 NSS

  • NSS - NOT SOLD SEPARAT

13 84207611

  • 84207611 - PIN
  • 20mm OD x 141mm L

14 84206731

  • 84206731 - SUPPORT

15 14496504

  • 14496504 - WASHER
  • 8.4mm ID x 17mm OD x 1.6mm Thk

16 15503611

  • 15503611 - NUT
  • M8 x 1.25
