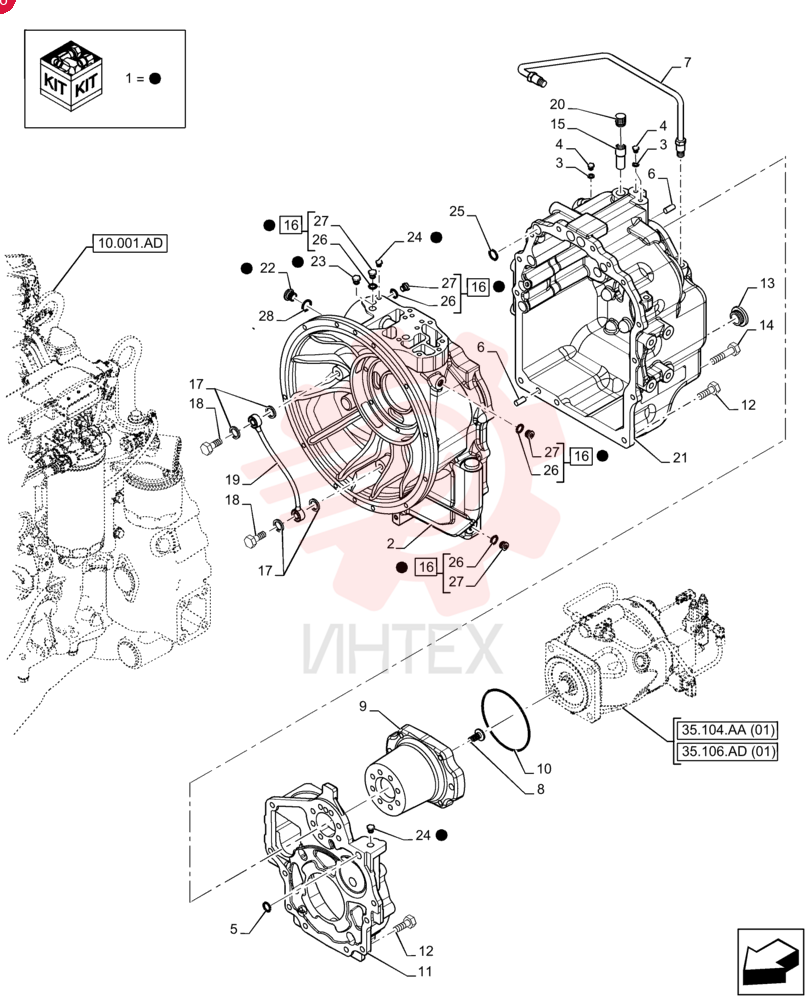

TRANSMISSION HOUSING 84214135
1 84214135
- 84214135 - TRANSMISSION HOUSING
2 NSS
- NSS - NOT SOLD SEPARAT
3 181100A1
- 181100A1 - PLUG
- 1/8 CAS x 8
4 934667R1
- 934667R1 - SEALING RING
- M10 x 14 x 1
5 5194294
- 5194294 - RUBBER RING
6 K260177
- K260177 - PIN
7 87701270
- 87701270 - PIPE
8 87701258
- 87701258 - BOLT
- M10 x 1.5 x 45mm L
9 87701269
- 87701269 - FLANGE
10 87429982
- 87429982 - O-RING
11 87701257
- 87701257 - COVER
12 614-10030
- 614-10030 - BOLT
- Hex
- M10 x 1.5 x 30mm
- Cl 8.8
- Full Thd
13 100557A1
- 100557A1 - PLUG
- DRAIN
- M30 x 2
14 814-10150
- 814-10150 - BOLT
- Hex
- M10 x 1.5 x 150mm
- Cl 8.8
15 310772A1
- 310772A1 - VENTILATION PIPE
- 18 mm OD
- 42 mm Length
16 9625178
- 9625178 - PLUG
- 9/16" - 18 ORB
17 181105A1
- 181105A1 - SEALING WASHER
- 14mm ID x 20mm OD x 1.5mm Thk
18 181179A1
- 181179A1 - BANJO BOLT
19 181232A1
- 181232A1 - TUBE
20 1530028C1
- 1530028C1 - BREATHER
21 87701255
- 87701255 - TRANSMISSION HOUSING
22 181101A1
- 181101A1 - PLUG
- M14 x 1.5
23 87701260
- 87701260 - PLUG
- M16 x 1.5
24 87702570
- 87702570 - PLUG
- 7mm OD
25 181141A1
- 181141A1 - O-RING
- 17.12mm ID x 2.62mm Width
26 9617873
- 9617873 - O-RING
- 0.078" Thk x 0.468" ID
- -906
- Cl 6
- 90 Duro
27 NSS
- NSS - NOT SOLD SEPARAT
28 272217
- 272217 - O-RING
- 0.07" Thk x 0.426" ID
- -13
- Cl 6
- 90 Duro
