New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

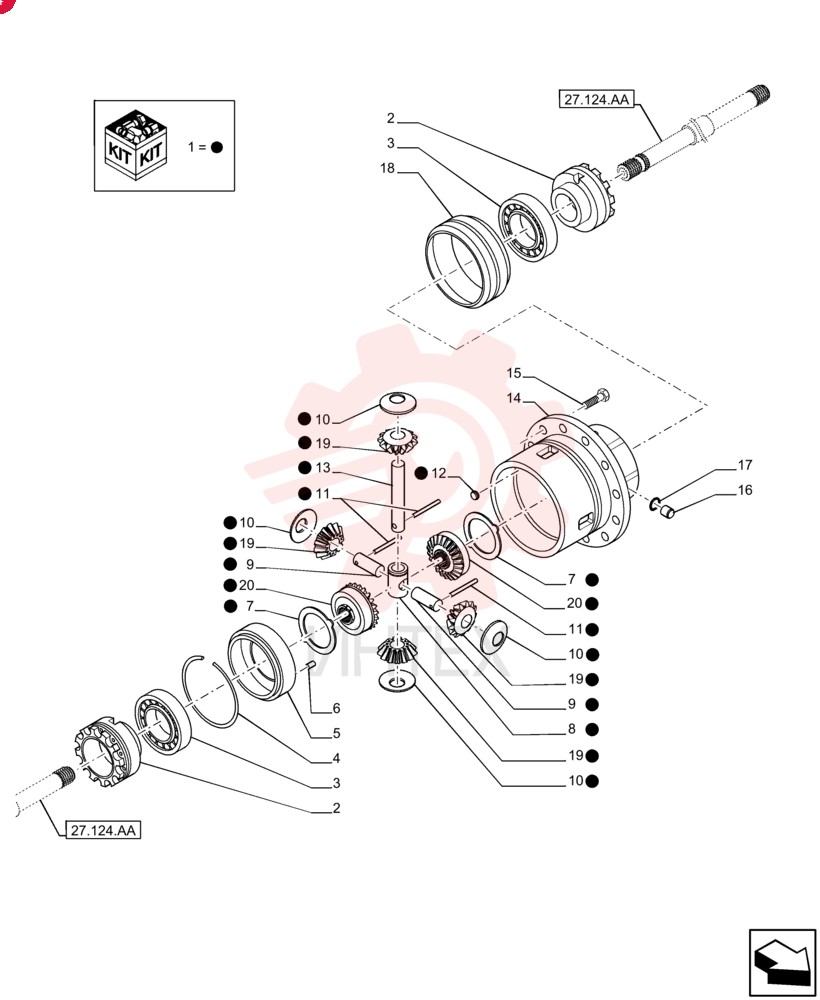

SERVICE KIT 87708394

SERVICE KIT 87708394

SERVICE KIT 87708394

1 87708394

  • 87708394 - SERVICE KIT

2 84202507

  • 84202507 - RING NUT
  • M104 x 1.5

3 E135785

  • E135785 - BEARING

4 87708409

  • 87708409 - CIRCLIP

5 87708408

  • 87708408 - HOUSING

6 87708411

  • 87708411 - PIN
  • 8mm OD x 12mm L

7 87708395

  • 87708395 - DRIVE PLATE

8 87708398

  • 87708398 - SPIDER

9 87708397

  • 87708397 - AXLE PIN

10 E135777

  • E135777 - WASHER

11 87708396

  • 87708396 - PIN
  • 8mm OD x 45mm L

12 D142898

  • D142898 - PLUG
  • M10 x 1

13 87708399

  • 87708399 - AXLE PIN

14 87708403

  • 87708403 - HOUSING

15 84203708

  • 84203708 - FLANGE BOLT
  • Hex
  • M12 x 25mm

16 292207A1

  • 292207A1 - PIN

17 292208A1

  • 292208A1 - O-RING

18 87708401

  • 87708401 - SLEEVE

19 NSS

  • NSS - NOT SOLD SEPARAT

20 NSS

  • NSS - NOT SOLD SEPARAT
