New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

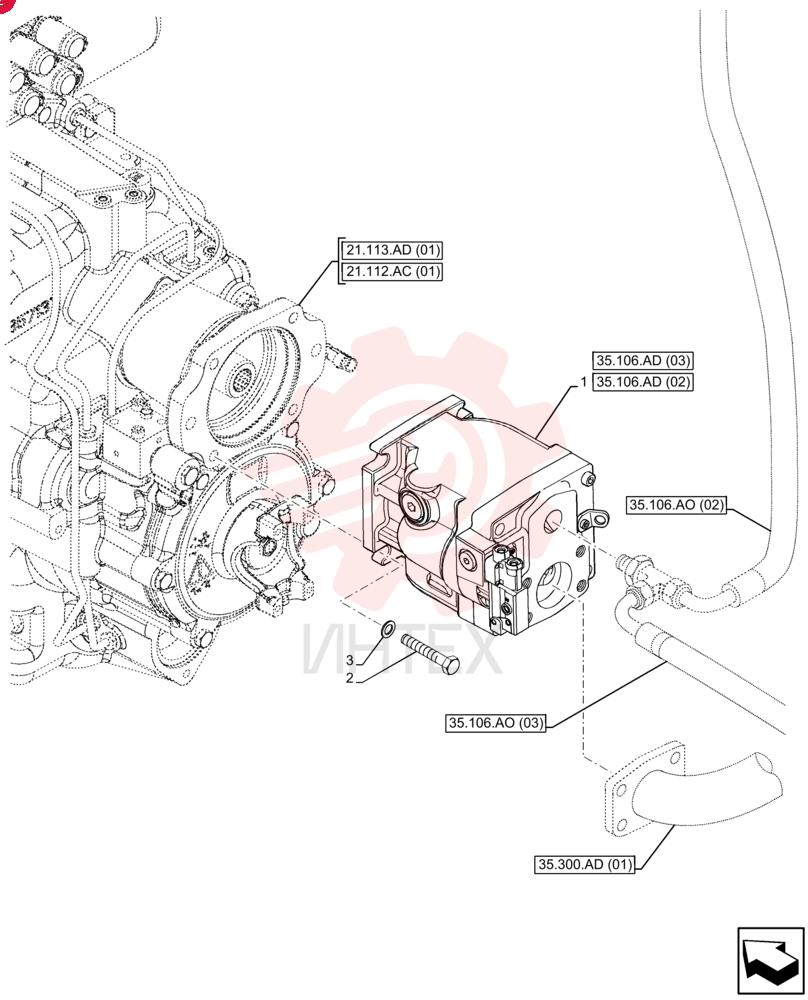

HYDRAULIC PUMP,71 CC 87735164 (1)

HYDRAULIC PUMP,71 CC 87735164 (1)

HYDRAULIC PUMP,71 CC 87735164 (1)

1 87735164

  • 87735164 - HYDRAULIC PUMP
  • 71 CC

2 15540534

  • 15540534 - SCREW
  • Hex
  • M12 x 1.25 x 35mm
  • Cl 10.9
  • Full Thd

3 11198679

  • 11198679 - BELLEVILLE WASHER
  • 13mm ID x 24mm OD x 0.6mm Thk

(B95C) - BACKHOE LOADER - TIER 4B (2/15-) — другие схемы

HYD CONNECTOR 73338799 HYD CONNECTOR 73338799
HYD CONNECTOR,1-1/16-12 ORB x 1-1/16-12 ORB HYD CONNECTOR,1-1/16-12 ORB x 1-1/16-12 ORB
HYD CONNECTOR,1-5/16-12 UN-2A x 1-5/8-12 UN-2A HYD CONNECTOR,1-5/16-12 UN-2A x 1-5/8-12 UN-2A
HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB
HYD TUBE 47553116 HYD TUBE 47553116
HYD TUBE 47553118 HYD TUBE 47553118
HYD TUBE 85802620 (1) HYD TUBE 85802620 (1)
HYD TUBE 85802620 (2) HYD TUBE 85802620 (2)
HYD TUBE 85805862 HYD TUBE 85805862
HYD TUBE 85819571 HYD TUBE 85819571
HYD TUBE 85827093 (1) HYD TUBE 85827093 (1)
HYD TUBE 85827093 (2) HYD TUBE 85827093 (2)
HYD TUBE,12 mm OD 87617945 (1) HYD TUBE,12 mm OD 87617945 (1)
HYD TUBE,12 mm OD 87617945 (2) HYD TUBE,12 mm OD 87617945 (2)
HYD TUBE,12 mm OD x 622.1, 510.5 mm L HYD TUBE,12 mm OD x 622.1, 510.5 mm L
HYD VALVE SECTION 84231764 HYD VALVE SECTION 84231764
HYD VALVE SECTION 84231765 HYD VALVE SECTION 84231765
HYD VALVE SECTION 84231780 HYD VALVE SECTION 84231780
HYD VALVE SECTION 84231784 HYD VALVE SECTION 84231784
HYD VALVE SECTION 84232932 HYD VALVE SECTION 84232932
HYD VALVE SECTION 84373257 HYD VALVE SECTION 84373257
HYD VALVE SECTION 84373287 HYD VALVE SECTION 84373287
HYD VALVE SECTION 85826339 HYD VALVE SECTION 85826339
HYD VALVE SECTION 9968526 HYD VALVE SECTION 9968526
HYDRAULIC CYLINDER 47714749 (1) HYDRAULIC CYLINDER 47714749 (1)
HYDRAULIC CYLINDER 47714749 (2) HYDRAULIC CYLINDER 47714749 (2)
HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 80mm Bore, 684.5mm Stroke 87315521 (1) HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 80mm Bore, 684.5mm Stroke 87315521 (1)
HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 80mm Bore, 684.5mm Stroke 87315521 (2) HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 80mm Bore, 684.5mm Stroke 87315521 (2)
HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 76.2mm Bore, 1050mm Stroke 87327264 (1) HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 76.2mm Bore, 1050mm Stroke 87327264 (1)
HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 76.2mm Bore, 1050mm Stroke 87327264 (2) HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 76.2mm Bore, 1050mm Stroke 87327264 (2)
HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 76.2mm Bore, 1200mm Stroke 87327259 (1) HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 76.2mm Bore, 1200mm Stroke 87327259 (1)
HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 76.2mm Bore, 1200mm Stroke 87327259 (2) HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 76.2mm Bore, 1200mm Stroke 87327259 (2)
HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 110mm Bore, 222.84mm Stroke 87315529 (1) HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 110mm Bore, 222.84mm Stroke 87315529 (1)
HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 110mm Bore, 222.84mm Stroke 87315529 (2) HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 110mm Bore, 222.84mm Stroke 87315529 (2)
HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 90mm Bore, 726.7mm Stroke 87315525 (1) HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 90mm Bore, 726.7mm Stroke 87315525 (1)
HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 90mm Bore, 726.7mm Stroke 87315525 (2) HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 90mm Bore, 726.7mm Stroke 87315525 (2)
HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 120.6mm Bore, 701mm Stroke HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 120.6mm Bore, 701mm Stroke
HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 127mm Bore, 701mm Stroke 47401832 (1) HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 127mm Bore, 701mm Stroke 47401832 (1)
HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 127mm Bore, 701mm Stroke 47401832 (2) HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 127mm Bore, 701mm Stroke 47401832 (2)
HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 127mm Bore, 701mm Stroke 47401832 (3) HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 127mm Bore, 701mm Stroke 47401832 (3)
HYDRAULIC HOSE 47619689 (1) HYDRAULIC HOSE 47619689 (1)
HYDRAULIC HOSE 47619689 (2) HYDRAULIC HOSE 47619689 (2)
HYDRAULIC HOSE,1000mm lg HYDRAULIC HOSE,1000mm lg
HYDRAULIC HOSE,19.05mm ID x 1650mm L 85819621 (1) HYDRAULIC HOSE,19.05mm ID x 1650mm L 85819621 (1)
HYDRAULIC HOSE,19.05mm ID x 1650mm L 85819621 (2) HYDRAULIC HOSE,19.05mm ID x 1650mm L 85819621 (2)
HYDRAULIC HOSE,19mm ID x 1150mm L, SAE 100R2 HYDRAULIC HOSE,19mm ID x 1150mm L, SAE 100R2
HYDRAULIC HOSE,19mm ID x 1450mm L HYDRAULIC HOSE,19mm ID x 1450mm L
HYDRAULIC HOSE,25mm ID x 1000mm L HYDRAULIC HOSE,25mm ID x 1000mm L
HYDRAULIC HOSE,50mm ID x 450mm L 85811870 (1) HYDRAULIC HOSE,50mm ID x 450mm L 85811870 (1)
HYDRAULIC HOSE,50mm ID x 450mm L 85811870 (2) HYDRAULIC HOSE,50mm ID x 450mm L 85811870 (2)
HYDRAULIC HOSE,6.35mm ID x 2050mm L HYDRAULIC HOSE,6.35mm ID x 2050mm L
HYDRAULIC HOSE,9.5mm ID x 1100mm L HYDRAULIC HOSE,9.5mm ID x 1100mm L
HYDRAULIC HOSE,9.5mm ID x 1350mm L HYDRAULIC HOSE,9.5mm ID x 1350mm L
HYDRAULIC OIL FILTER 84280360 (1) HYDRAULIC OIL FILTER 84280360 (1)
HYDRAULIC OIL FILTER 84280360 (2) HYDRAULIC OIL FILTER 84280360 (2)
HYDRAULIC PUMP 87705431 (1) HYDRAULIC PUMP 87705431 (1)
HYDRAULIC PUMP 87705431 (2) HYDRAULIC PUMP 87705431 (2)
HYDRAULIC PUMP,34.43 CC 87743506 (1) HYDRAULIC PUMP,34.43 CC 87743506 (1)
HYDRAULIC PUMP,34.43 CC 87743506 (2) HYDRAULIC PUMP,34.43 CC 87743506 (2)
HYDRAULIC PUMP,40.26 CC HYDRAULIC PUMP,40.26 CC
HYDRAULIC PUMP,71 CC 87735164 (1) HYDRAULIC PUMP,71 CC 87735164 (1)
HYDRAULIC PUMP,71 CC 87735164 (2) HYDRAULIC PUMP,71 CC 87735164 (2)
HYDRAULIC PUMP,71 CC 87735164 (3) HYDRAULIC PUMP,71 CC 87735164 (3)
HYDRAULIC VALVE 47707096 (1) HYDRAULIC VALVE 47707096 (1)
HYDRAULIC VALVE 47707096 (2) HYDRAULIC VALVE 47707096 (2)
HYDRAULIC VALVE 47765052 (1) HYDRAULIC VALVE 47765052 (1)
HYDRAULIC VALVE 47765052 (2) HYDRAULIC VALVE 47765052 (2)
HYDRAULIC VALVE 84161432 (1) HYDRAULIC VALVE 84161432 (1)
HYDRAULIC VALVE 84161432 (2) HYDRAULIC VALVE 84161432 (2)
HYDRAULIC VALVE 84161433 (1) HYDRAULIC VALVE 84161433 (1)
HYDRAULIC VALVE 84161433 (2) HYDRAULIC VALVE 84161433 (2)
HYDRAULIC VALVE 85805223 HYDRAULIC VALVE 85805223
HYDRAULIC VALVE 85805224 HYDRAULIC VALVE 85805224
HYDRAULIC VALVE 87358817 HYDRAULIC VALVE 87358817
IGNITION SWITCH,7 Pins IGNITION SWITCH,7 Pins
INJECTOR, EMISSIONS 47581674 INJECTOR, EMISSIONS 47581674
INSTRUMENT CLUSTER 47512922 INSTRUMENT CLUSTER 47512922
INSTRUMENT PANEL 87521741 INSTRUMENT PANEL 87521741
INSULATION 47691901 INSULATION 47691901
INSULATION 47763457 INSULATION 47763457
JOYSTICK 47754645 (1) JOYSTICK 47754645 (1)
JOYSTICK 47754645 (2) JOYSTICK 47754645 (2)
JOYSTICK 84564057 (1) JOYSTICK 84564057 (1)
JOYSTICK 84564057 (2) JOYSTICK 84564057 (2)
JOYSTICK 87485792 JOYSTICK 87485792
JOYSTICK 87485861 (1) JOYSTICK 87485861 (1)
JOYSTICK 87485861 (2) JOYSTICK 87485861 (2)
JOYSTICK 87485863 (1) JOYSTICK 87485863 (1)
JOYSTICK 87485863 (2) JOYSTICK 87485863 (2)
JOYSTICK 87685948 (1) JOYSTICK 87685948 (1)
JOYSTICK 87685948 (2) JOYSTICK 87685948 (2)
JOYSTICK 87685956 JOYSTICK 87685956
JOYSTICK 87685957 (1) JOYSTICK 87685957 (1)
JOYSTICK 87685957 (2) JOYSTICK 87685957 (2)
KIT 718718079 KIT 718718079
KIT 741120059 KIT 741120059
KIT 741392029 KIT 741392029
KIT 741393029 KIT 741393029
KIT 84173703 KIT 84173703
KIT 84180063 (1) KIT 84180063 (1)
KIT 84180063 (2) KIT 84180063 (2)
KIT 84186598 KIT 84186598
KIT 84186627 KIT 84186627
KIT 85804617 KIT 85804617
KIT 87315628 KIT 87315628
KIT 87498436 KIT 87498436
KIT 87552127 KIT 87552127
KIT DIA, CRAWLER EXC 718339059 (1) KIT DIA, CRAWLER EXC 718339059 (1)
KIT DIA, CRAWLER EXC 718339059 (2) KIT DIA, CRAWLER EXC 718339059 (2)
KIT DIA, CRAWLER EXC 718339059 (3) KIT DIA, CRAWLER EXC 718339059 (3)
KIT DIA, CRAWLER EXC 718339059 (4) KIT DIA, CRAWLER EXC 718339059 (4)
KM SPEEDOMETER 87482318 KM SPEEDOMETER 87482318
KM SPEEDOMETER 87482320 KM SPEEDOMETER 87482320
KNOB 85802682 KNOB 85802682
KNOB 85802947 KNOB 85802947
KNOB 87437688 KNOB 87437688
LATCH 47533178 LATCH 47533178
LEVER 47744171 (1) LEVER 47744171 (1)
LEVER 47744171 (2) LEVER 47744171 (2)
LEVER 85801488 (1) LEVER 85801488 (1)
