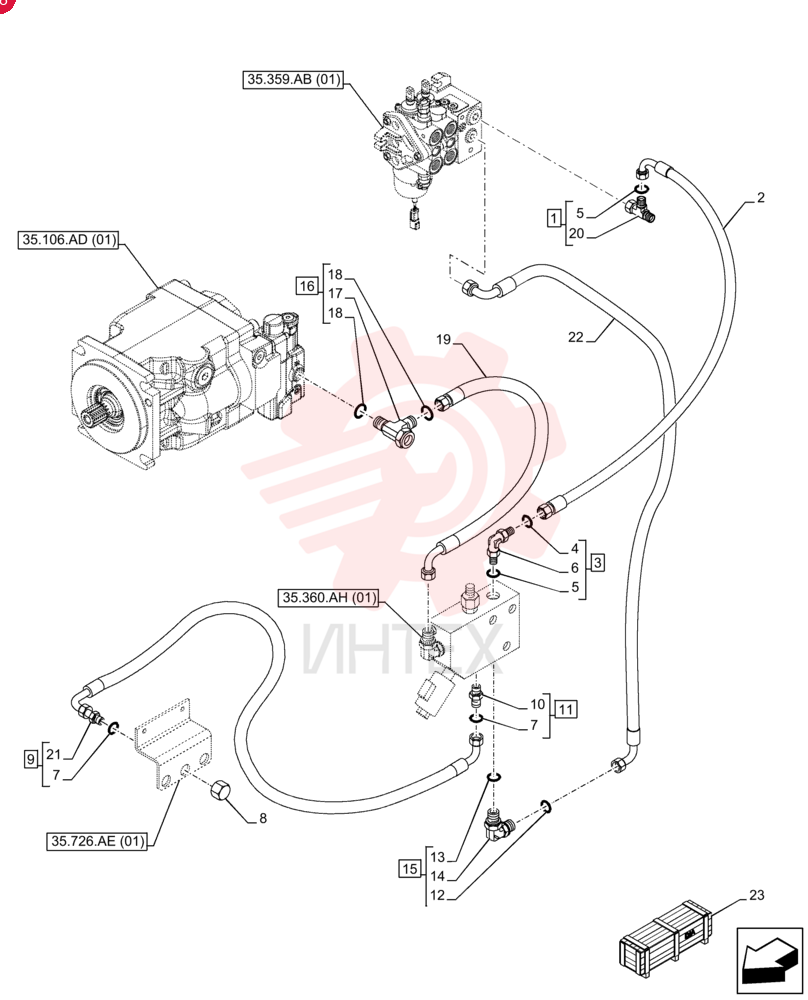

TEE,1-7/16"-12 ORFS to Swivel
1 86641295
- 86641295 - TEE
- 1-7/16"-12 ORFS to Swivel
2 84364724
- 84364724 - FLEXIBLE HOSE
- 19mm ID x 630mm L
3 9846956
- 9846956 - 90 ELBOW
- 90 Degree
- 1-7/16"-12 x 1-1/16"-12
- Adj
- ORFS
4 167266
- 167266 - O-RING
- 0.116" Thk x 0.924" ID
- -912
- Cl 6
- 90 Duro
5 9824050
- 9824050 - O-RING
- 0.07" Thk x 0.926" ID
- -21
- Cl 6
- 90 Duro
6 NSS
- NSS - NOT SOLD SEPARAT
7 9992069
- 9992069 - O-RING
- 0.07" Thk x 0.614" ID
- -16
- Cl 6
- 90 Duro
8 83987627
- 83987627 - CAP
- 1-14UN-2A
9 87619499
- 87619499 - FLEXIBLE HOSE
- 12.7mm ID x 1231mm L
10 NSS
- NSS - NOT SOLD SEPARAT
11 83962539
- 83962539 - HYD CONNECTOR
- 1" - 14 ORFS x 1-1/16 - 12 ORB
12 81844851
- 81844851 - O-RING
- 0.07" Thk x 0.364" ID
- -12
- Cl 6
- 90 Duro
13 81845037
- 81845037 - O-RING
- 0.078" Thk x 0.468" ID
- -906
- Cl 6
- 90 Duro
14 NSS
- NSS - NOT SOLD SEPARAT
15 83961741
- 83961741 - 90 ELBOW
- 11/16"-16 ORFS x 9/16"-18 ORB
16 84989848
- 84989848 - TEE
- 11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC
17 NSS
- NSS - NOT SOLD SEPARAT
18 9993141
- 9993141 - O-RING
- 0.07" Thk x 0.364" ID
- -12
- Cl 6
- 90 Duro
19 84121389
- 84121389 - FLEXIBLE HOSE
- 8mm ID x 1250mm L
20 NSS
- NSS - NOT SOLD SEPARAT
21 NSS
- NSS - NOT SOLD SEPARAT
22 87621913
- 87621913 - FLEXIBLE HOSE
- 15.9mm ID x 770mm L
23 741704119
- 741704119 - CONSTRUCTION DIA
