New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

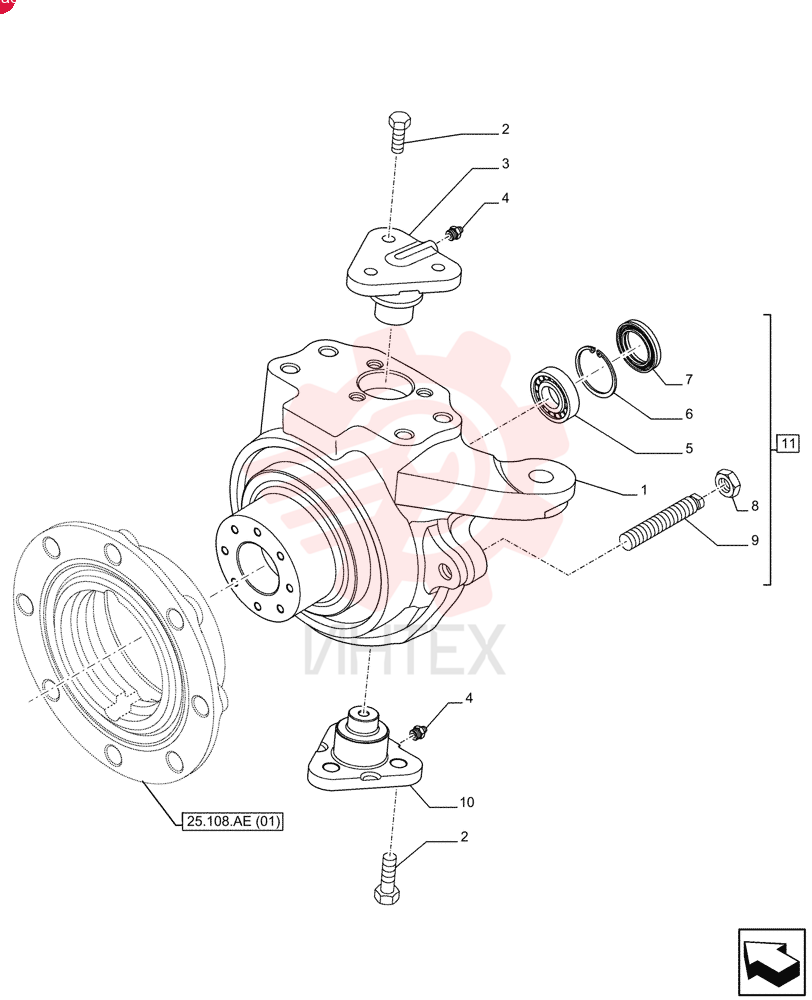

NOT SOLD SEPARAT NSS (1)

NOT SOLD SEPARAT NSS (1)

NOT SOLD SEPARAT NSS (1)

1 NSS

  • NSS - NOT SOLD SEPARAT

2 84273740

  • 84273740 - BOLT
  • Hex
  • M14 x 35mm
  • Cl 10.9

3 84259754

  • 84259754 - PIN
  • 49.9mm OD x 48mm L

4 13407211

  • 13407211 - LUBE NIPPLE
  • M10 x 1

5 84262394

  • 84262394 - BALL BEARING
  • 45mm ID x 75mm OD x 16mm W

6 84270868

  • 84270868 - CIRCLIP
  • 75 PHC

7 84264324

  • 84264324 - SEAL
  • 53.2mm ID x 78mm OD x 14mm Thk

8 47361877

  • 47361877 - NUT
  • Hex
  • Thin
  • M18 x 2.5
  • Cl. 5

9 87751873

  • 87751873 - SCREW
  • M18 x 105mm
  • Cl 10.9

10 84259753

  • 84259753 - PIN
  • 49.9mm OD x 45mm L

11 84337054

  • 84337054 - STEERING KNUCKLE

12 84337055

  • 84337055 - STEERING KNUCKLE
