New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

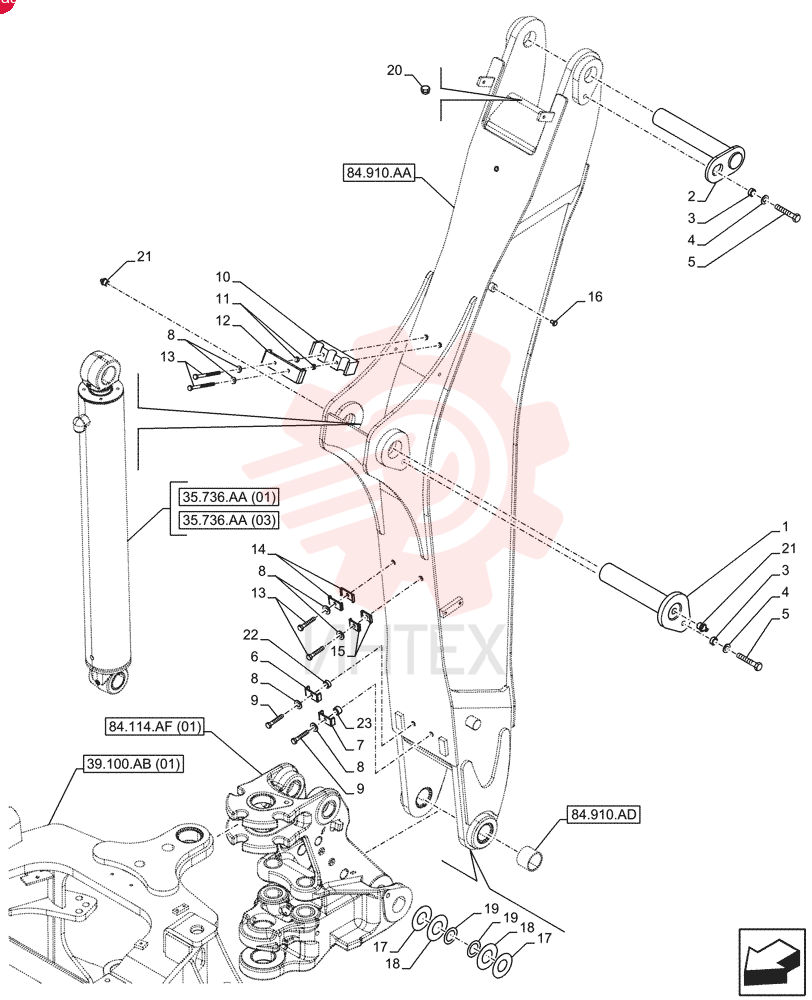

PIN,60mm OD x 250mm L

PIN,60mm OD x 250mm L

PIN,60mm OD x 250mm L

1 87480929

  • 87480929 - PIN
  • 60mm OD x 250mm L

2 85815607

  • 85815607 - PIN
  • 55mm OD x 345mm L

3 87747362

  • 87747362 - SLEEVE
  • 17mm ID x 30mm OD x 12mm L

4 85815609

  • 85815609 - WASHER
  • 16.5mm ID x 50mm OD x 6mm Thk

5 85802397

  • 85802397 - BOLT
  • Hex
  • M16 x 40mm
  • Cl 12.9

6 85802899

  • 85802899 - CLAMP
  • 76mm L x 30mm W x 5mm Thk

7 85802900

  • 85802900 - CLAMP
  • 65mm L x 30mm W x 5mm Thk

8 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

9 16044221

  • 16044221 - SCREW
  • Hex
  • M8 x 1.25 x 50mm
  • Cl 8.8

10 85802895

  • 85802895 - COLLAR
  • 4 Hoses

11 85802893

  • 85802893 - SPACER
  • 10mm ID x 16mm OD x 25.5mm L

12 85802894

  • 85802894 - U-BRACKET

13 16044421

  • 16044421 - SCREW
  • Hex
  • M8 x 60mm
  • Cl 8.8

14 85815628

  • 85815628 - CLAMP
  • 63mm L x 30mm W x 6mm Thk

15 85815627

  • 85815627 - CLAMP
  • 55mm L x 30mm W x 6mm Thk

16 87310961

  • 87310961 - PLUG
  • 9.5mm OD

17 85805295

  • 85805295 - SHIM
  • 51mm ID x 105mm OD x 1mm Thk

18 85805296

  • 85805296 - SHIM
  • 56mm ID x 110mm OD x 1mm Thk

19 85818916

  • 85818916 - SHIM
  • 46mm ID x 70mm OD x 1mm Thk

20 14589987

  • 14589987 - PLUG
  • 9.5mm OD x 23.5mm L
  • Black

21 83416242

  • 83416242 - LUBE NIPPLE
  • Straight
  • 1/8"-27 x 0.66"

22 85802901

  • 85802901 - SPACER
  • 10mm ID x 16mm OD x 17.5mm L

23 85802902

  • 85802902 - SPACER
  • 10mm ID x 16mm OD x 13.5mm L
