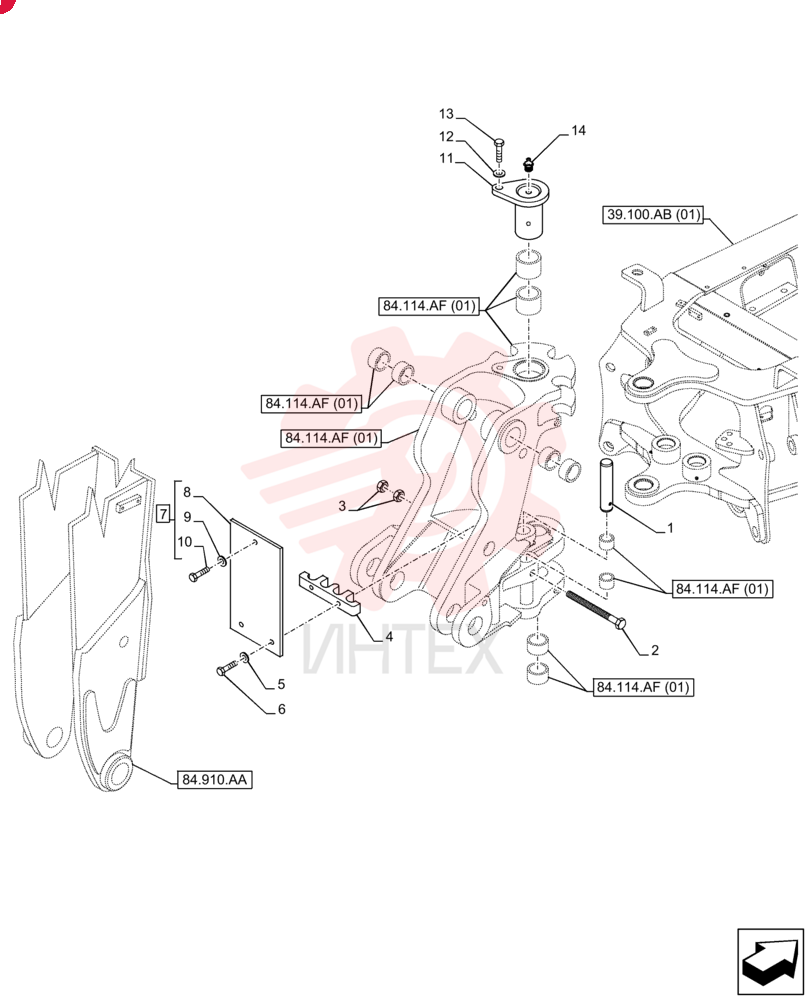

(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/
PIN,45mm OD x 202mm L

PIN,45mm OD x 202mm L

PIN,45mm OD x 202mm L

1 85803192

  • 85803192 - PIN
  • 45mm OD x 202mm L

2 87363478

  • 87363478 - BOLT
  • Hex
  • M14 x 2 x 270mm
  • Cl 10.9

3 10717421

  • 10717421 - THIN NUT
  • Thin
  • M14 x 2
  • Cl 05

4 87310285

  • 87310285 - CLAMP
  • 4 Hoses

5 11190579

  • 11190579 - BELLEVILLE WASHER
  • M10 Bolt Size x 20mm OD x 2.3mm Thk

6 11107321

  • 11107321 - BOLT
  • Hex
  • M10 x 55mm
  • Cl 8.8

7 85805648

  • 85805648 - KIT

8 85805137

  • 85805137 - PLATE

9 11193979

  • 11193979 - BELLEVILLE WASHER
  • M8 Bolt Size x 22mm OD x 1.5mm Thk

10 16043621

  • 16043621 - BOLT
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

11 85801076

  • 85801076 - PIN
  • 70mm OD x 132mm L

12 85802396

  • 85802396 - WASHER
  • 16.76mm ID x 38.1mm OD x 6.35mm Thk

13 85802397

  • 85802397 - BOLT
  • Hex
  • M16 x 40mm
  • Cl 12.9

14 83416242

  • 83416242 - LUBE NIPPLE
  • Straight
  • 1/8"-27 x 0.66"
