(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

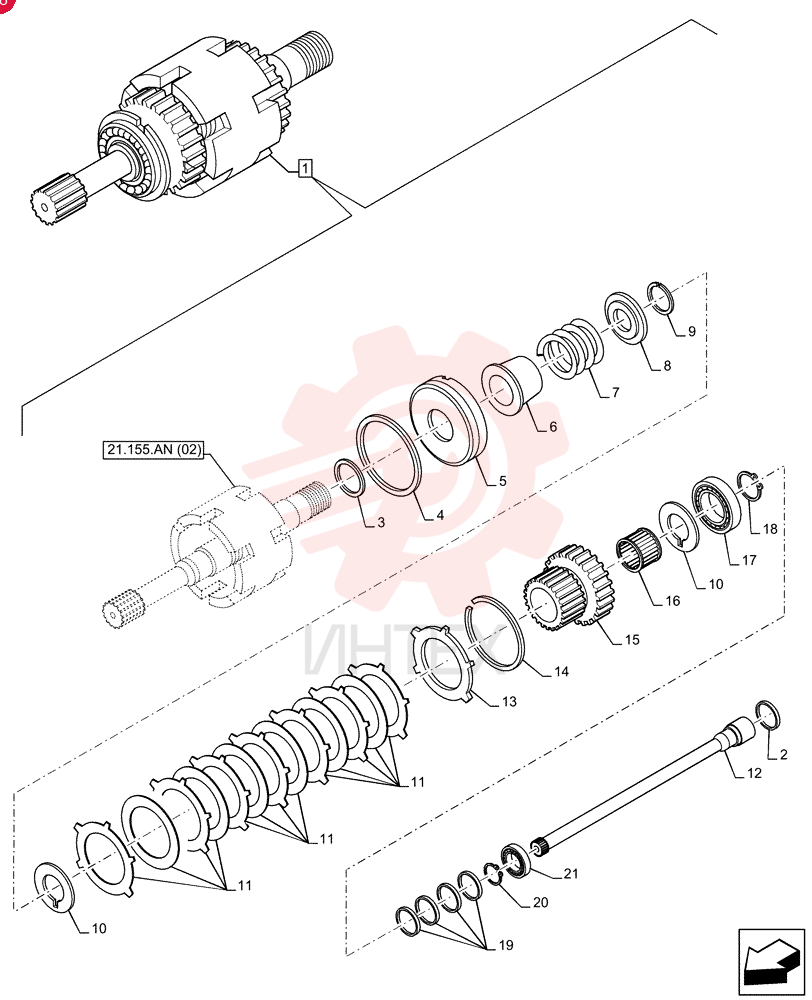

NOT SERVICED NS (1)

NOT SERVICED NS (1)

NOT SERVICED NS (1)

1 NS

  • NS - NOT SERVICED

2 358645A1

  • 358645A1 - SEALING RING

3 358642A1

  • 358642A1 - SEALING RING

4 358643A1

  • 358643A1 - SEALING RING
  • 126.83mm ID x 137mm OD x 3.25mm Thk

5 358644A1

  • 358644A1 - PISTON

6 358641A1

  • 358641A1 - TRANSMISSION SLEEVE

7 358637A1

  • 358637A1 - SPRING

8 181161A1

  • 181161A1 - PLATE
  • THRUST

9 181111A1

  • 181111A1 - RING
  • LOCKING
  • 47.8mm ID x 1.5mm Thk

10 358640A1

  • 358640A1 - WASHER

11 87705458

  • 87705458 - CLUTCH OVERHAUL KIT

12 87705460

  • 87705460 - PTO SHAFT

13 310519A1

  • 310519A1 - PLATE

14 181116A1

  • 181116A1 - RING
  • LOCKING
  • 146.6mm ID x 2.5mm Thk

15 87705459

  • 87705459 - GEAR
  • 37T

16 358633A1

  • 358633A1 - BEARING
  • NEEDLE
  • 50mm ID x 58mm OD x 25mm W

17 ST264

  • ST264 - BEARING
  • BALL
  • 50 mm ID x 90 mm OD x 20 mm

18 800-1150

  • 800-1150 - SNAP RING
  • M50
  • Ext

19 87429984

  • 87429984 - RING

20 800-1130

  • 800-1130 - SNAP RING
  • M30
  • Ext

21 87429983

  • 87429983 - BALL BEARING
  • 30mm ID x 55mm OD x 13mm W
