(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

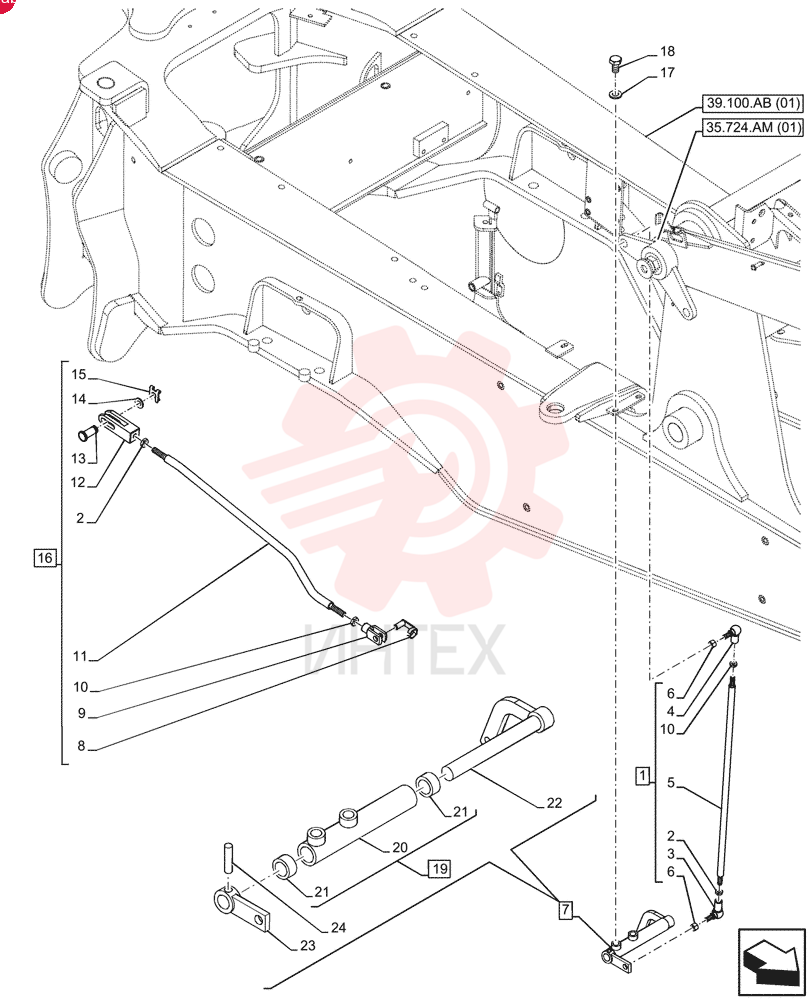

TIE-ROD,M8 x 582mm L

TIE-ROD,M8 x 582mm L

TIE-ROD,M8 x 582mm L

1 84213933

  • 84213933 - TIE-ROD
  • M8 x 582mm L

2 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

3 85804375

  • 85804375 - BALL JOINT
  • M8

4 85804376

  • 85804376 - BALL JOINT
  • M8

5 84213934

  • 84213934 - TIE-ROD
  • M8 x 396.6mm L

6 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

7 87482703

  • 87482703 - LEVER

8 85802738

  • 85802738 - RETAINER
  • 8mm OD x 30mm L

9 11991971

  • 11991971 - CLEVIS
  • M8

10 16102911

  • 16102911 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04
  • LH

11 87484493

  • 87484493 - TIE-ROD
  • M8 x 507mm L

12 85802737

  • 85802737 - PIN
  • 8mm OD x 28.5mm L

13 85802735

  • 85802735 - CLEVIS
  • M8

14 14496521

  • 14496521 - WASHER
  • 8.4mm ID x 17mm OD x 1.6mm Thk

15 11064071

  • 11064071 - CLIP
  • M8 x 6 x 0.94mm

16 87484494

  • 87484494 - TIE-ROD
  • 573mm L

17 11190574

  • 11190574 - BELLEVILLE WASHER
  • M10 Bolt Size x 20mm OD x 2.3mm Thk

18 15970521

  • 15970521 - BOLT
  • Hex
  • M10 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd

19 87482735

  • 87482735 - TUBE

20 87482734

  • 87482734 -

21 85802494

  • 85802494 - BUSHING
  • 16.09mm ID x 19.13mm OD x 8mm L

22 87482731

  • 87482731 - BRACKET

23 85827788

  • 85827788 - IDLER

24 85805616

  • 85805616 - PIN
  • 6.35mm OD x 25.4mm L
