New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

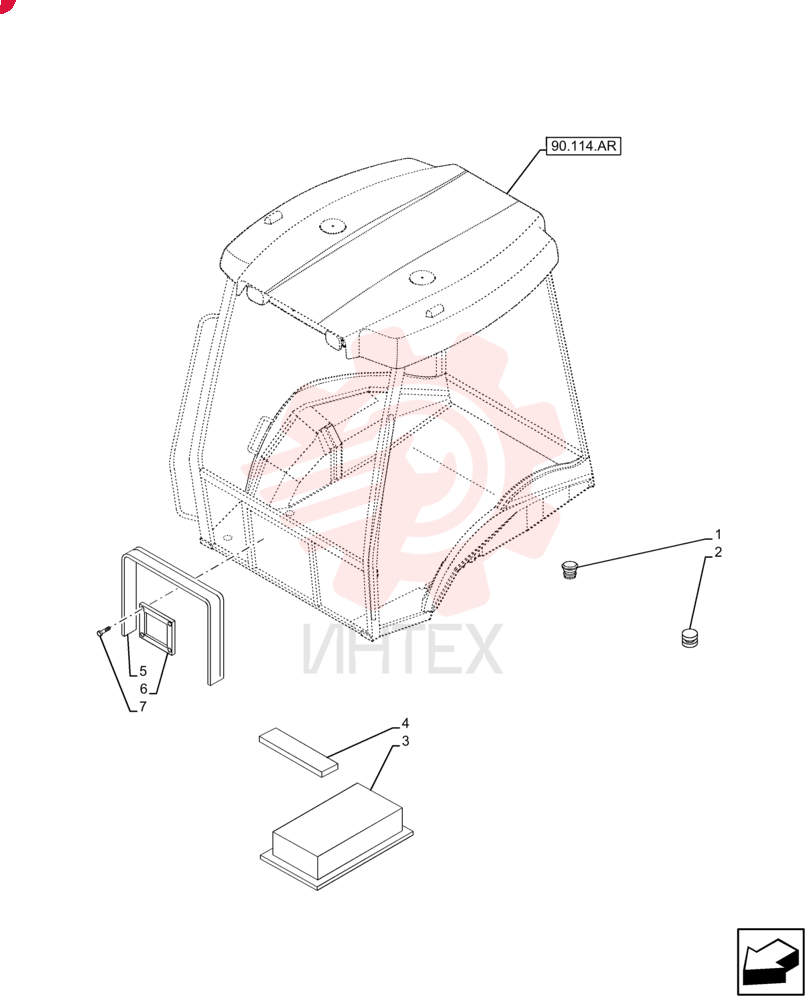

PLUG,23mm OD

PLUG,23mm OD

PLUG,23mm OD

1 79111978

  • 79111978 - PLUG
  • 23mm OD

2 82001909

  • 82001909 - PLUG
  • 33mm OD

3 4999021

  • 4999021 - GASKET

4 85805308

  • 85805308 - SEAL
  • 20mm W x 200mm L x 5mm Thk

5 47651847

  • 47651847 - BLOCK

6 47735085

  • 47735085 - MOUNTING PLATE

7 86625180

  • 86625180 - SCREW
  • HEX
  • 10-24X3/4 x 0.75 TT HWHD ZND
