(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

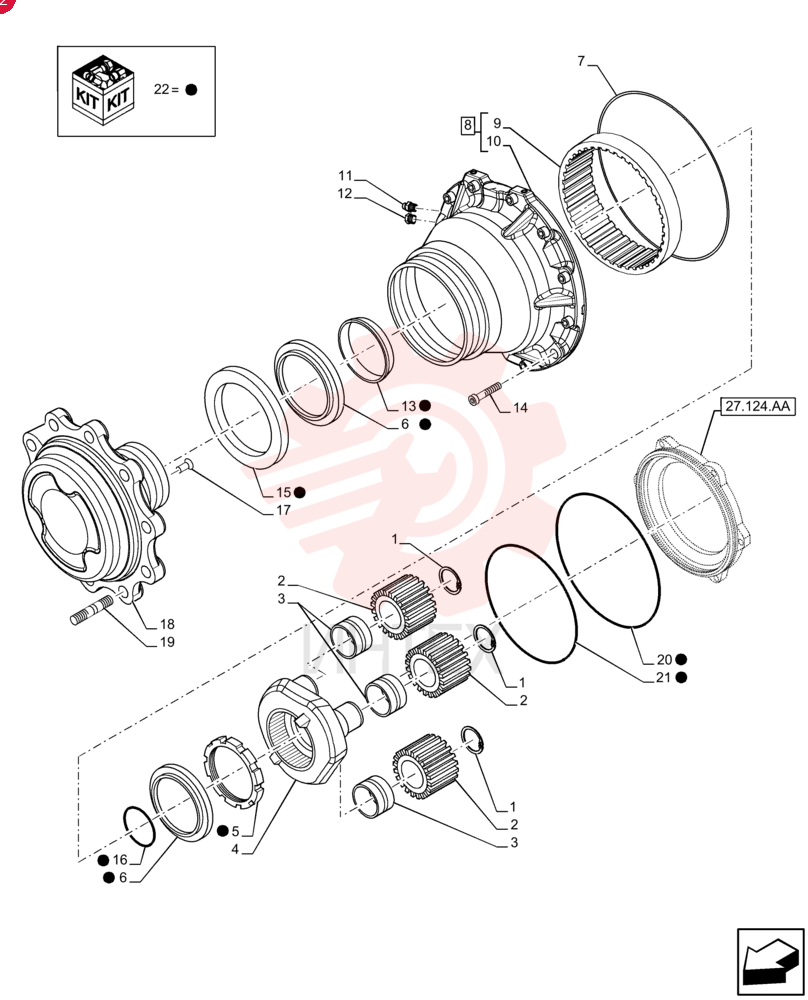

SNAP RING,M50, Ext

SNAP RING,M50, Ext

SNAP RING,M50, Ext

1 800-1150

  • 800-1150 - SNAP RING
  • M50
  • Ext

2 87708967

  • 87708967 - GEAR
  • 31T

3 87708444

  • 87708444 - ROLLER BEARING

4 87708452

  • 87708452 - PLANET CARRIER

5 NSS

  • NSS - NOT SOLD SEPARAT

6 K395101

  • K395101 - TAPERED BEARING
  • 109.5mm ID x 126mm x 21.4mm L

7 87711038

  • 87711038 - RING

8 87708466

  • 87708466 - GEAR SET

9 87708467

  • 87708467 - RING GEAR

10 NSS

  • NSS - NOT SOLD SEPARAT

11 E135810

  • E135810 - VENTING SCREW

12 9625178

  • 9625178 - PLUG
  • 9/16" - 18 ORB

13 87708447

  • 87708447 - SPACER

14 403955A1

  • 403955A1 - BOLT

15 452140A1

  • 452140A1 - SEALING RING
  • 150mm ID x 180mm OD x 14.5mm W

16 87708453

  • 87708453 - SNAP RING

17 K395093

  • K395093 - HEADED PIN
  • 12mm OD x 15mm L

18 87708445

  • 87708445 - FLANGE

19 85808260

  • 85808260 - STUD

20 371144A1

  • 371144A1 - O-RING

21 87708438

  • 87708438 - O-RING

22 47579403

  • 47579403 - KIT
