New Holland Construction
/

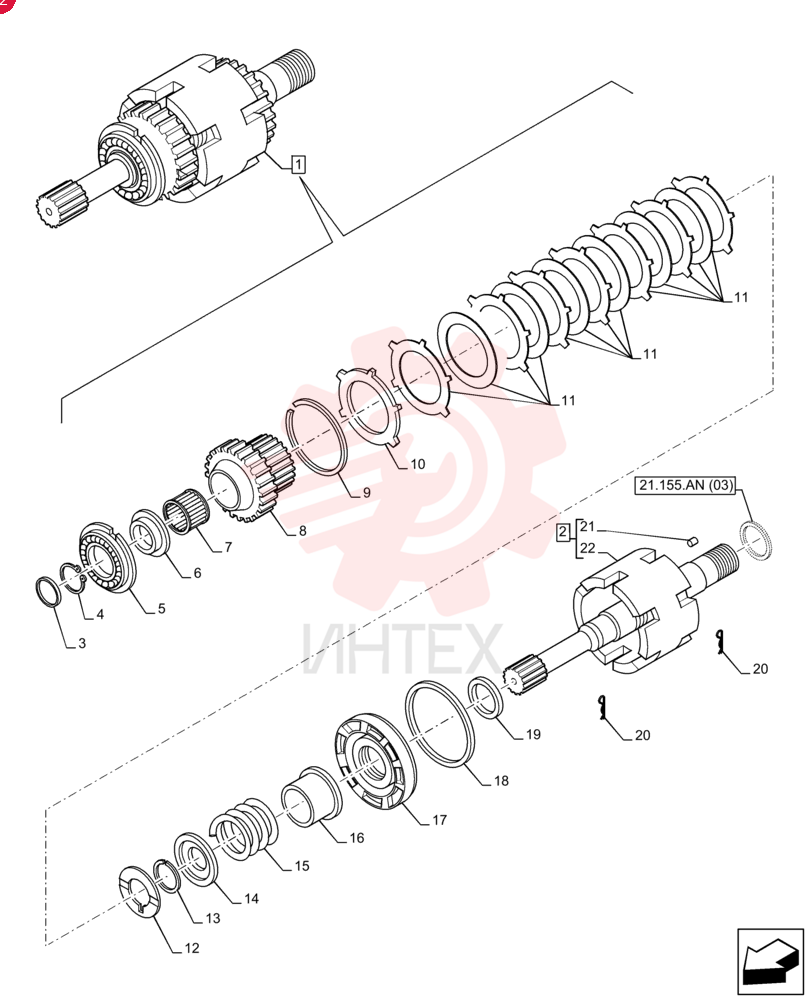

(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/
NOT SERVICED NS (2)

NOT SERVICED NS (2)

NOT SERVICED NS (2)

1 NS

  • NS - NOT SERVICED

2 87525849

  • 87525849 - REPAIR KIT

3 358645A1

  • 358645A1 - SEALING RING

4 A48041

  • A48041 - CIRCLIP
  • 41.5mm ID x 2.5mm Thk

5 181128A1

  • 181128A1 - BEARING
  • BALL
  • 45mm ID x 85mm OD x 19mm W

6 358635A1

  • 358635A1 - SPACER

7 358633A1

  • 358633A1 - BEARING
  • NEEDLE
  • 50mm ID x 58mm OD x 25mm W

8 87705457

  • 87705457 - GEAR
  • 45T

9 181116A1

  • 181116A1 - RING
  • LOCKING
  • 146.6mm ID x 2.5mm Thk

10 310519A1

  • 310519A1 - PLATE

11 87705458

  • 87705458 - CLUTCH OVERHAUL KIT

12 358640A1

  • 358640A1 - WASHER

13 181111A1

  • 181111A1 - RING
  • LOCKING
  • 47.8mm ID x 1.5mm Thk

14 181161A1

  • 181161A1 - PLATE
  • THRUST

15 358637A1

  • 358637A1 - SPRING

16 358641A1

  • 358641A1 - TRANSMISSION SLEEVE

17 358644A1

  • 358644A1 - PISTON

18 358643A1

  • 358643A1 - SEALING RING
  • 126.83mm ID x 137mm OD x 3.25mm Thk

19 358642A1

  • 358642A1 - SEALING RING

20 181108A1

  • 181108A1 - SPLIT PIN
  • 3mm OD x 8mm L

21 139312A1

  • 139312A1 - PLUG
  • Expansion
  • 6mm OD

22 NSS

  • NSS - NOT SOLD SEPARAT
