Bobcat
/
440
/

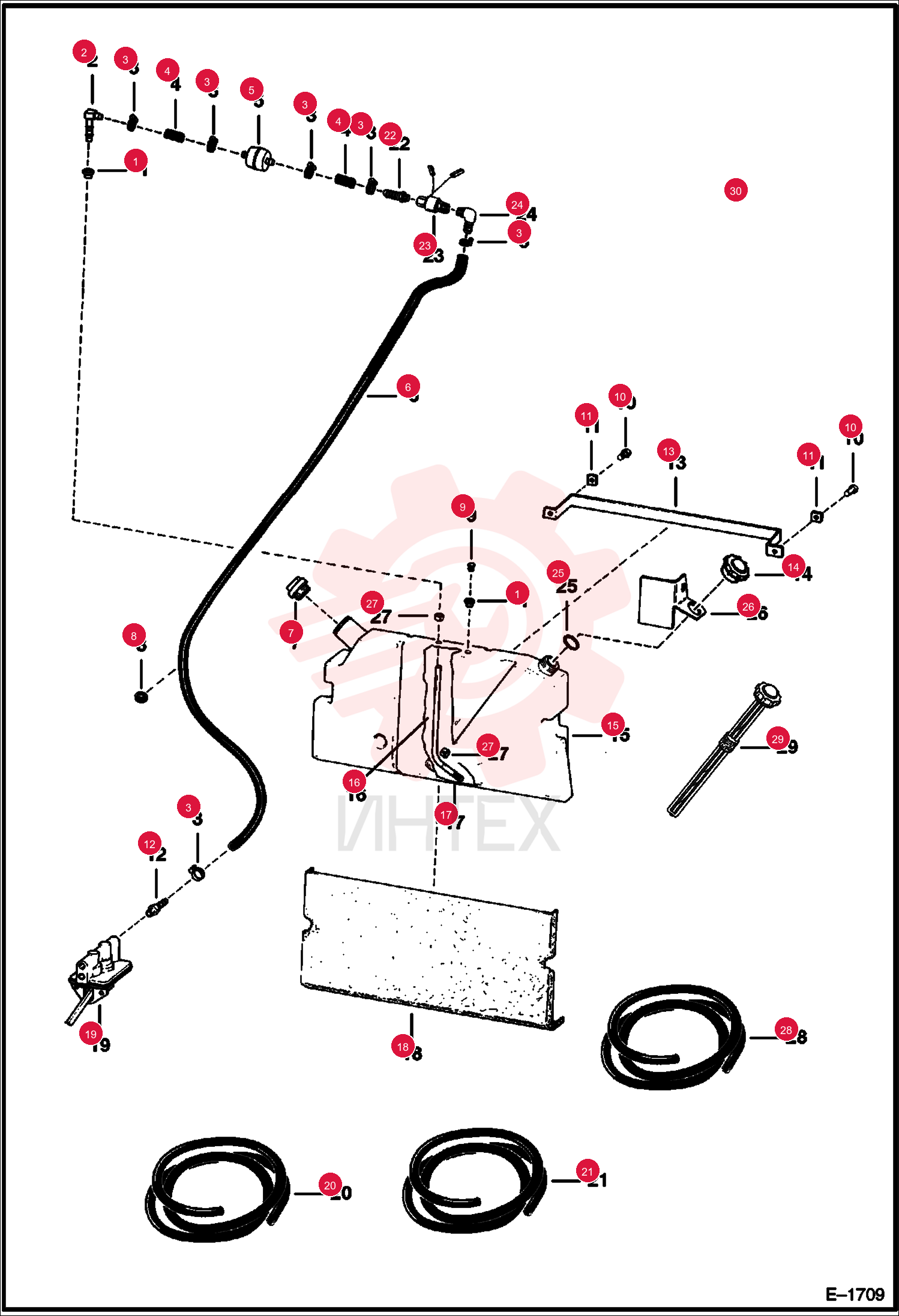

GROMMET 7273691 (2)

GROMMET 7273691 (2)

GROMMET 7273691 (2)

1 7273691

  • 7273691 - GROMMET
  • 0.375" ID - Was 6553411

2 6598908

  • 6598908 - ELBOW BARBED
  • Was 6681462

3 42HS04

  • 42HS04 - CLAMP HOSE TYPE M
  • Was 6515575

4 6511393

  • 6511393 - FILTER
  • FUEL

5 6662770

  • 6662770 - CAP
  • LOCK
  • locking - Code PK510 - Was 6661696

6 6587458

  • 6587458 - KEY CAP FUEL 2
  • Code PK510

7 6632468

  • 6632468 - FUEL CAP
  • Was 6555717

8 1023368

  • 1023368 - GROMMET

9 6599645

  • 6599645 - PLUG
  • STEEL

10 84G3716

  • 84G3716 - SCREW THD ROLLING TT

11 6559447

  • 6559447 - WASHER

12 6630064

  • 6630064 - CONNECTOR

13 6564037

  • 6564037 - BAND

14 6635885

  • 6635885 - CAP
  • See Service Letter Dated 24 July 1986

15 6733225

  • 6733225 - TANK
  • Was 6708327

16 6650239

  • 6650239 - SCREEN
  • FUEL PICKUP
  • Was 6598911

17 6564268

  • 6564268 - INSULATION

18 6655464

  • 6655464 - 6630063
  • Was 6630063

19 6577821

  • 6577821 - HOSE
  • BULK
  • sold per foot - Was 672221

20 6505813

  • 6505813 - ADAPTER

21 7024822

  • 7024822 - SOLENOID
  • FUEL
  • Was 6559117

22 6515156

  • 6515156 - ELBOW

23 25K60204

  • 25K60204 - O RING 10

24 6564038

  • 6564038 - MOUNT
  • VLV

25 6661213

  • 6661213 - RING
  • COMPRESSION

26 6569752

  • 6569752 - HOSE BULK/FT
  • sold per foot

27 6598910

  • 6598910 - GAUGE
  • FUEL
  • W/Gauge

28 7297009

  • 7297009 - KIT FUEL SCREEN PICKUP TUBE
  • W/Ref. 1
  • 17
  • 27
  • 28
