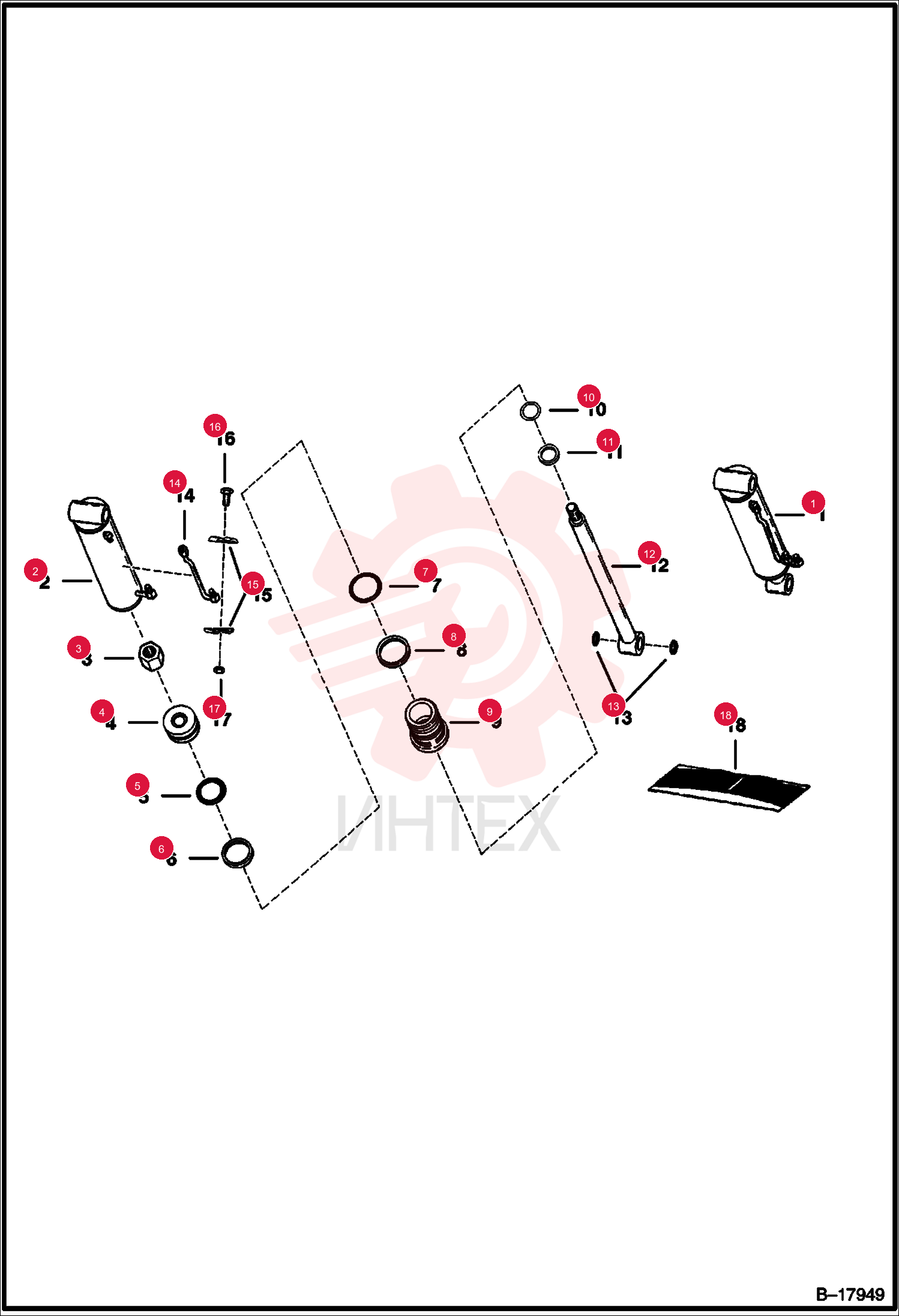

NUT 92D14 (2)

NUT 92D14 (2)

NUT 92D14 (2)

1 92D14

  • 92D14 - NUT
  • Was 86D000014B

2 6592573

  • 6592573 - PISTON

3 947088

  • 947088 - RING
  • BACK-UP

4 54K30218

  • 54K30218 - 0-RING
  • Was 25K30218

5 54K40224

  • 54K40224 - O-RING
  • Was 25K40224

6 73K232

  • 73K232 - RING
  • BACK-UP

7 6587744

  • 6587744 - HEAD
  • Was 6592572

8 6667324

  • 6667324 - SEAL

9 6665208

  • 6665208 - WIPER
  • ROD CYL

10 6592918

  • 6592918 - ROD
  • W/Ref. 13

11 1990599

  • 1990599 - GREASE SEAL

12 6592564

  • 6592564 - TUBE

13 6502426

  • 6502426 - CLAMP
  • Was 6552426

14 17C616

  • 17C616 - BOLT 5

15 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

16 7137944

  • 7137944 - SEAL KIT
  • Ref. 5-8
  • 10 & 11 - Was 6803334
