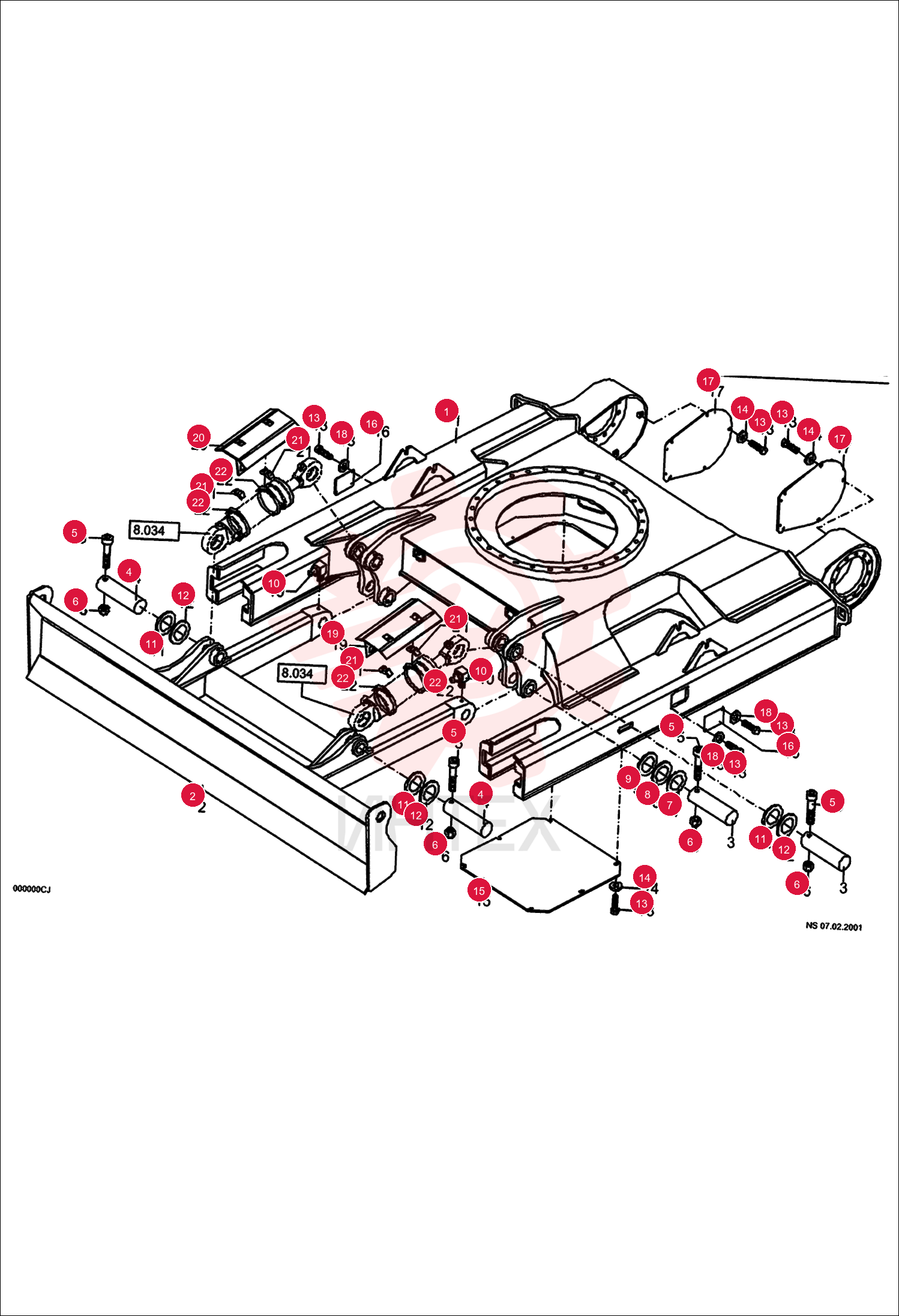

UNDERCARRIAGE 6190001005 (1)

UNDERCARRIAGE 6190001005 (1)

UNDERCARRIAGE 6190001005 (1)

1 6190001005

  • 6190001005 - UNDERCARRIAGE

2 0190002030

  • 0190002030 - SUPPORT BLADE
  • Was 6190002030

3 0205209021

  • 0205209021 - PIN
  • Was 6205209021

4 1045707631

  • 1045707631 - BOLT

5 1212251014

  • 1212251014 - NUT

6 0194019227

  • 0194019227 - WASHER

7 0194019025

  • 0194019025 - WASHER

8 0194002226

  • 0194002226 - WASHER

9 1608003010

  • 1608003010 - FITTING
  • GREASE

10 1309412434

  • 1309412434 - SHIM

11 1309412425

  • 1309412425 - SHIM

12 1008707018

  • 1008707018 - BOLT

13 1343707057

  • 1343707057 - WASHER

14 6190002011

  • 6190002011 - COVER

15 6189602020

  • 6189602020 - COVER RUNNING WHEE

16 6190002010

  • 6190002010 - COVER

17 1290707018

  • 1290707018 - WASHER

18 0190002055

  • 0190002055 - SHIELD
  • Was 6190002055

19 0190002051

  • 0190002051 - PROTECTION
  • Was 6190002051

20 0110012050

  • 0110012050 - RUBBER LAYER

21 5660095400

  • 5660095400 - HOSE CLIP
