Bobcat
/
751.0
/

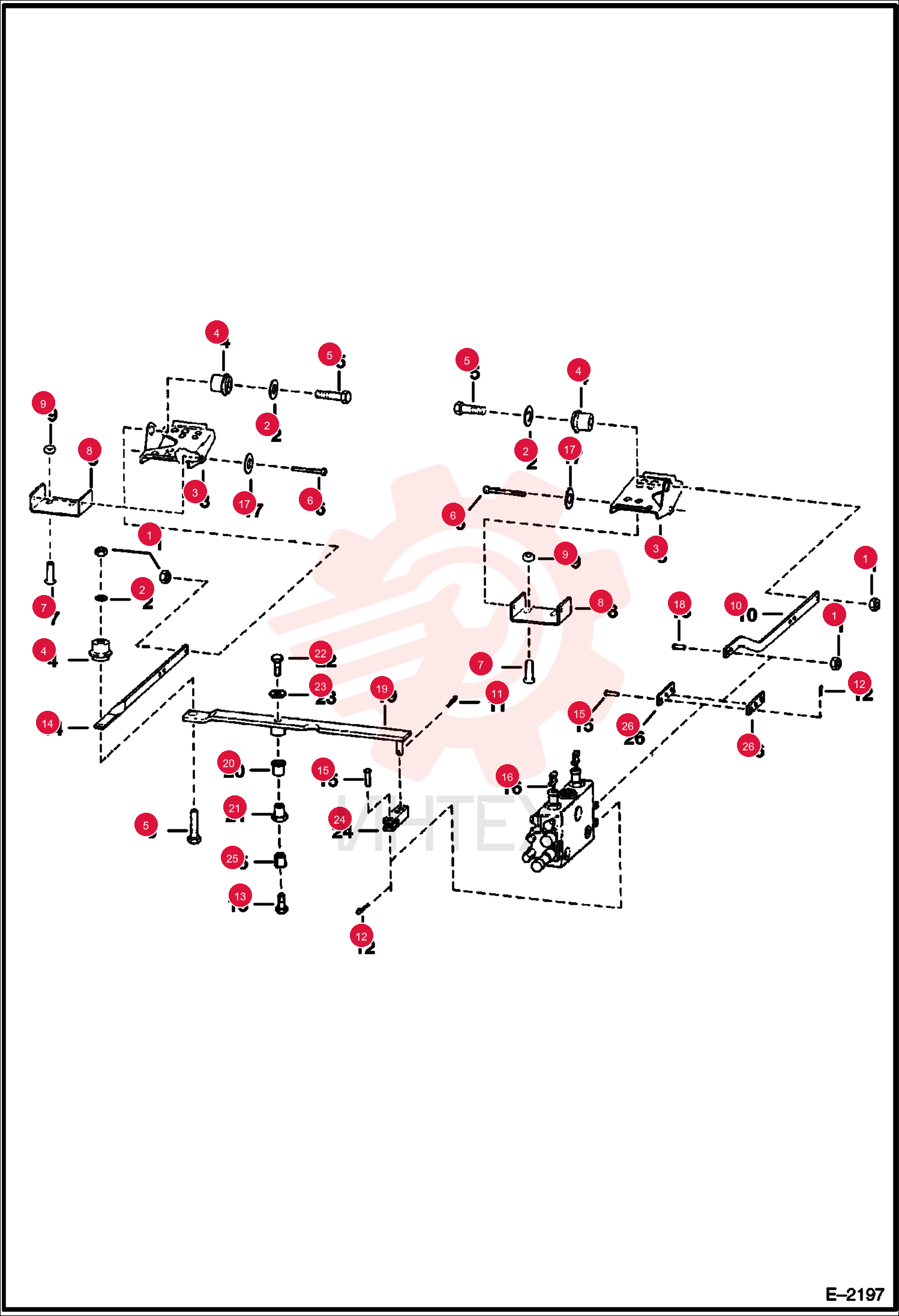

NUT HEXAGON 95D6 (1)

NUT HEXAGON 95D6 (1)

NUT HEXAGON 95D6 (1)

1 95D6

  • 95D6 - NUT HEXAGON
  • Was 91D000006B

2 6563914

  • 6563914 - WASHER

3 7115219

  • 7115219 - PEDAL
  • Was 6726680

4 6665701

  • 6665701 - BUSHING
  • PRESS FIT

5 17C624

  • 17C624 - BOLT 5

6 6564657

  • 6564657 - PIN

7 7C620

  • 7C620 - BOLT
  • Was 6704349

8 6726679

  • 6726679 - MOUNT
  • Was 6564658

9 57D6

  • 57D6 - NUT HEX FLNG GR8

10 6577813

  • 6577813 - LINK

11 1306637

  • 1306637 - PIN HAIR
  • cotter

12 6513495

  • 6513495 - PIN 5
  • cotter

13 6708009

  • 6708009 - LINK
  • Was 6706680

14 6576302

  • 6576302 - LINK

15 6564654

  • 6564654 - PIN
  • CLEVIS

16 25E21

  • 25E21 - WASHER FLAT PLAIN
  • Use if serrations on pins are too long

17 17C620

  • 17C620 - BOLT

18 6706103

  • 6706103 - LINK

19 6512026

  • 6512026 - BUSHING FLANGED

20 6706104

  • 6706104 - NUT RETAINER

21 17C612

  • 17C612 - SCREW HEX CAP

22 619021

  • 619021 - WASHER

23 6706105

  • 6706105 - YOKE

24 6544654

  • 6544654 - BUSHING
  • space

25 35C612

  • 35C612 - SCREW FLGD HEX CAP
  • Was 31C000612B
