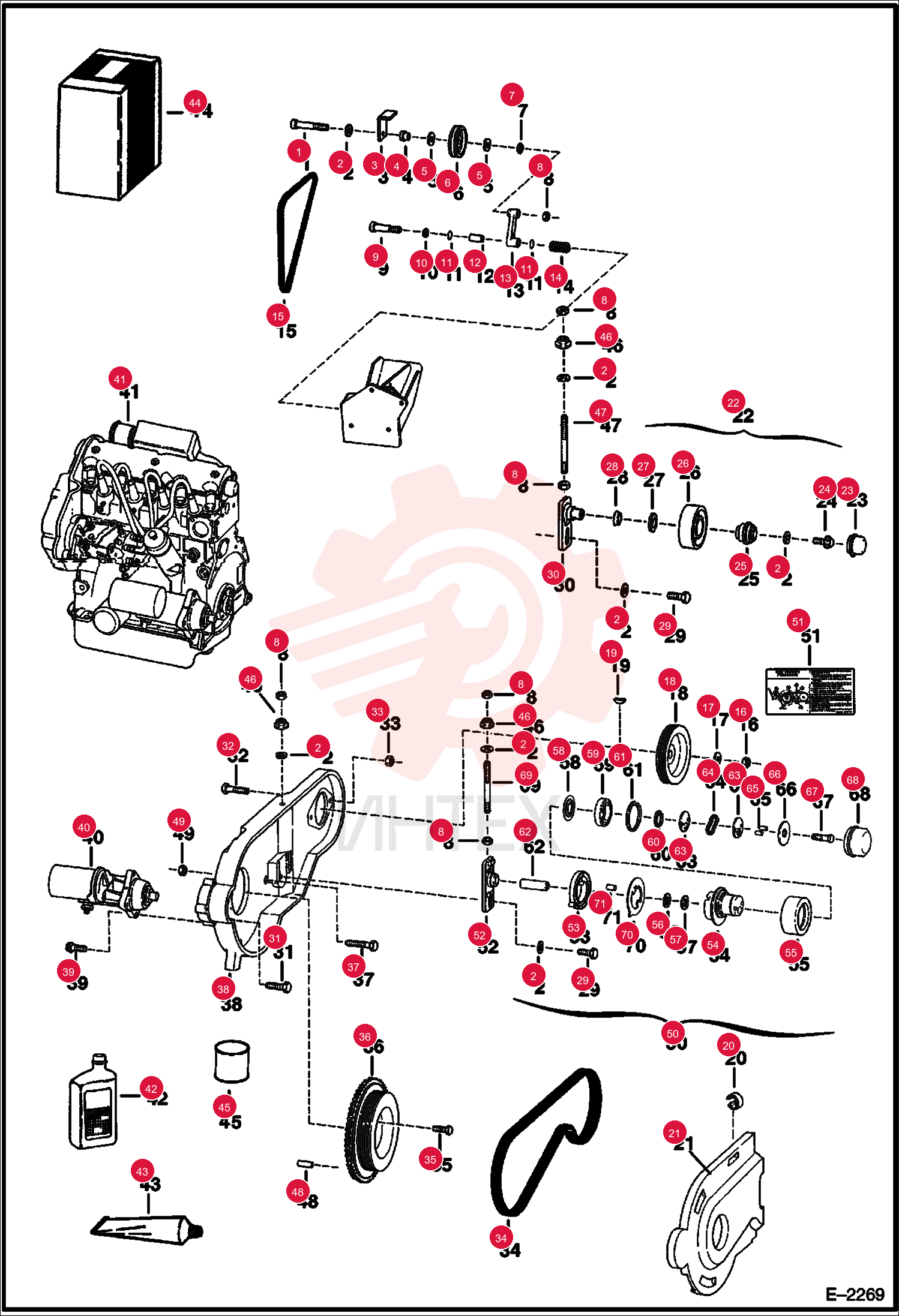

SCREW 73G656 (2)
1 73G656
- 73G656 - SCREW
2 6704484
- 6704484 - WASHER
- thrust
3 6702474
- 6702474 - RETAINER
- fan drive idler belt
4 6704443
- 6704443 - BUSHING
- spacer
5 6660995
- 6660995 - RING
- GREASE
- grease
6 6662997
- 6662997 - PULLEY
- FAN DRIVE IDLER
- fan drive idler
7 6704444
- 6704444 - WASHER
8 61D6
- 61D6 - NUT HEX FINISHED GR5
9 38C820
- 38C820 - SCREW
- shoulder
10 6655781
- 6655781 - BEARING
- THRUST
11 6704820
- 6704820 - O-RING
12 6670682
- 6670682 - BEARING
- Nylon
13 6725212
- 6725212 - ARM
- IDLER
- W/Ref. 12 - Was 6703507
14 6700722
- 6700722 - SPRING
15 6709135
- 6709135 - BELT
- FAN
- fan drive
16 92D12
- 92D12 - NUT 5
17 6576033
- 6576033 - WASHER 5
18 6708901
- 6708901 - PULLEY
- to hyd. pump
19 6682261
- 6682261 - KEY
- square key
20 6J807
- 6J807 - KEY
- WOODRUFF
21 6703022
- 6703022 - SPRING
- CLIP
22 6708993
- 6708993 - SHIELD
23 6660967
- 6660967 - CAP
- GREASE
- grease
24 35C612
- 35C612 - SCREW FLGD HEX CAP
25 6704416
- 6704416 - IDLER
- Idler - Also Order Ref. 44
26 6661066
- 6661066 - SEAL
27 6661070
- 6661070 - SLEEVE
- Wear - Also Order Ref. 27
28 17C620
- 17C620 - BOLT
29 1CM1045
- 1CM1045 - BOLT
30 17C828
- 17C828 - BOLT
- hyd pump mount
31 85D8
- 85D8 - NUT PRETRQ HEX LOCK
32 6667322
- 6667322 - BELT
- DRIVE
- pump drive
33 6709768
- 6709768 - FLYWHEEL
- assy.
34 6708185
- 6708185 - RING GEAR
35 1CM1070
- 1CM1070 - BOLT
36 6708764
- 6708764 - MOUNT
- ENG
37 35C620
- 35C620 - BOLT 5
38 6633583
- 6633583 - SEALANT
- POLYURETHANE 300 ML
- W/Ref. 23
- 28 & 30
39 6722248
- 6722248 - KIT
- REPAIR
- bearing - Ref. 23
- 25
- 27 & 28
40 7302291
- 7302291 - KIT
- BELT TENSIONER
- Ref. 1
- 3-11
- 13
- 14 & (1) 6700115 spring
41 6903122
- 6903122 - GREASE
- MULTI PURPOSE
- Used W/Ref. 50 - Was 6599719
42 57D6
- 57D6 - NUT HEX FLNG GR8
43 6708598
- 6708598 - ROD
44 6662353
- 6662353 - PIN
- CYC
45 4DM10
- 4DM10 - NUT HEX
46 6901216
- 6901216 - IDLER
- BELT DRIVE ASSY
- Spring Loaded - Ref. 52-68
- 70 & 71 - When Converting From A Fixed Idler Assy. To A Spring Loaded Idler Assy. It Is Necessary To Also Order Belt Tensioning Decal Ref. 51 & Threaded Rod Ref. 69 - Was 6711698
47 6714212
- 6714212 - PULLEY
- PUMP HYD IDLER
- Ref. 54-62
48 6711905
- 6711905 - DECAL
- belt tension
49 6735883
- 6735883 - BRACKET
- Was 6708767
50 6705491
- 6705491 - SPRING
- torsion
51 6711699
- 6711699 - HUB ASSEMBLY
52 6704391
- 6704391 - PULLEY
- idler
53 6685735
- 6685735 - SEAL
- Was 6661112
54 6703168
- 6703168 - BEARING
- thrust
55 6664209
- 6664209 - SEAL
56 6668114
- 6668114 - BEARING
- ball
57 6658536
- 6658536 - RING
- SNAP
58 6658847
- 6658847 - RING
- SNAP
59 6682442
- 6682442 - BEARING
- bronze sleeve - Was 6704393
60 6705231
- 6705231 - WASHER
61 6710585
- 6710585 - WASHER
- wave spring
62 6713370
- 6713370 - PIN
- ROLL
- Was 14J001808B
63 6705232
- 6705232 - WASHER
64 43C610
- 43C610 - SCREW HEX CAP
- pre-applied thread locker - Was 17C610
65 6708770
- 6708770 - CAP
- DUST
- dust
66 6708771
- 6708771 - ROD
- threaded - See Note - Was 6709771
