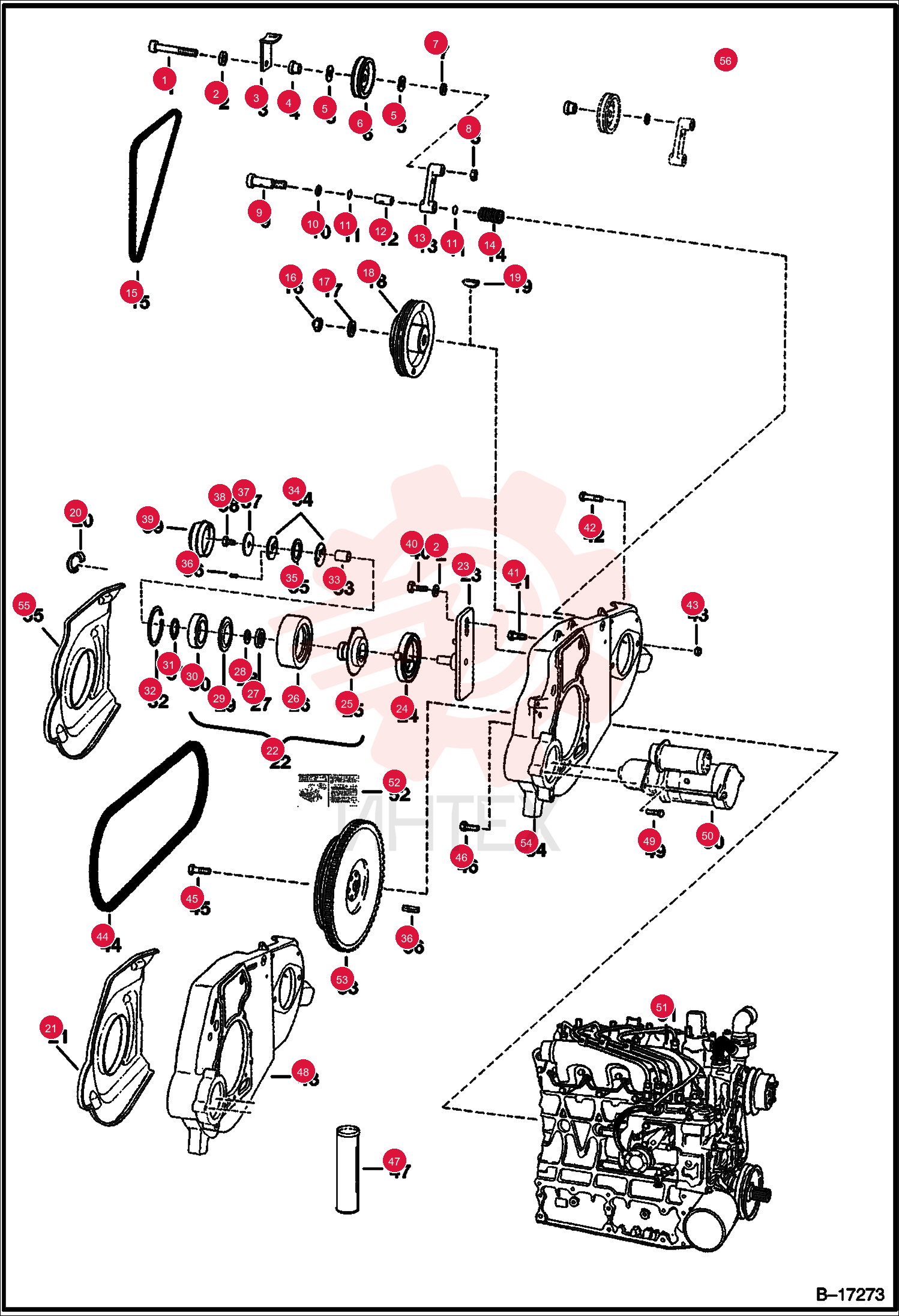

SCREW 73G656 (1)
1 73G656
- 73G656 - SCREW
2 6704484
- 6704484 - WASHER
- thrust
3 6702474
- 6702474 - RETAINER
- fan drive idler belt
4 6704443
- 6704443 - BUSHING
- spacer
5 6660995
- 6660995 - RING
- GREASE
- grease
6 6662997
- 6662997 - PULLEY
- FAN DRIVE IDLER
- fan drive idler
7 6704444
- 6704444 - WASHER
8 61D6
- 61D6 - NUT HEX FINISHED GR5
9 38C820
- 38C820 - SCREW
- shoulder
10 6655781
- 6655781 - BEARING
- THRUST
11 6704820
- 6704820 - O-RING
12 6670682
- 6670682 - BEARING
- nylon
13 6725212
- 6725212 - ARM
- IDLER
- W/Ref. 12 - Was 6703507
14 6700115
- 6700115 - SPRING
- TORSION
15 6669034
- 6669034 - BELT
- FAN
- fan - 41.3 in. (1049 mm) long
16 92D12
- 92D12 - NUT 5
17 6576033
- 6576033 - WASHER 5
18 6704424
- 6704424 - PULLEY
- PUMP HYD
- to hyd. pump
19 6682261
- 6682261 - KEY
- square key
20 6J807
- 6J807 - KEY
- WOODRUFF
21 6703022
- 6703022 - SPRING
- CLIP
22 6704450
- 6704450 - SHIELD
23 6735884
- 6735884 - IDLER
- BELT DRIVE ASSY
- spring loaded - Ref. 23-39 - Also Order Ref. 52 - Was 6711698
24 6735883
- 6735883 - BRACKET
- Was 6708767
25 6705491
- 6705491 - SPRING
- torsion
26 6711699
- 6711699 - HUB ASSEMBLY
- Order Ref. 22
27 6704391
- 6704391 - PULLEY
- idler
28 6685735
- 6685735 - SEAL
- Was 6661112
29 6703168
- 6703168 - BEARING
- thrust
30 6664209
- 6664209 - SEAL
31 6668114
- 6668114 - BEARING
- ball - Order Ref. 22
32 6658536
- 6658536 - RING
- SNAP
33 6658847
- 6658847 - RING
- SNAP
34 6682442
- 6682442 - BEARING
- bronze sleeve - Was 6704393
35 6705231
- 6705231 - WASHER
36 6710585
- 6710585 - WASHER
- wave spring
37 6713370
- 6713370 - PIN
- ROLL
- Was 14J001808B
38 6705232
- 6705232 - WASHER
39 43C610
- 43C610 - SCREW HEX CAP
- pre-applied thread locker - Was 17C610
40 6708770
- 6708770 - CAP
- DUST
- dust
41 17C620
- 17C620 - BOLT
42 6CM1230
- 6CM1230 - BOLT
43 17C828
- 17C828 - BOLT
- hyd pump mount
44 85D8
- 85D8 - NUT PRETRQ HEX LOCK
45 6667322
- 6667322 - BELT
- DRIVE
- pump drive - 3 groove
46 6672445
- 6672445 - BELT
- DRIVE
- pump drive - 3 groove
47 6598275
- 6598275 - BOLT
- Was 6652487
48 5CM1025
- 5CM1025 - SCREW FL THD HEX CAP
49 6903122
- 6903122 - GREASE
- MULTI PURPOSE
- Use W/Ref. 22 - Was 6599719
50 35C620
- 35C620 - BOLT 5
51 6709030
- 6709030 - DECAL
- belt tension - spring loaded idler
52 6510470
- 6510470 - ВЕНЕЦ МАХОВИКА
- BOBCAT
53 RG60000
- RG60000 - ВЕНЕЦ МАХОВИКА
- AUTOWELT
54 6715166
- 6715166 - FLYWHEEL
- W/Ring gear
55 6714430
- 6714430 - FLYWHEEL
- W/Ring gear
56 6726613
- 6726613 - MOUNT
- ENG
- Was 6728062
57 7109712
- 7109712 - SHIELD
- Was 6726938
58 7302291
- 7302291 - KIT
- BELT TENSIONER
- Ref. 1
- 3-11
- 13 & 14
