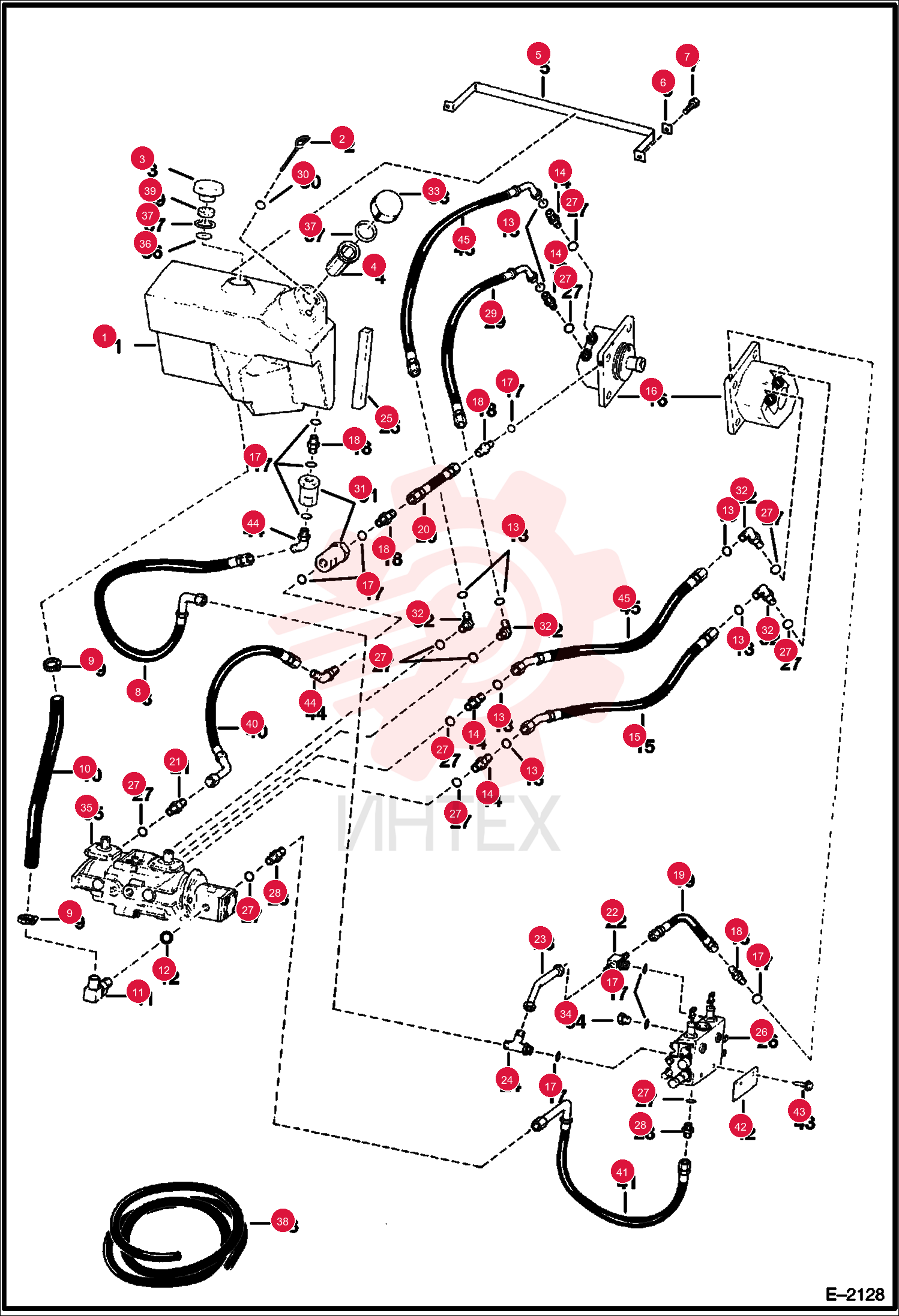

TANK 6706450 (1)
1 6706450
- 6706450 - TANK
- hydraulic - .93" (23
- 6 mm) I.D. Suction Outlet
2 6577459
- 6577459 - DIPSTICK
- W/Ref. 30
3 6577785
- 6577785 - CAP
- HYD BREATHER
- breather - Also Order Ref. 37 & 39 - Was 6727475
4 7120881
- 7120881 - SCREEN
- FILLER
- Was 6569219
5 6577585
- 6577585 - BAND
6 6559447
- 6559447 - WASHER
7 84G3712
- 84G3712 - SCREW THD ROLLING TT
8 6702079
- 6702079 - HOSE
9 44H16
- 44H16 - CLAMP
- Was 6666865
10 44H20
- 44H20 - CLAMP
- Was 6666864
11 6704617
- 6704617 - HOSE
- 1" (25
- 4 mm) I.D.
12 6716423
- 6716423 - HOSE
- 1.25" (31
- 8 mm) I.D. - Was 6706452
13 6714905
- 6714905 - ADAPTER
- W/Ref. 12 - 1.25" (31
- 8 mm) O.D. - Was 6707409
14 6567883
- 6567883 - ELBOW
- W/Ref. 12 - 1" (25
- 4 mm) O.D.
15 79K16
- 79K16 - O RING 10
16 58K018
- 58K018 - O-RING 10
17 52E1212
- 52E1212 - ADAPTER
- W/Ref. 27 - Was 52E000012B
18 6648636
- 6648636 - HOSE
19 79K6
- 79K6 - O RING 10
20 15K5
- 15K5 - FITTING
- W/Ref. 17
21 6579946
- 6579946 - HOSE
22 6704630
- 6704630 - HOSE
23 6578812
- 6578812 - ADAPTER
- W/Ref. 27
24 19K5
- 19K5 - FITTING
- W/Ref. 17
25 6577690
- 6577690 - TUBELINE
26 21K5
- 21K5 - TEE
- W/Ref. 17
27 79K12
- 79K12 - O RING 10
28 15K8
- 15K8 - FITTING
- W/Ref. 27
29 6661076
- 6661076 - HOSE
30 25K20010
- 25K20010 - O RING 10
31 6661022
- 6661022 - FILTER
- OIL HYD IN-LINE
32 6714902
- 6714902 - ELBOW
- W/Ref. 13 & 27 - Was 69E000012B
33 6728149
- 6728149 - CAP
- HYD NON VENTED
- fill - W/Ref. 37 - Was 6532508
34 24K8
- 24K8 - PLUG
35 6701552
- 6701552 - BAFFLE
36 6700631
- 6700631 - GASKET CAP TANK HYDR
37 6511855
- 6511855 - TAPE BULK/FT 25'
- self adhesive - sold per foot
38 6703427
- 6703427 - FOAM FLT5
39 6704631
- 6704631 - HOSE
40 6729154
- 6729154 - HOSE
- HYD ASSY
- Was 6714594
41 6727837
- 6727837 - COVER
- located outside of main frame - Was 6704680
42 84G3110
- 84G3110 - SCREW
43 18KB0606
- 18KB0606 - FITTING
- HYD ELBOW
- W/Ref. 17 - Was 18K5
44 6658365
- 6658365 - HOSE
