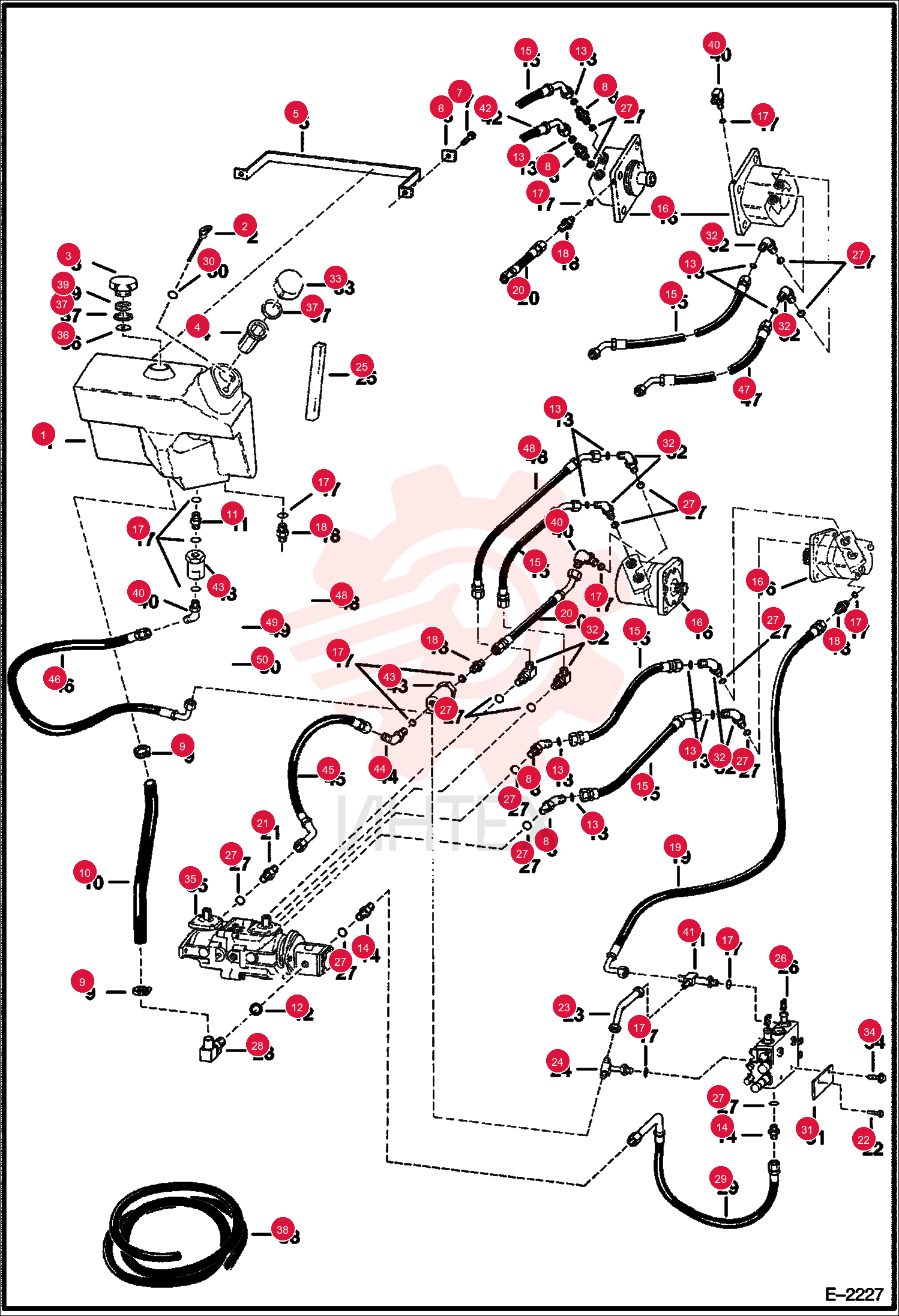

TANK 6706450 (2)
1 6706450
- 6706450 - TANK
- .93" I.D. Suction Outlet
2 6577459
- 6577459 - DIPSTICK
- W/Ref. 30
3 6577785
- 6577785 - CAP
- HYD BREATHER
- breather - Also Order Ref. 37 & 39 - Was 6727475
4 7120881
- 7120881 - SCREEN
- FILLER
- Was 6569219
5 6577585
- 6577585 - BAND
6 6559447
- 6559447 - WASHER
7 84G3712
- 84G3712 - SCREW THD ROLLING TT
8 52E1212
- 52E1212 - ADAPTER
- Was 52E000012B
9 44H20
- 44H20 - CLAMP
- worm gear - Was 6666864
10 5HM42
- 5HM42 - HOSE CLAMP
- constant tension
11 6672281
- 6672281 - CLAMP
- constant torque
12 6716423
- 6716423 - HOSE
- 1.25" (31
- 8 mm) I.D. - Was 6706452
13 6716473
- 6716473 - ADAPTER
- W/Ref. 17 - tapered boss face
14 97K6
- 97K6 - O-RING
- flared end
15 79K16
- 79K16 - O RING 10
- flat boss face
16 99K16
- 99K16 - O-RING
- tapered boss face
17 58K018
- 58K018 - O-RING 10
18 15K8
- 15K8 - FITTING
- W/Ref. 27 - flat boss face
19 15KB1212
- 15KB1212 - FITTING
- HYD CONNECTOR
- W/Ref. 27 - tapered boss face - Was 15KN00008B
20 97K12
- 97K12 - O-RING
- flared end
21 6658365
- 6658365 - HOSE
- 25" (635 mm) long
22 6671619
- 6671619 - HOSE
- 26.5" (673
- 1 mm) long
23 79K6
- 79K6 - O RING 10
- flat boss face
24 99K6
- 99K6 - O-RING
- tapered boss face
25 15KB0606
- 15KB0606 - FITTING
- HYD CONNECTOR
- W/Ref. 17 - flat boss face
26 15K5
- 15K5 - FITTING
- W/Ref. 17 - flat boss face
27 97K6
- 97K6 - O-RING
- flared end
28 6707234
- 6707234 - HOSE
- 13" (330
- 2 mm)
29 6617736
- 6617736 - HOSE
- 25" (635 mm)
30 6704630
- 6704630 - HOSE
- 6" (152
- 4 mm)
31 6578812
- 6578812 - ADAPTER
- W/Ref. 27 - flat boss face
32 97K6
- 97K6 - O-RING
- flared end
33 15KB0612
- 15KB0612 - FITTING
- HYD CONNECTOR
- W/Ref. 27 - flat boss face
34 17C532
- 17C532 - BOLT 5
- 5/32 dia.
35 17C632
- 17C632 - BOLT 5
- AHC - grade 8
36 6577690
- 6577690 - TUBELINE
37 6805696
- 6805696 - TEE
- W/Ref. 45 - W/flared end O-ring
38 97K6
- 97K6 - O-RING
- flared end
39 79K12
- 79K12 - O RING 10
- flat boss face
40 99K12
- 99K12 - O-RING
- tapered boss face
41 6714905
- 6714905 - ADAPTER
- W/Ref. 12 - flat boss face - Was 6707409
42 6715191
- 6715191 - ELBOW
- W/Ref. 12 - check boss face to determine correct replacement O-ring
43 6729154
- 6729154 - HOSE
- HYD ASSY
- Was 6714594
44 25K20010
- 25K20010 - O RING 10
45 6727837
- 6727837 - COVER
- located outside of main frame - Was 6704680
46 6714902
- 6714902 - ELBOW
- W/Ref. 27 - Was 69E000012B
47 6728149
- 6728149 - CAP
- HYD NON VENTED
- fill - Also Order Ref. 27 - Was 6532508
48 84G3110
- 84G3110 - SCREW
49 84G3710
- 84G3710 - SCREW
- AHC
50 6701552
- 6701552 - BAFFLE
51 6700631
- 6700631 - GASKET CAP TANK HYDR
52 6511855
- 6511855 - TAPE BULK/FT 25'
- self adhesive - sold per foot
53 6703427
- 6703427 - FOAM FLT5
54 97K6
- 97K6 - O-RING
- flared end
55 17KB0606
- 17KB0606 - FTG HYD 90 ELBOW
- tapered boss face - W/Ref. 17 - Was 17KV00005B
56 17K5
- 17K5 - ELBOW
- W/Ref. 17 - flat boss face
57 6805243
- 6805243 - FITTING ELBOW
- W/Ref. 17 - W/flared end O-rings
58 97K6
- 97K6 - O-RING
- flared end
59 6661076
- 6661076 - HOSE
- 24" (609
- 6 mm)
60 6661022
- 6661022 - FILTER
- OIL HYD IN-LINE
61 18KB0606
- 18KB0606 - FITTING
- HYD ELBOW
- W/Ref. 17 - flat boss face - Was 18K5
62 18KB0606
- 18KB0606 - FITTING
- HYD ELBOW
- W/Ref. 17 - tapered boss face - Was 18KV00005B
63 97K6
- 97K6 - O-RING
- flared end
64 6704631
- 6704631 - HOSE
65 6730769
- 6730769 - HOSE
- 14.5" (368
- 3 mm) long
66 6578327
- 6578327 - HOSE
- 22" (558
- 8)
67 6648636
- 6648636 - HOSE
- 26" (660
- 4 mm)
68 6715251
- 6715251 - HOSE
- 16.5" (419
- 1 mm)
69 6719211
- 6719211 - TUBE
- to hose from bleed manifold to hyd. tank
70 87F5
- 87F5 - FITTING
- Was 87FN00005B
