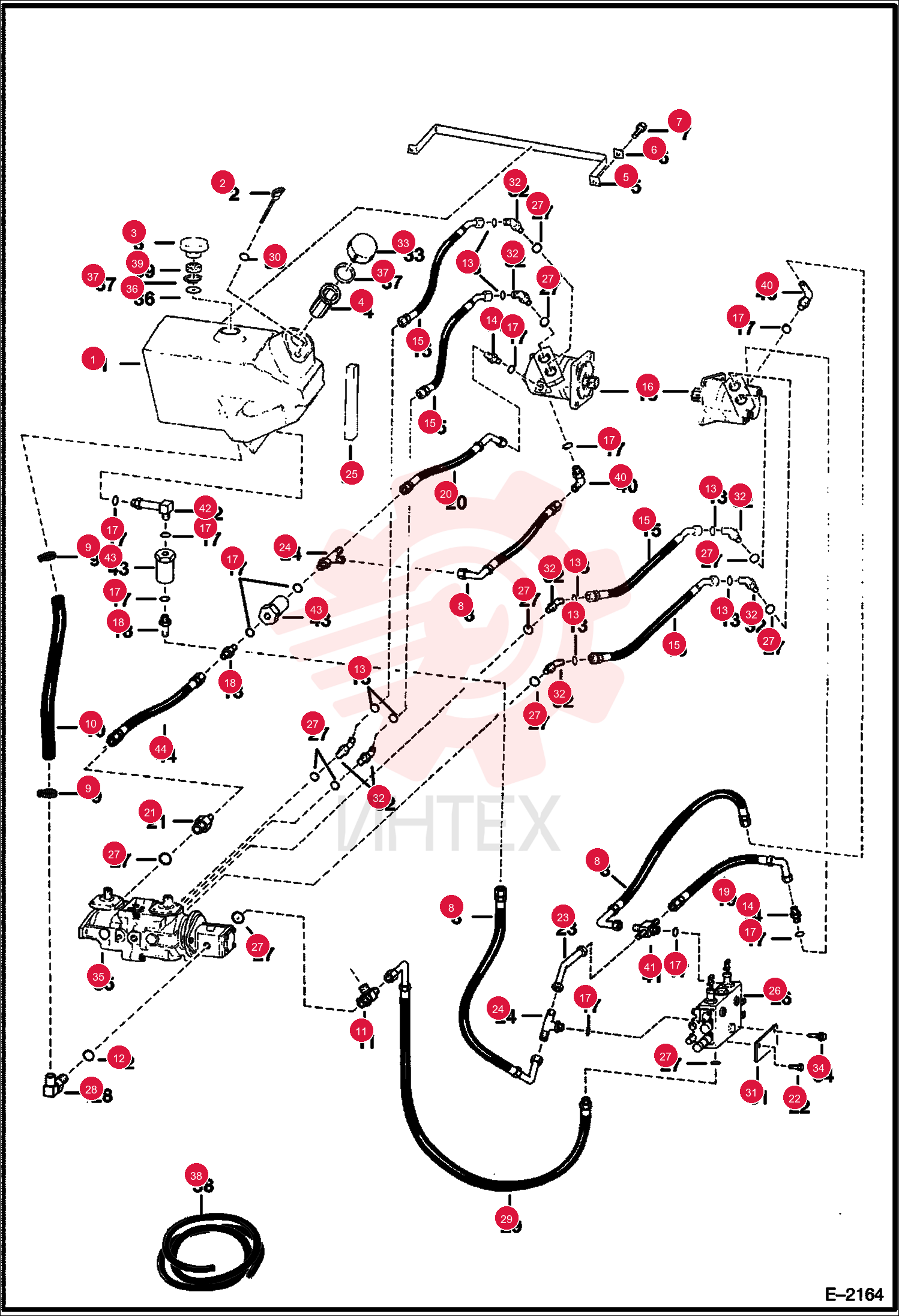

TANK, HYD 6706451
1 6706451
- 6706451 - TANK
- HYD
- .93 in. I.D. Suction Outlet
2 6577459
- 6577459 - DIPSTICK
- W/Ref. 30
3 6577785
- 6577785 - CAP
- HYD BREATHER
- breather - Also Order Ref. 37 & 39 - Was 6727475
4 7120881
- 7120881 - SCREEN
- FILLER
- Was 6569219
5 6702494
- 6702494 - BAND
6 6559447
- 6559447 - WASHER
7 84G3712
- 84G3712 - SCREW THD ROLLING TT
8 6578804
- 6578804 - HOSE
9 44H20
- 44H20 - CLAMP
- Was 6666864
10 6716423
- 6716423 - HOSE
- 1.25 in. (31
- 8 mm) I.D. - Was 6706452
11 6704693
- 6704693 - ADAPTER
- W/Ref. 27 - Check boss face to determine correct replacement o-ring
12 79K16
- 79K16 - O RING 10
13 58K018
- 58K018 - O-RING 10
14 6660443
- 6660443 - VALVE
- RELIEF
- 65 PSI
15 6658106
- 6658106 - HOSE
- HYD ASSY
16 79K6
- 79K6 - O RING 10
17 15K5
- 15K5 - FITTING
- W/Ref. 17
18 6578327
- 6578327 - HOSE
19 6700025
- 6700025 - HOSE
20 6578812
- 6578812 - ADAPTER
- W/Ref. 27
21 17C532
- 17C532 - BOLT 5
22 6577690
- 6577690 - TUBELINE
23 21K5
- 21K5 - TEE
- W/Ref. 17
24 79K12
- 79K12 - O RING 10
- flat boss face
25 99K12
- 99K12 - O-RING
- tapered boss face
26 6714905
- 6714905 - ADAPTER
- W/Ref. 12 - Was 6707409
27 6662867
- 6662867 - HOSE
- HYD ASSY
28 25K20010
- 25K20010 - O RING 10
29 6727837
- 6727837 - COVER
- located outside of main frame - Was 6704680
30 6714902
- 6714902 - ELBOW
- W/Ref. 27 - Was 69E000012B
31 6728149
- 6728149 - CAP
- HYD NON VENTED
- fill - W/Ref. 37 - Was 6532508
32 84G3110
- 84G3110 - SCREW
33 6701552
- 6701552 - BAFFLE
34 6700631
- 6700631 - GASKET CAP TANK HYDR
35 6511855
- 6511855 - TAPE BULK/FT 25'
- self adhesive - sold per foot
36 6703427
- 6703427 - FOAM FLT5
37 17K5
- 17K5 - ELBOW
- W/Ref. 17
38 6578209
- 6578209 - CONNECTOR
- W/Ref. 17
39 6558510
- 6558510 - ELBOW
- W/Ref. 17
40 6661022
- 6661022 - FILTER
- OIL HYD IN-LINE
41 6704787
- 6704787 - HOSE
