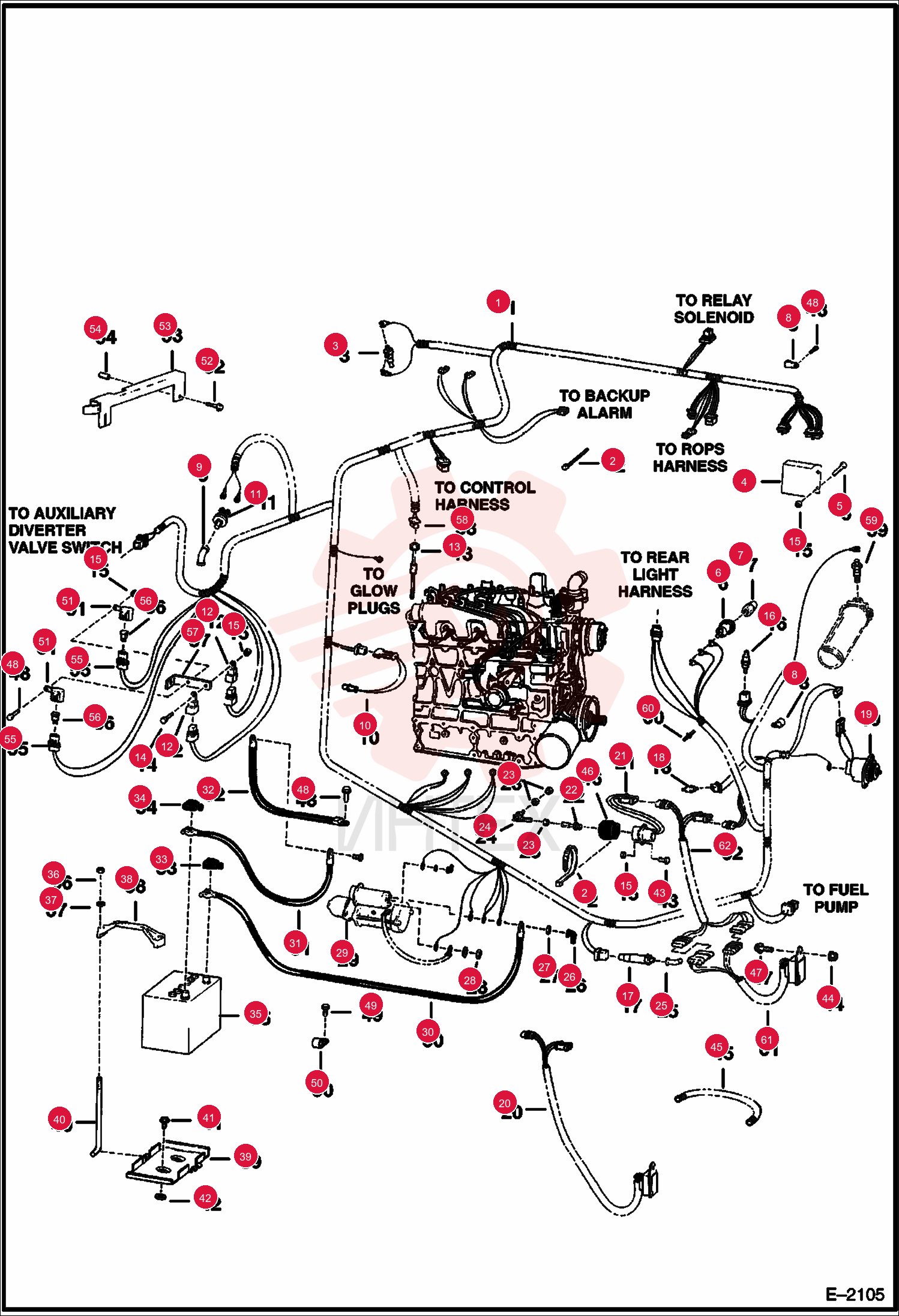

HARNESS, ENG 6705751 (2)
1 6705751
- 6705751 - HARNESS
- ENG
- engine - W/Ref. 51
- 55 & 56
2 6610510
- 6610510 - STRAP
- TIE 10
3 6648326
- 6648326 - SWITCH
- coolant level
4 6667828
- 6667828 - COMPUTER
- BOSS
- Initialized - Pre-programmed per Specific Machine - provide serial number to Bobcat Parts Customer Service Representative - Was 6661214
5 6666916
- 6666916 - COMPUTER
- BOSS
- Not Initialized - Programming by Dealer Required - Was 6722444
6 6666918
- 6666918 - COMPUTER
- BOSS
- Backup - Use as check tool when troubleshooting BOSS - Was 6661110
7 10C412
- 10C412 - BOLT
8 6655971
- 6655971 - SWITCH
- hyd. chg. press. - W/single pin threaded terminal
9 6661518
- 6661518 - SENSOR
- PRESS OIL HYD
- hyd. chg. press. - W/2 pin threaded terminal - W/High Horsepower Hydraulics option
10 6563920
- 6563920 - FILTER SNUBBER
11 6563922
- 6563922 - SNUBBER
- W/Filter
12 30H50
- 30H50 - CLAMP
13 6725502
- 6725502 - ELBOW
- Was 23F000001B
14 6684037
- 6684037 - SENSOR
- SPEED ENG
- r.p.m. - Was 6679853
15 6660316
- 6660316 - SENDOR
- vacuum
16 6651975
- 6651975 - SWITCH
- RELAY MAGNETIC
- relay
17 7297322
- 7297322 - SENSOR
- FUEL
- W/Gasket - Was 7216451
18 79K14
- 79K14 - O RING 10
- Was 25K040102B
19 45G1212
- 45G1212 - BOLT
20 50D12
- 50D12 - NUT
21 6654200
- 6654200 - SWITCH
- hydro. temp
22 6660204
- 6660204 - SENSOR
- PRESS OIL ENG
- eng. oil pressure
23 6654201
- 6654201 - SWITCH
- eng. temp.
24 6681513
- 6681513 - SOLENOID
- SHUTOFF FUEL
- fuel shut off - Was 6667993
25 6578366
- 6578366 - JOINT
- BALL
26 62D4
- 62D4 - NUT HEX FINISHED GR5
27 6578363
- 6578363 - ROD END
- swivel
28 6707040
- 6707040 - ELBOW 90 STREET PIPE
- Was 26F000001B
29 6560172
- 6560172 - COVER
30 4DM10
- 4DM10 - NUT HEX
31 4DM5
- 4DM5 - NUT HEXAGON M5
32 6564991
- 6564991 - CABLE
- POSITIVE
- pos. - W/30" (762 mm) of Ref. 45
33 6562905
- 6562905 - CABLE
- ground - W/Ref. 34
34 6565170
- 6565170 - CABLE
- neg
35 2356058
- 2356058 - BOOT
36 6599652
- 6599652 - BOOT
37 7269857
- 7269857 - BATTERY WET 1000 CCA
- - Was 6665032
38 6630153
- 6630153 - CAP
39 59D5
- 59D5 - NUT LOCK HEX PT
40 25E15
- 25E15 - WASHER FLAT PLAIN
41 6569203
- 6569203 - CLAMP BATTERY
42 6712536
- 6712536 - BATTRYPAN
- Was 6577809
43 6576280
- 6576280 - BOLT BENT
44 84G3716
- 84G3716 - SCREW THD ROLLING TT
45 6555455
- 6555455 - WASHER
46 17C408
- 17C408 - BOLT
47 83D5
- 83D5 - LKNUT HEX FLG GR8
48 6563505
- 6563505 - CONDUIT
- bulk - sold per foot
49 6664286
- 6664286 - BOOT
- Also Order Ref. 2
50 35C516
- 35C516 - SCREW HEX HD W/F GR5
51 84G3712
- 84G3712 - SCREW THD ROLLING TT
52 1CM1220
- 1CM1220 - BOLT
53 30H48
- 30H48 - CLIP
54 6657306
- 6657306 - CAP
- FUSE
55 35C624
- 35C624 - SCREW FLGD HEX CAP
56 6700464
- 6700464 - COVER
- harness
57 6700416
- 6700416 - SPACER
58 6657305
- 6657305 - HOLDER
- fuse
59 6702444
- 6702444 - FUSE 25A 5
60 6702650
- 6702650 - MOUNT FUSE
61 6646383
- 6646383 - CONNECTOR
- fuel sender
62 6632946
- 6632946 - TERMINAL
- female
63 6660260
- 6660260 - SWITCH
- PRESS OIL HYD
- filter
64 3675725
- 3675725 - DIODE
65 6669415
- 6669415 - TIMER
- SOLENOID
66 6702444
- 6702444 - FUSE 25A 5
- 25 amp - Was 6670808
67 6713879
- 6713879 - HARNESS
- 16" (406
- 4 mm) long
