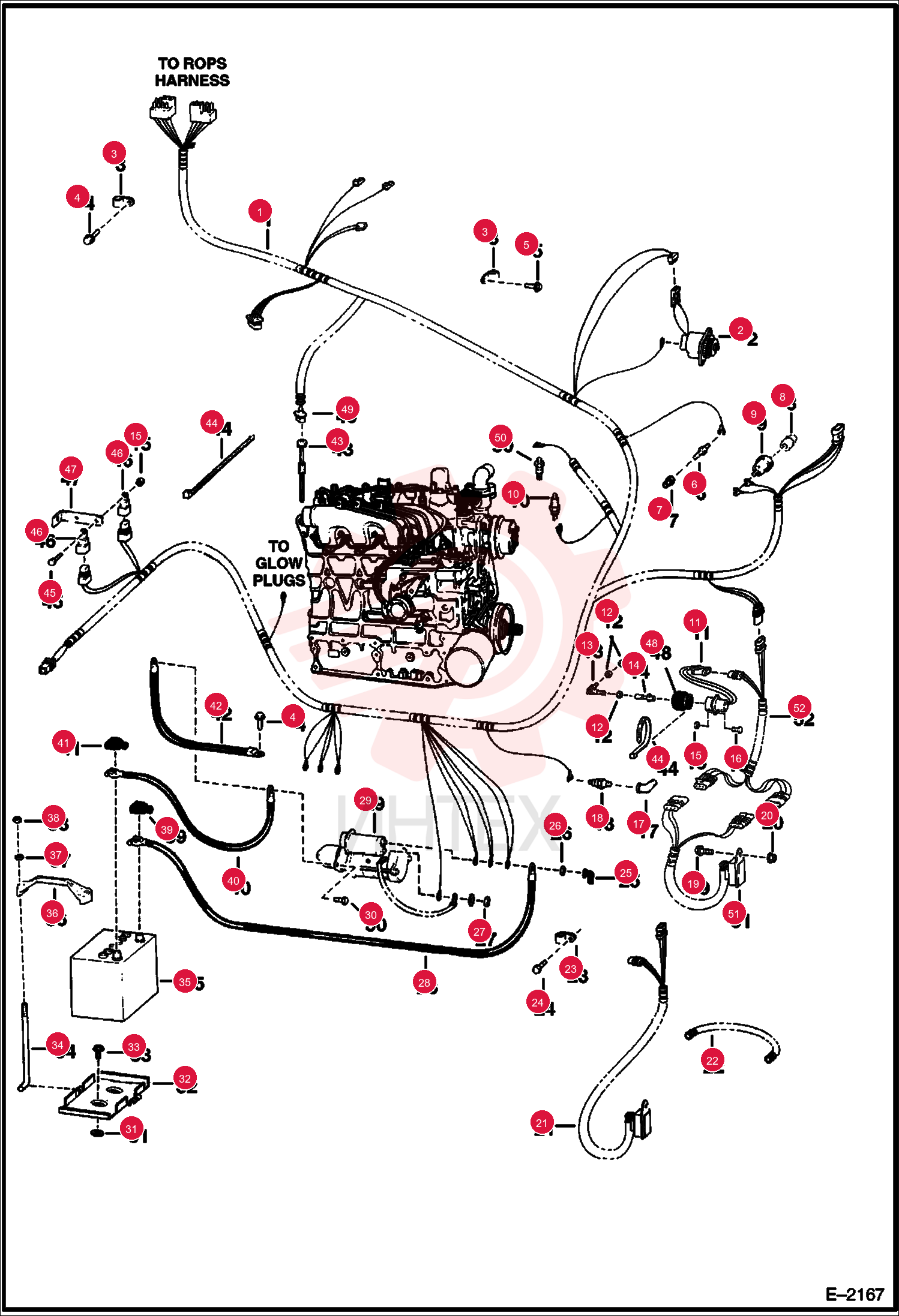

HARNESS, ENG 6706024 (2)
1 6706024
- 6706024 - HARNESS
- ENG
- engine
2 30H50
- 30H50 - CLAMP
3 84G3712
- 84G3712 - SCREW THD ROLLING TT
4 35C608
- 35C608 - BOLT
5 6658818
- 6658818 - SENDER TEMP
- eng temp - threaded connector
6 19F4
- 19F4 - BUSHING
- sender - Was 6564767
7 6563922
- 6563922 - SNUBBER
- W/Filter
8 6563920
- 6563920 - FILTER SNUBBER
9 6671062
- 6671062 - SWITCH
- PRESS OIL HYD
- hyd. chg. press. - Was 6664577
10 7251584
- 7251584 - SWITCH
- TEMP
- hyd temp - Was 6632633
11 6681513
- 6681513 - SOLENOID
- SHUTOFF FUEL
- fuel shut off - Was 6667993
12 62D4
- 62D4 - NUT HEX FINISHED GR5
13 6578363
- 6578363 - ROD END
- swivel
14 6578366
- 6578366 - JOINT
- BALL
15 50D12
- 50D12 - NUT
16 17C408
- 17C408 - BOLT
17 6707040
- 6707040 - ELBOW 90 STREET PIPE
- Was 26F000001B
18 6631010
- 6631010 - SWITCH
- PRESS OIL ENG
- eng. oil press.
19 35C516
- 35C516 - SCREW HEX HD W/F GR5
20 83D5
- 83D5 - LKNUT HEX FLG GR8
21 6563505
- 6563505 - CONDUIT
- bulk - sold per foot
22 30H48
- 30H48 - CLIP
23 1CM1220
- 1CM1220 - BOLT
24 6560172
- 6560172 - COVER
25 4DM10
- 4DM10 - NUT HEX
26 4DM5
- 4DM5 - NUT HEXAGON M5
27 6564991
- 6564991 - CABLE
- POSITIVE
- pos. - W/30" (762 mm) of Ref. 22
28 35C620
- 35C620 - BOLT 5
29 6555455
- 6555455 - WASHER
30 6712536
- 6712536 - BATTRYPAN
- Was 6577809
31 84G3716
- 84G3716 - SCREW THD ROLLING TT
32 6576280
- 6576280 - BOLT BENT
33 7269857
- 7269857 - BATTERY WET 1000 CCA
- - Was 6665032
34 6630153
- 6630153 - CAP
35 6569203
- 6569203 - CLAMP BATTERY
36 25E15
- 25E15 - WASHER FLAT PLAIN
37 59D5
- 59D5 - NUT LOCK HEX PT
38 2356058
- 2356058 - BOOT
39 6562905
- 6562905 - CABLE
- ground
40 6599652
- 6599652 - BOOT
41 6565170
- 6565170 - CABLE
- neg
42 79K14
- 79K14 - O RING 10
- Was 25K040102B
43 7297322
- 7297322 - SENSOR
- FUEL
- W/Gasket - Was 7216451
44 6610510
- 6610510 - STRAP
- TIE 10
45 45G1212
- 45G1212 - BOLT
46 6651975
- 6651975 - SWITCH
- RELAY MAGNETIC
- relay
47 6702650
- 6702650 - MOUNT FUSE
48 6664286
- 6664286 - BOOT
- Also Order Ref. 44
49 6646383
- 6646383 - CONNECTOR
- fuel sender
50 6632946
- 6632946 - TERMINAL
- female
51 6632053
- 6632053 - SWITCH
- filter
52 6669415
- 6669415 - TIMER
- SOLENOID
53 6702444
- 6702444 - FUSE 25A 5
- 25 amp - Was 6670808
54 6713879
- 6713879 - HARNESS
- 16" (406
- 4 mm) long
