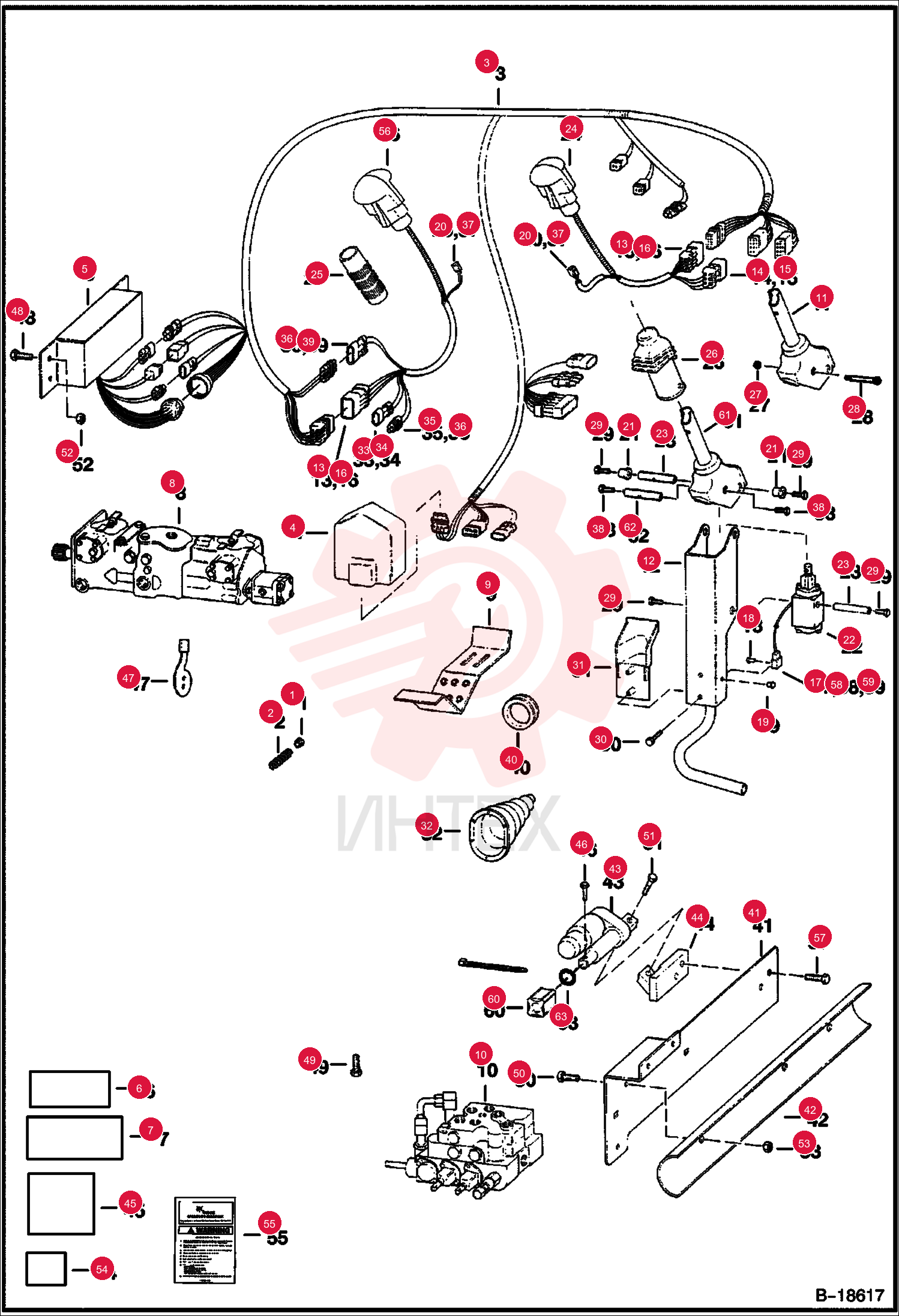

GUIDE 6571991
1 6571991
- 6571991 - GUIDE
2 6572026
- 6572026 - SPRING
3 6710418
- 6710418 - HARNESS
- for standard machines
4 6716541
- 6716541 - HARNESS
- for high flow
5 6717569
- 6717569 - DIODE
- 6 amp
6 6674225
- 6674225 - CONTROLLER
- BICS - Was 6672801
7 6675129
- 6675129 - CONTROLLER
- AHC
- AHC - Was 6674211
8 6715940
- 6715940 - DECAL
- operation
9 6715941
- 6715941 - DECAL
- warning
10 6673915
- 6673915 - PUMP
- M46
11 6712365
- 6712365 - STEP
12 6597776
- 6597776 - LEVER
- LH
13 6597775
- 6597775 - LEVER
- RH
14 6640696
- 6640696 - CONNECTOR
- 8 pin
15 6641173
- 6641173 - CONNECTOR
- 6-pin
16 6641181
- 6641181 - LOCK
- 6-pin
17 6661183
- 6661183 - LOCK
18 6665000
- 6665000 - BRACKET MOUNTING
19 6665321
- 6665321 - RIVET PLASTIC MALE
- male
20 6665322
- 6665322 - RIVET PLASTIC FEMALE
- female
21 6670707
- 6670707 - CONNECTOR
- 3 pin
22 6702990
- 6702990 - BUSHING
23 6713043
- 6713043 - SPACER
24 6680459
- 6680459 - HNDL/TILT AHC
- R.H. - Was 6675515
25 6702621
- 6702621 - HANDLE GRIP
26 6680471
- 6680471 - BOOT
- Was 6713898
27 12D10
- 12D10 - NUT
- std.
28 6716826
- 6716826 - BOLT
- Use W/Ref. 11
29 25GT410
- 25GT410 - SCREW
30 6669224
- 6669224 - TAP SCREW
31 6715957
- 6715957 - COVER
32 6532127
- 6532127 - BOOT AND PLATE ASSY
33 6640699
- 6640699 - CONNECTOR METRI PACK
34 6640700
- 6640700 - LOCK METRI PACK
35 6641178
- 6641178 - CONNECTOR METRI PACK
- 2-pin
36 6641180
- 6641180 - LOCK METRI PACK
- Use W/ 2-pin connector
37 6670711
- 6670711 - LOCK
38 6727065
- 6727065 - SCREW
- button head - 10-24UNC
39 6641179
- 6641179 - CONNECTOR METRI PACK
- 2-pin
40 6714726
- 6714726 - PLUG
41 6715266
- 6715266 - MOUNT
- actuator - Was 6717567
42 6715267
- 6715267 - BRACE
43 7104842
- 7104842 - ACTUATOR
- direct mount - W/Ref. 63
44 6717567
- 6717567 - MOUNT
- actuator
45 6715991
- 6715991 - DECAL
- fuse - AHC
46 6716052
- 6716052 - PIN
47 6717393
- 6717393 - LEVER
- throttle - Was 6716104
48 17C412
- 17C412 - BOLT 5
49 17C612
- 17C612 - SCREW HEX CAP
50 37C512
- 37C512 - BOLT SQ NECK RND HD
51 38C606
- 38C606 - BOLT
52 61D4
- 61D4 - NUT 5
53 85D5
- 85D5 - NUT PRETRQ HEX LOCK
54 6715944
- 6715944 - DECAL
55 6708158
- 6708158 - HANDBOOK
- OPERATOR'S W/WIRE ROPE
- AHC
56 6680463
- 6680463 - HANDLE
- L.H. - Was 6713262
57 6680447
- 6680447 - DECAL
- Was 6677370
58 6717378
- 6717378 - BOLT
59 6670706
- 6670706 - CONNECTOR
60 6670710
- 6670710 - PLUG
61 6664286
- 6664286 - BOOT
- Was 6675280
62 6729594
- 6729594 - HANDLE
- RH
63 6729595
- 6729595 - HANDLE
- LH
64 6680469
- 6680469 - SPACER
- threaded on both ends - Use W/Ref. 61 - Was 6729600
65 58K120
- 58K120 - O-RING
- Use W/Ref. 43 (7104842 actuator)
