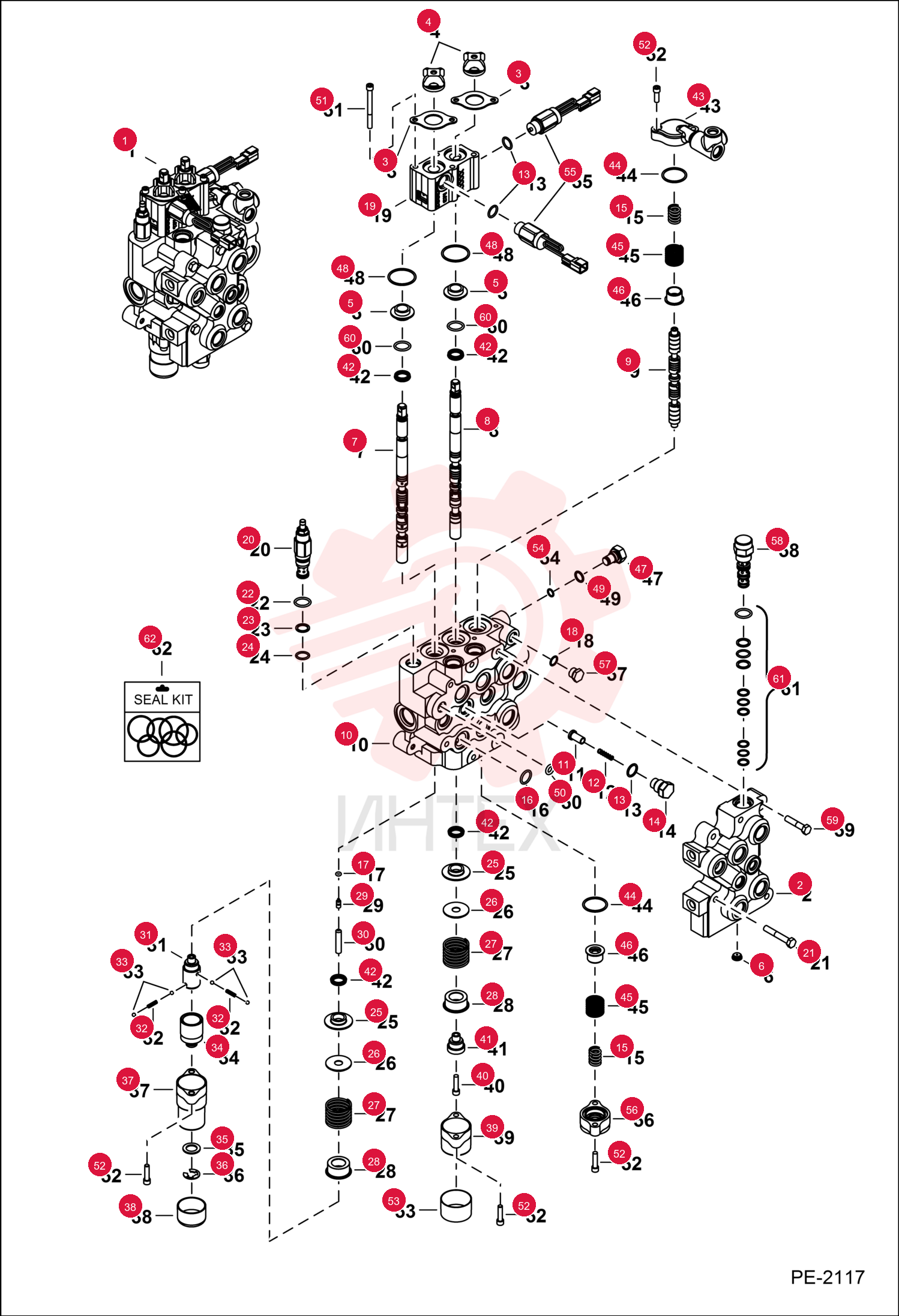

RETAINER 6589564 (2)
1 6589564
- 6589564 - RETAINER
2 6587763
- 6587763 - BOOT
3 7202038
- 7202038 - BUSHING
- ALIGNMENT
- Also Order 82K019 alignment O-ring - Was 6805102
4 6668791
- 6668791 - ORIFICE
5 6814511
- 6814511 - SPOOL
- LIFT
6 6815152
- 6815152 - SPOOL
- TILT
7 7300937
- 7300937 - SPOOL AUX
- auxiliary - Was 6588074
8 6592115
- 6592115 - SEAT
- load check
9 6592117
- 6592117 - SPRING
- LOAD CHECK
10 79K8
- 79K8 - O RING 10
11 6592116
- 6592116 - NUT
- load check
12 6595131
- 6595131 - SPRING
- .72'' OD
13 55K212
- 55K212 - O RING 10
14 54K20002
- 54K20002 - O'RING 10
15 95K6
- 95K6 - O'RING
16 6812031
- 6812031 - SPOOL LOCK BLOCK
- lift and tilt lock
17 7219324
- 7219324 - VALVE
- RELIEF
- W/ O-rings - pressure to be set in field - Was 6686360
18 6632279
- 6632279 - KIT
- SEAL
- main relief - Ref. 22-24
19 43C524
- 43C524 - BOLT
20 6665569
- 6665569 - RING
- BACK-UP
- back-up
21 58K017
- 58K017 - O-RING 10
22 6665570
- 6665570 - CLYD RING
- glide
23 25K20016
- 25K20016 - O RING 10
24 6595663
- 6595663 - BUSHING
25 7211397
- 7211397 - WASHER
- SPRING
- Was 6587523
26 6587580
- 6587580 - SPRING
27 6592100
- 6592100 - COLLAR
28 6596807
- 6596807 - PLUG
- plastic - 0.46" long
29 6586918
- 6586918 - SCREW
- DETENT
30 6587575
- 6587575 - ADAPTER
31 6592107
- 6592107 - SPRING
- DETENT 5
32 6592105
- 6592105 - BALL 5
33 6531270
- 6531270 - SLEEVE
- DETENT
34 6592098
- 6592098 - WASHER
35 799119
- 799119 - RING
36 6589226
- 6589226 - COVER
- END
- 0.63" flange
37 6660644
- 6660644 - CAP
38 7101345
- 7101345 - BONNET
- DETENT HYD VALVE
39 30G416
- 30G416 - BOLT
40 6592109
- 6592109 - ADAPTER
41 6683274
- 6683274 - SEAL
- SPOOL 10
42 6805651
- 6805651 - AUX BLOCK
- aux
43 58K124
- 58K124 - O RING 10
44 6596332
- 6596332 - SPRING
45 7108780
- 7108780 - SLEEVE
- Was 6595951
46 6806561
- 6806561 - PLUG W/SEALS
- aux lock - W/Ref. 49 & 54
47 1K127
- 1K127 - O-RING 10
- Was 93K127
48 79K7
- 79K7 - O RING 10
49 55K204
- 55K204 - O RING 10
50 29G444
- 29G444 - BOLT
51 29G416
- 29G416 - BOLT
- 1" long
52 6662848
- 6662848 - CAP
53 25K20012
- 25K20012 - O RING 10
54 6676029
- 6676029 - SOLENOID
- LOCK SPOOL
- 127 mm (5") wire - W/Ref. 13 - 3-pin connector - Order for production valve
55 6588781
- 6588781 - END CAP
56 6812171
- 6812171 - PLUG
- W/Ref. 18
57 6689739
- 6689739 - VALVE
- pilot operated - Was 6668765
58 43C532
- 43C532 - BOLT
59 82K019
- 82K019 - O-RING
- alignment
60 6690431
- 6690431 - KIT
- SEAL
- Was 6669734
61 6816253
- 6816253 - KIT
- SEAL
- complete - Ref. 4
- 13
- 16
- 20
- 21-24
- 42
- 44
- & 48-52
62 6816252
- 6816252 - SEAL KIT
- spool
63 6809425
- 6809425 - SEAL KIT
- upper deck
64 6586459
- 6586459 - SEAL KIT
65 6690431
- 6690431 - KIT
- SEAL
- Was 6669734
