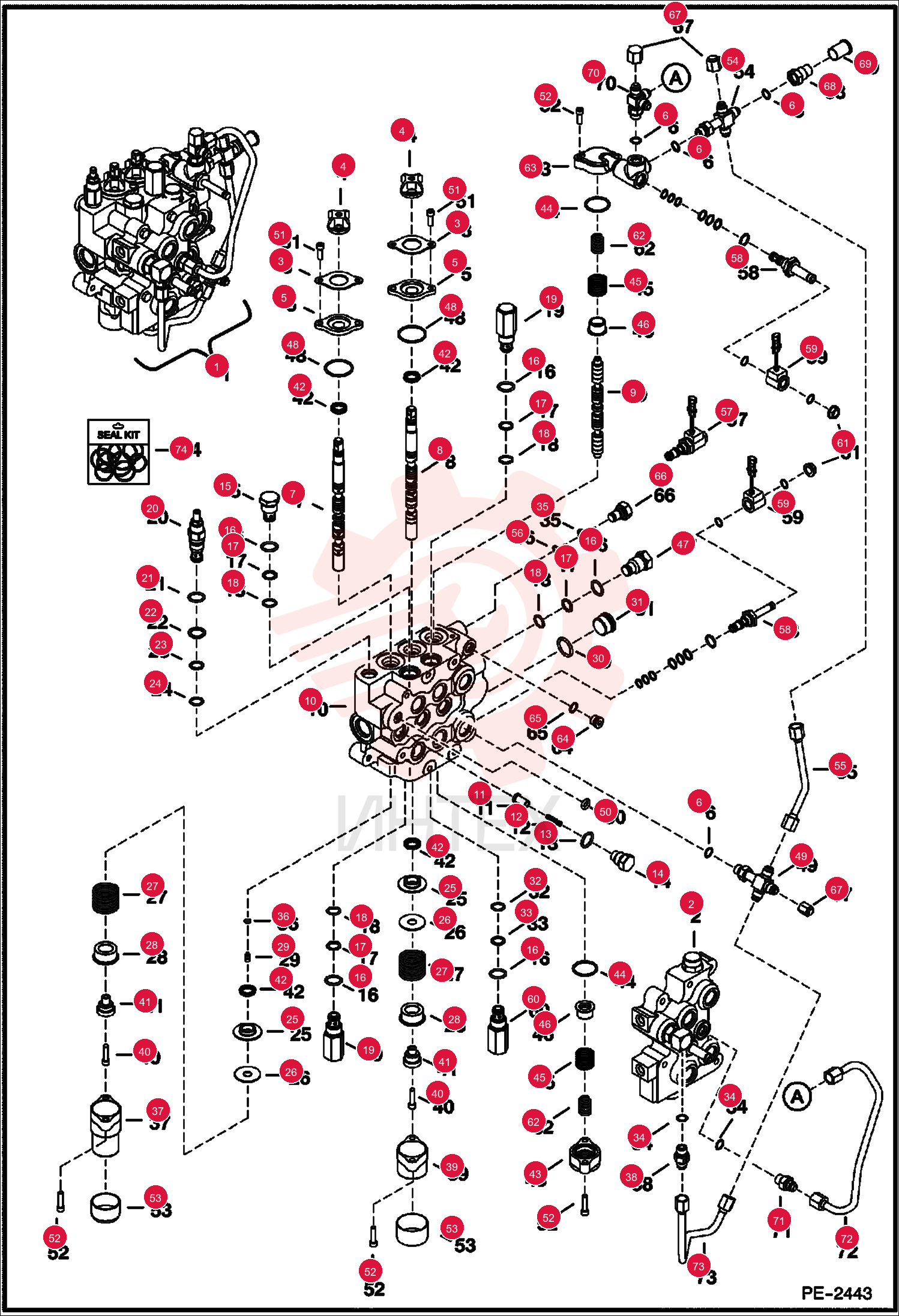

RETAINER 6589564 (9)
1 6589564
- 6589564 - RETAINER
2 6587763
- 6587763 - BOOT
3 6589565
- 6589565 - SEAL
4 79K6
- 79K6 - O RING 10
5 7108251
- 7108251 - SPOOL
- LIFT
6 7108242
- 7108242 - SPOOL
- TILT
7 7300937
- 7300937 - SPOOL AUX
- auxiliary - Was 6588074
8 6592115
- 6592115 - SEAT
- load check
9 6592117
- 6592117 - SPRING
- LOAD CHECK
10 79K8
- 79K8 - O RING 10
11 6592116
- 6592116 - NUT
- load check - W/Ref. 13
12 6667549
- 6667549 - VALVE
- CHECK
- anti-cavity check - W/Ref. 16-18
13 79K10
- 79K10 - O RING 10
14 80K14
- 80K14 - BKUP WSH5
- Was 73K000014B
15 6677106
- 6677106 - O-RING
- back-up washer not required
16 6679757
- 6679757 - VALVE
- RELIEF
- port relief - W/Ref. 16-18 - 4000 PSI
17 7219324
- 7219324 - VALVE
- RELIEF
- W/ O-rings - pressure to be set in field - Was 6686360
18 58K017
- 58K017 - O-RING 10
19 6665569
- 6665569 - RING
- BACK-UP
- back-up
20 25K20016
- 25K20016 - O RING 10
21 6665570
- 6665570 - CLYD RING
- glide
22 6595663
- 6595663 - BUSHING
23 7211397
- 7211397 - WASHER
- SPRING
- Was 6587523
24 6587580
- 6587580 - SPRING
25 6592100
- 6592100 - COLLAR
26 6801167
- 6801167 - SPOOLPLUG
- plastic - 0.69" long
27 95K12
- 95K12 - O-RING
28 24K8
- 24K8 - PLUG
- W/Ref. 30 - socket head
29 79K6
- 79K6 - O RING 10
30 79K7
- 79K7 - O RING 10
31 54K20002
- 54K20002 - O'RING 10
32 6803092
- 6803092 - BONNET
- .625 flange
33 6681933
- 6681933 - CHECK VALVE
- 3000 PSI - W/screen - W/Ref. 34
34 7101345
- 7101345 - BONNET
- DETENT HYD VALVE
- Was 6587633
35 30G416
- 30G416 - BOLT
36 6592109
- 6592109 - ADAPTER
37 6683274
- 6683274 - SEAL
- SPOOL 10
- lip
38 6588781
- 6588781 - END CAP
- .87" thick
39 58K124
- 58K124 - O RING 10
40 6596332
- 6596332 - SPRING
41 7108780
- 7108780 - SLEEVE
- Was 6595951
42 6592720
- 6592720 - PLUG
- W/Ref. 16-18
43 1K127
- 1K127 - O-RING 10
- Was 93K127
44 6817549
- 6817549 - CROSS
- W/Ref. 6
45 55K204
- 55K204 - O RING 10
46 29G412
- 29G412 - BOLT
47 29G416
- 29G416 - BOLT
- 1" long
48 6662848
- 6662848 - CAP
49 6816350
- 6816350 - TEE
- W/Ref. 6 - Was 6805696
50 97K6
- 97K6 - O-RING
- flared end
51 6806496
- 6806496 - TUBELINE
52 25K20012
- 25K20012 - O RING 10
53 6677201
- 6677201 - SOLENOID ASSEMBLY
- W/Ref. 58 & 59
54 6676249
- 6676249 - STEM
- VALVE SOLENOID
55 6586459
- 6586459 - SEAL KIT
56 6717706
- 6717706 - COIL
- 10 VOLT
- W/Ref. 61 - pwm - 10 volt
57 6678552
- 6678552 - RELIEF VLV ANTI-CAV
- port relief & anti-cavitation - W/Ref. 16
- 32 & 33 - 2500 PSI - use in tilt cylinder base end port
58 6673904
- 6673904 - SEAL KIT
- W/Ref. 16
- 32 & 33
59 6676566
- 6676566 - NUT
60 6595131
- 6595131 - SPRING
- .72'' OD
61 6805651
- 6805651 - AUX BLOCK
- aux
62 6812171
- 6812171 - PLUG
- W/Ref. 65 - Was 90KV00005B
63 95K6
- 95K6 - O'RING
64 6806561
- 6806561 - PLUG W/SEALS
- W/Ref. 35 & 56
65 36K5
- 36K5 - CAP
66 6684125EF
- 6684125EF - COUPLER ISO MALE B 3/8 BDY 3/8 SAE
67 6684125
- 6684125 - COUPLER
- male
68 6685602
- 6685602 - CAP
- DUST
69 6718031
- 6718031 - TEE
70 15KB0606
- 15KB0606 - FITTING
- HYD CONNECTOR
71 6734058
- 6734058 - TUBELINE
72 6816250
- 6816250 - KIT
- SEAL
- one spool - Ref. 4
- 36
- 42
- 48
- 51 & 52
73 6816253
- 6816253 - KIT
- SEAL
- complete - Ref. 4
- 6
- 13
- 16-18
- 21-24
- 34
- 35
- 42
- 44 & 50-52 - also Order 6816250 seal kit
74 6661328
- 6661328 - SEAL KIT
- main relief - Ref. 21-24
75 6809425
- 6809425 - SEAL KIT
- Ref. 13 & 16-18
76 6586459
- 6586459 - SEAL KIT
- W/Ref. 16
- 32 & 33
