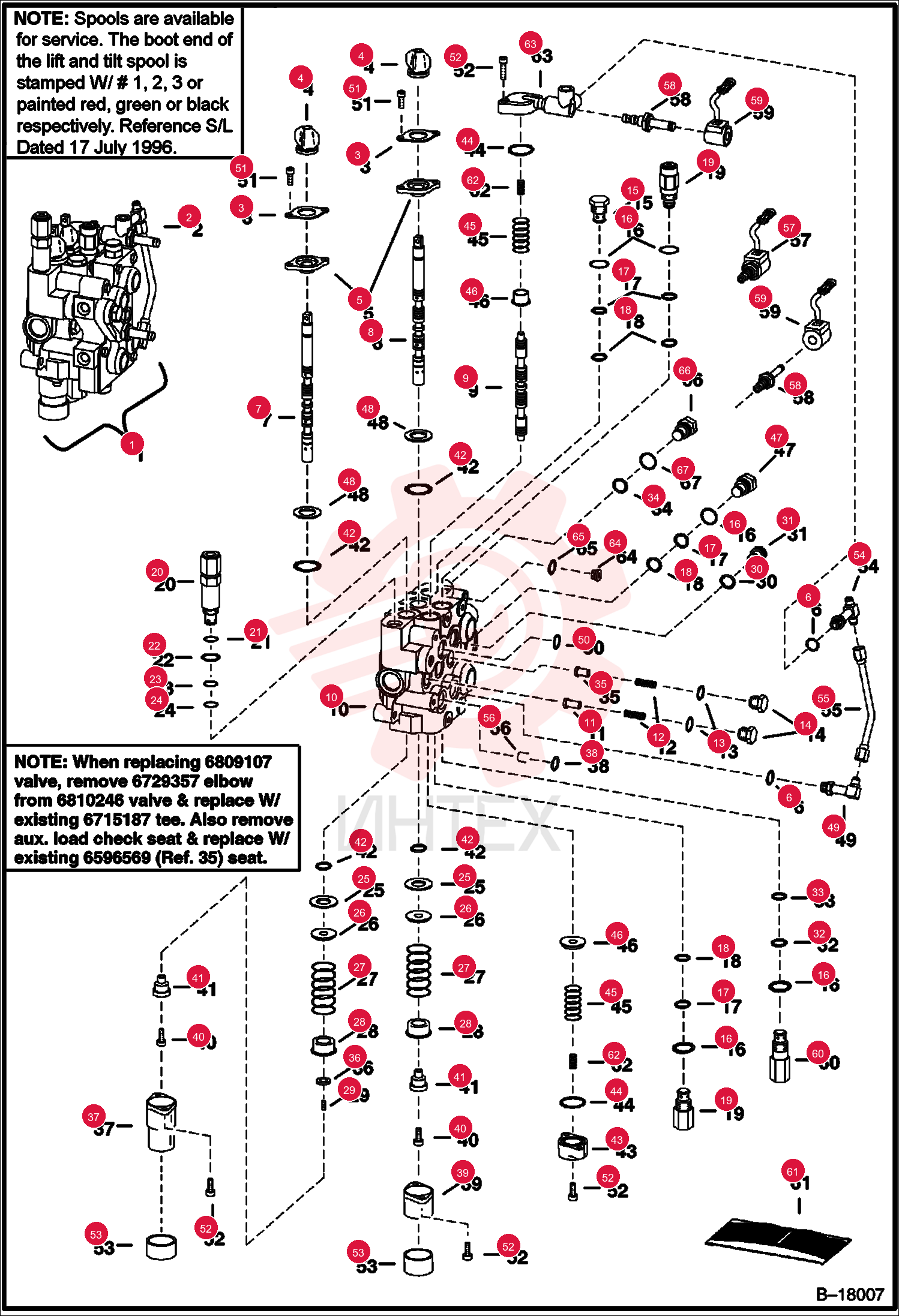

RETAINER 6589564 (8)
1 6589564
- 6589564 - RETAINER
2 6587763
- 6587763 - BOOT
3 6589565
- 6589565 - SEAL
4 99K6
- 99K6 - O-RING
- tapered boss face
5 7108251
- 7108251 - SPOOL
- LIFT
- Was 7101151
6 7108242
- 7108242 - SPOOL
- TILT
7 7300937
- 7300937 - SPOOL AUX
- auxiliary - SEE NOTE - Was 6588074
8 6592115
- 6592115 - SEAT
- aux. load check - W/ 6809107
9 6592115
- 6592115 - SEAT
- aux. load check - W/ 6810246
10 6592117
- 6592117 - SPRING
- LOAD CHECK
11 79K8
- 79K8 - O RING 10
12 6592116
- 6592116 - NUT
- load check - W/Ref. 13
13 6667549
- 6667549 - VALVE
- CHECK
- anti-cavity check - W/Ref. 16-18
14 79K10
- 79K10 - O RING 10
15 80K14
- 80K14 - BKUP WSH5
- Was 73K000014B
16 58K014
- 58K014 - O-RING 10
- back-up washer required
17 6677106
- 6677106 - O-RING
- back-up washer not required
18 6678574
- 6678574 - VALVE
- RELIEF
- port relief - W/Ref. 16-18 - Was 6673184
19 7219324
- 7219324 - VALVE
- RELIEF
- W/ O-rings - pressure to be set in field - Was 6686360
20 58K017
- 58K017 - O-RING 10
21 6665569
- 6665569 - RING
- BACK-UP
- back-up
22 25K20016
- 25K20016 - O RING 10
23 6665570
- 6665570 - CLYD RING
- glide
24 6595663
- 6595663 - BUSHING
25 7211397
- 7211397 - WASHER
- SPRING
- Was 6587523
26 6587580
- 6587580 - SPRING
27 6592100
- 6592100 - COLLAR
28 6801167
- 6801167 - SPOOLPLUG
- plastic - 0.69" long
29 95K12
- 95K12 - O-RING
30 90K8
- 90K8 - PLUG
- W/Ref. 30 - socket head - Was 90KV00008B
31 25K20012
- 25K20012 - O RING 10
- Was 58K-12
32 6596569
- 6596569 - SEAT
- aux. load check - used on 6809107 valve
33 54K20002
- 54K20002 - O'RING 10
34 6803092
- 6803092 - BONNET
- .625 flange
35 55K212
- 55K212 - O RING 10
36 7101345
- 7101345 - BONNET
- DETENT HYD VALVE
- Was 6587633
37 30G416
- 30G416 - BOLT
38 6592109
- 6592109 - ADAPTER
39 6683274
- 6683274 - SEAL
- SPOOL 10
- spool - Was 6665846
40 6588781
- 6588781 - END CAP
- .87" thick
41 58K124
- 58K124 - O RING 10
42 6596332
- 6596332 - SPRING
43 7108780
- 7108780 - SLEEVE
- Was 6595951
44 6592720
- 6592720 - PLUG
- W/Ref. 16-18
45 1K127
- 1K127 - O-RING 10
- Was 93K127
46 6727931
- 6727931 - TEE
- W/Ref. 6
47 97K6
- 97K6 - O-RING
- flared end
48 55K204
- 55K204 - O RING 10
49 29G412
- 29G412 - BOLT
50 29G416
- 29G416 - BOLT
- 1" long
51 6662848
- 6662848 - CAP
52 6805696
- 6805696 - TEE
- W/Ref. 6
53 97K6
- 97K6 - O-RING
- flared end
54 6806496
- 6806496 - TUBELINE
55 58K012
- 58K012 - O-RING 10
56 6676249
- 6676249 - STEM
- VALVE SOLENOID
57 6679961
- 6679961 - NUT
- Coil
58 6586459
- 6586459 - SEAL KIT
59 6717706
- 6717706 - COIL
- 10 VOLT
- W/ nut - pwm - 10 volt
60 6676566
- 6676566 - NUT
61 6678552
- 6678552 - RELIEF VLV ANTI-CAV
- Port Relief & Anti-Cavity - W/Ref. 16
- 32
- 33 - 3500 PSI - Use in Tilt Cylinder Base End Port - Was 6671632
62 6673904
- 6673904 - SEAL KIT
- W/Ref. 16
- 32 & 33
63 6816250
- 6816250 - KIT
- SEAL
- one spool - Ref. 4
- 36
- 42
- 48
- 51 & 52 - Was 6803605
64 6816253
- 6816253 - KIT
- SEAL
- complete - Ref. 4
- 13
- 16-18
- 21-24
- 38
- 42
- 44 & 50-52 - also Order 6816250 seal kit - Was 6809448
65 6661328
- 6661328 - SEAL KIT
- main relief - Ref. 21-24
66 6809425
- 6809425 - SEAL KIT
- Ref. 13 & 16-18
67 6586459
- 6586459 - SEAL KIT
- W/Ref. 16
- 32
- 33
68 6595131
- 6595131 - SPRING
- .72'' OD - Red
69 6805651
- 6805651 - AUX BLOCK
- aux
70 6812171
- 6812171 - PLUG
- W/Ref. 65 - Was 90KV-5
71 95K6
- 95K6 - O'RING
72 6806561
- 6806561 - PLUG W/SEALS
- W/Ref. 67-34
73 79K7
- 79K7 - O RING 10
