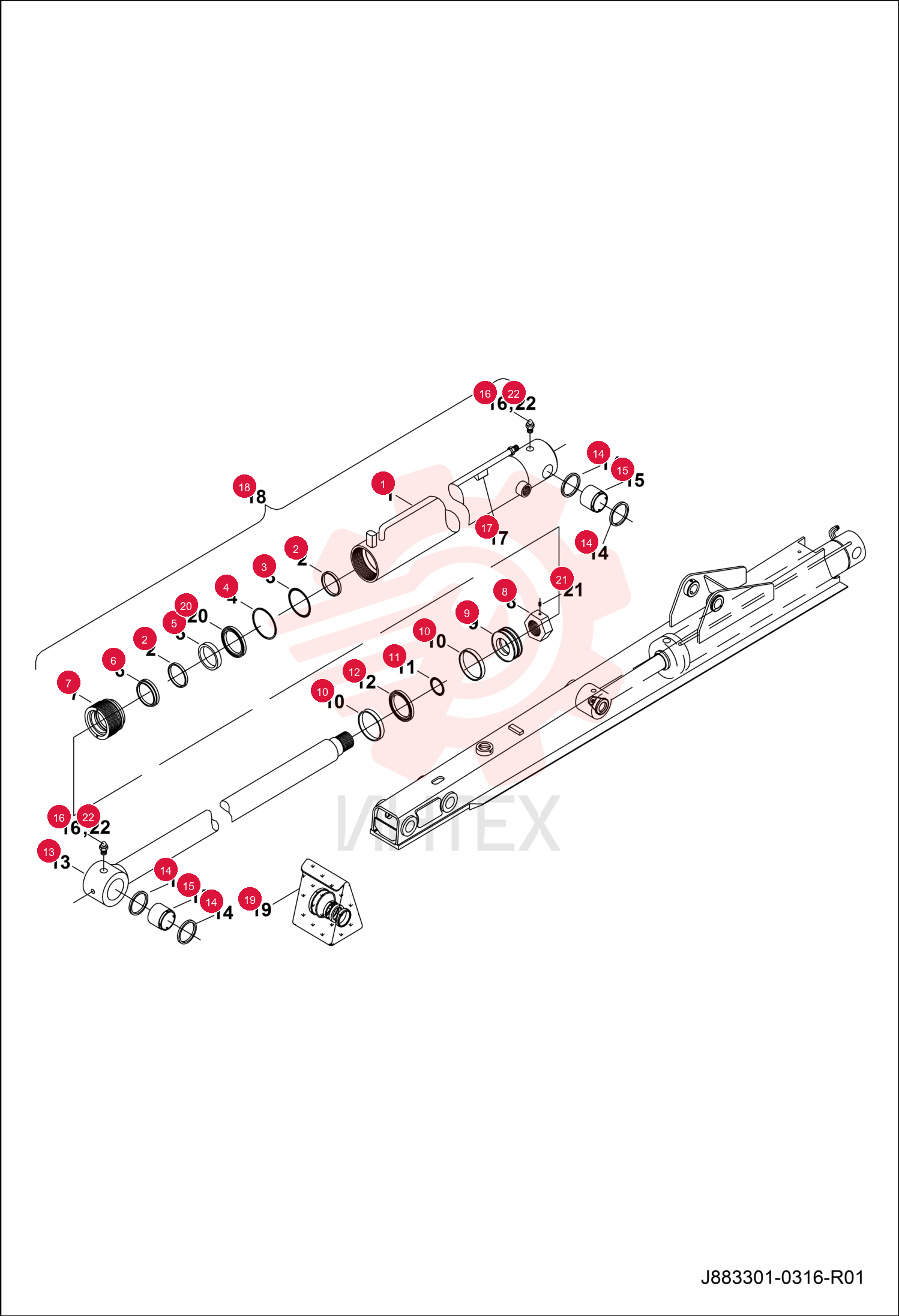

CYLINDER PIPE ASSEMBLY 7304342 (1)

CYLINDER PIPE ASSEMBLY 7304342 (1)

CYLINDER PIPE ASSEMBLY 7304342 (1)

1 7304342

  • 7304342 - CYLINDER PIPE ASSEMBLY

2 7291548

  • 7291548 - TEFLON RING

3 7289888

  • 7289888 - O-RING

4 7289887

  • 7289887 - BACK-UP RING

5 7289855

  • 7289855 - RING LOCK

6 7289857

  • 7289857 - SEAL DUST

7 7292602

  • 7292602 - GUIDE

8 7292603

  • 7292603 - NUTRING

9 7292604

  • 7292604 - PISTON

10 7289962

  • 7289962 - TEFLON RING

11 7289898

  • 7289898 - O-RING

12 7289897

  • 7289897 - OMEGAT

13 7304343

  • 7304343 - ROD ASSEMBLY

14 7289943

  • 7289943 - SEAL DUST

15 7292606

  • 7292606 - BUSHING SPACER

16 7289862

  • 7289862 - FITTING GREASE

17 7292607

  • 7292607 - BUMPER RUBBER

18 7301561

  • 7301561 - CYLINDER ASSEMBLY

19 7292609

  • 7292609 - KIT
  • REPAIR

20 7289948

  • 7289948 - OMEGAT

21 7291544

  • 7291544 - SCREW SET

22 7289871

  • 7289871 - GREASER COVER
