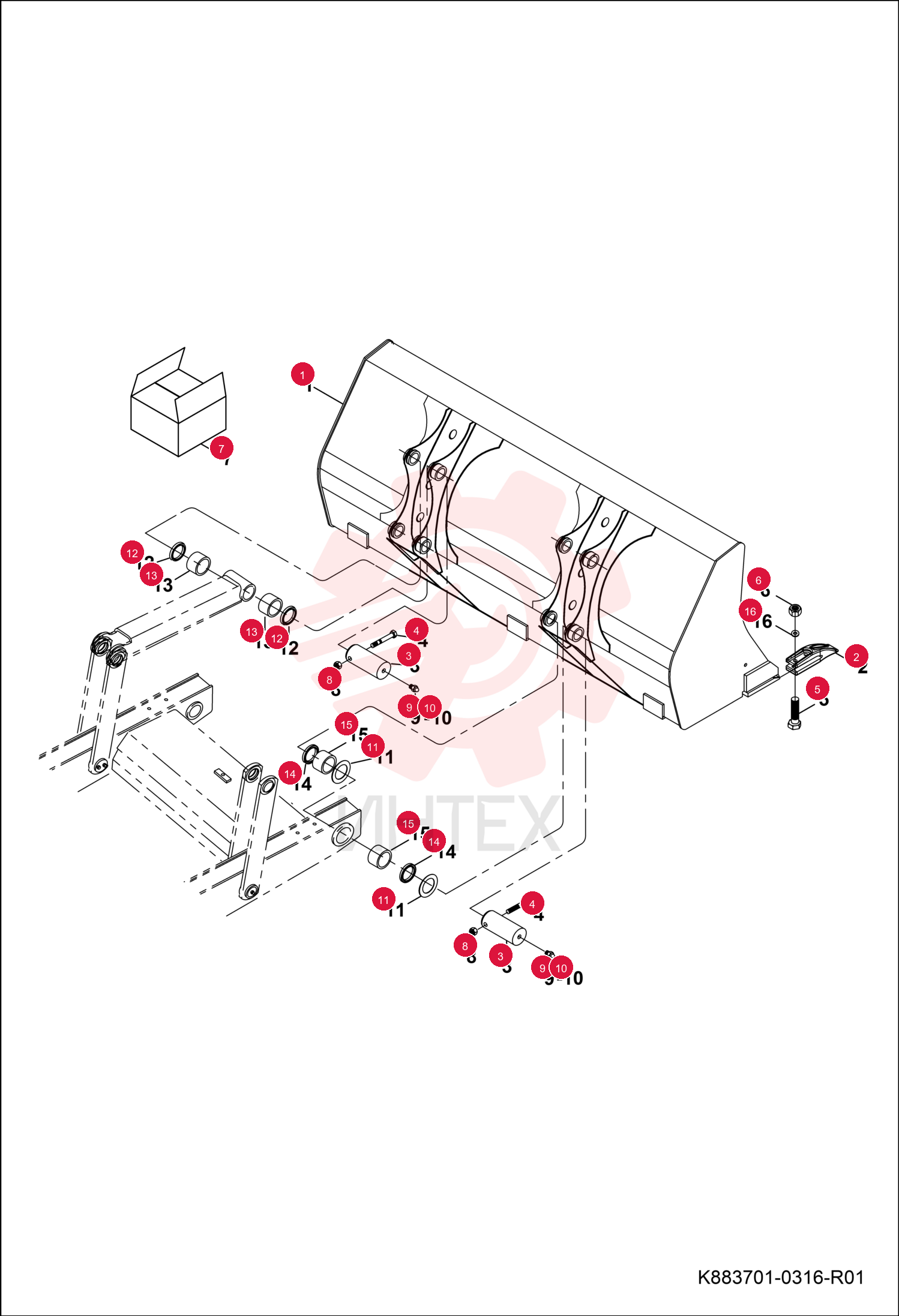

SIDE CUTTING EDGE 7326090 (2)

SIDE CUTTING EDGE 7326090 (2)

SIDE CUTTING EDGE 7326090 (2)

1 7326090

  • 7326090 - SIDE CUTTING EDGE

2 7326088

  • 7326088 - BOTTOM CUTTING EDGE

3 7292700

  • 7292700 - BUCKET

4 7290734

  • 7290734 - TOOTH BUCKET

5 7292561

  • 7292561 - PIN PIVOT

6 7290707

  • 7290707 - BOLT HEX

7 7290735

  • 7290735 - BOLT HEX

8 7290736

  • 7290736 - NUT HEX

9 7292691

  • 7292691 - TOOTH SET

10 7288888

  • 7288888 - NUT HEX

11 7289862

  • 7289862 - FITTING GREASE

12 7289871

  • 7289871 - GREASER COVER

13 7292527

  • 7292527 - SHIM RING

14 7289920

  • 7289920 - SEAL DUST

15 7292562

  • 7292562 - BUSHING

16 7289943

  • 7289943 - SEAL DUST

17 7292544

  • 7292544 - BUSHING PIVOT

18 7304368

  • 7304368 - ADJUSTING SHIM
