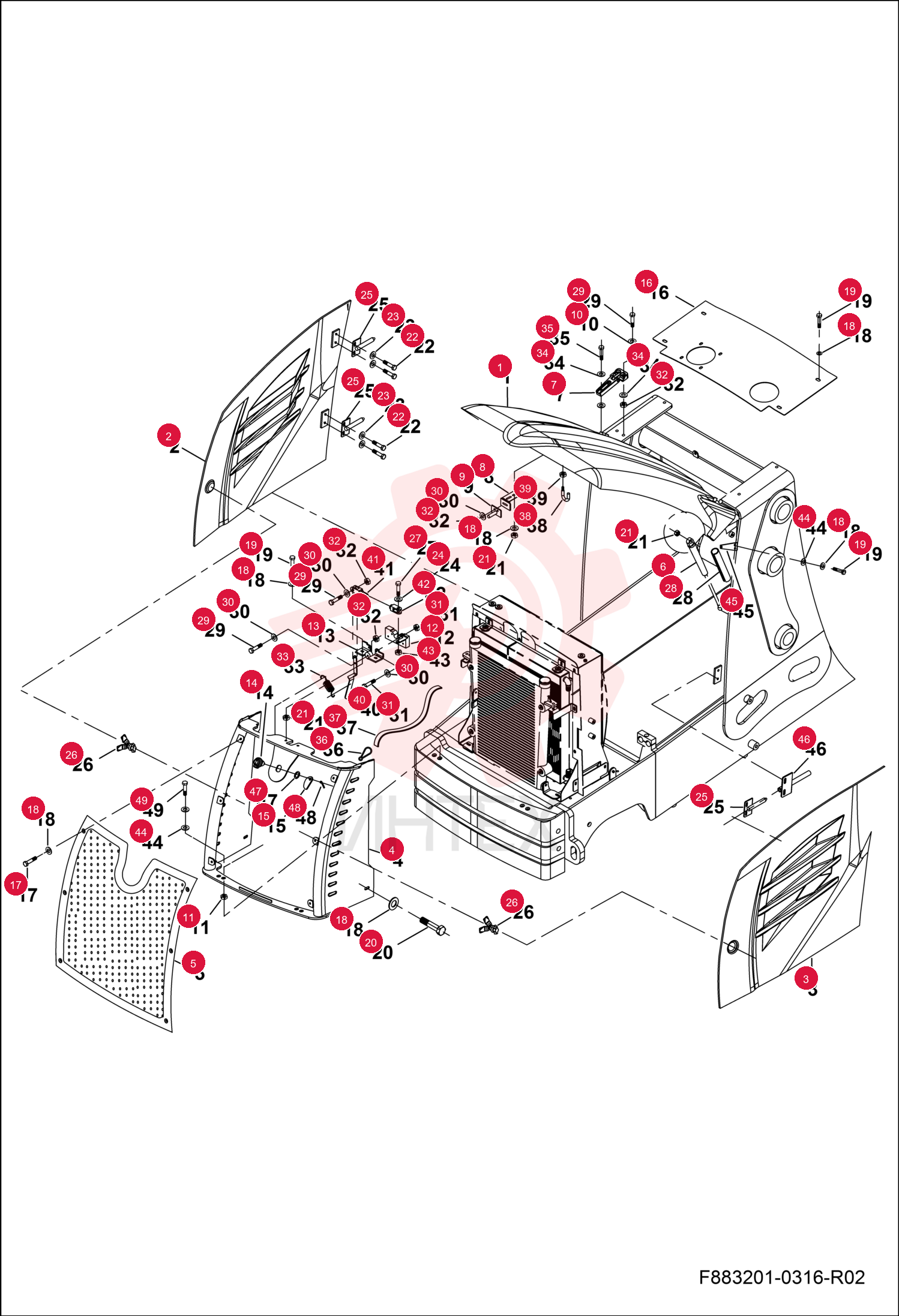

ENGINE BONNET 7304273 (1)

ENGINE BONNET 7304273 (1)

ENGINE BONNET 7304273 (1)

1 7304273

  • 7304273 - ENGINE BONNET

2 7304274

  • 7304274 - ENGINE BONNET RIGHT LAP

3 7304275

  • 7304275 - ENGINE BONNET LEFT LAP

4 7292135

  • 7292135 - GRILLE

5 7292122

  • 7292122 - SCREEN GRID

6 7290301

  • 7290301 - DAMPER

7 7290302

  • 7290302 - HINGE COVER

8 7301560

  • 7301560 - BRACKET

9 7304095

  • 7304095 - BRACKET

10 7289507

  • 7289507 - WASHER FLAT

11 7289263

  • 7289263 - NUT HEX

12 7290305

  • 7290305 - LOCK SNAP

13 7290306

  • 7290306 - BRACKET PIN LOCK

14 7290385

  • 7290385 - LOCK

15 7292136

  • 7292136 - BRACKET COVER

16 7292137

  • 7292137 - ENGINE BONNET REAR PLATE

17 7288896

  • 7288896 - BOLT HEX

18 7289262

  • 7289262 - WASHER FLAT

19 7289273

  • 7289273 - BOLT HEX

20 7292138

  • 7292138 - BOLT

21 7289641

  • 7289641 - NUT HEX

22 7291292

  • 7291292 - SCREW MACHINE

23 7289615

  • 7289615 - WASHER FLAT

24 7292139

  • 7292139 - WASHER

25 7304096

  • 7304096 - BRACKET

26 7290312

  • 7290312 - LOCK

27 7290238

  • 7290238 - BOLT HEX

28 7290315

  • 7290315 - DAMPER ISOLATION

29 7290316

  • 7290316 - BOLT HEX

30 7290820

  • 7290820 - WASHER FLAT

31 7290375

  • 7290375 - BOLT HEX

32 7289785

  • 7289785 - NUT HEX

33 7290332

  • 7290332 - SPRING

34 7289598

  • 7289598 - WASHER FLAT

35 7289595

  • 7289595 - BOLT HEX

36 7290320

  • 7290320 - HOOK

37 7290321

  • 7290321 - ROPE

38 7290322

  • 7290322 - HOOK

39 7289597

  • 7289597 - NUT HEX

40 7290323

  • 7290323 - BRACKET LATCH

41 7290324

  • 7290324 - FORK

42 7290325

  • 7290325 - FORK

43 7290326

  • 7290326 - NUT HEX

44 7288891

  • 7288891 - WASHER LOCK

45 7304098

  • 7304098 - PLATE

46 7304099

  • 7304099 - LOCK BRACKET

47 7290330

  • 7290330 - SEGMAN

48 7290331

  • 7290331 - PIN LOCK

49 7292127

  • 7292127 - BOLT
