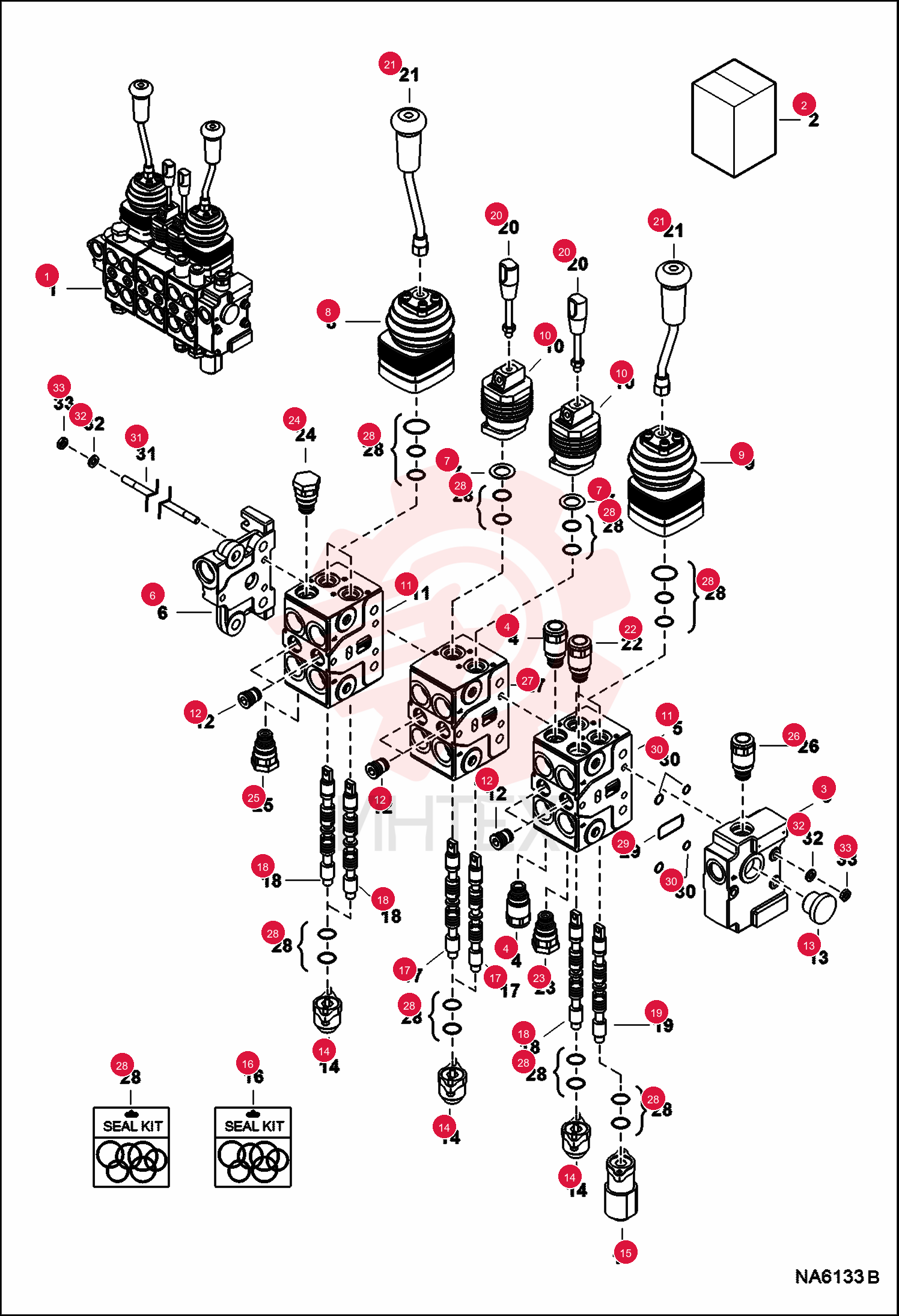

VALVE, CONTROL 7204326 (8)

VALVE, CONTROL 7204326 (8)

VALVE, CONTROL 7204326 (8)

1 7204326

  • 7204326 - VALVE
  • CONTROL
  • Ref. 2-27

2 7022322

  • 7022322 - KIT
  • ROD TIE
  • (3) of Ref. 31 & (6) each of Ref. 32 & 33

3 7022323

  • 7022323 - SECTION
  • VALVE
  • inlet

4 7022324

  • 7022324 - VALVE
  • RELIEF
  • anti-cavitation

5 7025066

  • 7025066 - SECTION
  • VALVE
  • assy - Ref. 4
  • 12
  • 14
  • 15
  • 18
  • 19
  • 22
  • 23 & 28

6 7022326

  • 7022326 - SECTION
  • VALVE
  • outlet

7 7022513

  • 7022513 - WASHER

8 7022330

  • 7022330 - LEVER
  • W/Ref. 7

9 7025060

  • 7025060 - SECTION
  • VALVE
  • assy - Ref. 12
  • 14
  • 18
  • 19
  • 24
  • 25 & 28

10 7022332

  • 7022332 - VALVE CHECK

11 7022333

  • 7022333 - PLUG

12 7022336

  • 7022336 - KIT
  • SEAL
  • Includes Ref. 29 & (4) of Ref. 30

13 7022337

  • 7022337 - SPOOL
  • VALVE

14 7022338

  • 7022338 - SPOOL
  • VALVE

15 7022339

  • 7022339 - SPOOL
  • VALVE

16 7022340

  • 7022340 - LEVER

17 7022341

  • 7022341 - LEVER

18 7022342

  • 7022342 - VALVE
  • RELIEF
  • anti-cavitation

19 7022343

  • 7022343 - VALVE
  • RELIEF

20 7022344

  • 7022344 - VALVE
  • RELIEF

21 7022345

  • 7022345 - VALVE
  • RELIEF

22 7022505

  • 7022505 - VALVE
  • RELIEF

23 7025065

  • 7025065 - SECTION
  • VALVE
  • assy - Ref. 12
  • 14
  • 17 & 28

24 7022506

  • 7022506 - KIT
  • SEAL
  • one spool

25 7022564

  • 7022564 - WASHER

26 7023331

  • 7023331 - NUT
