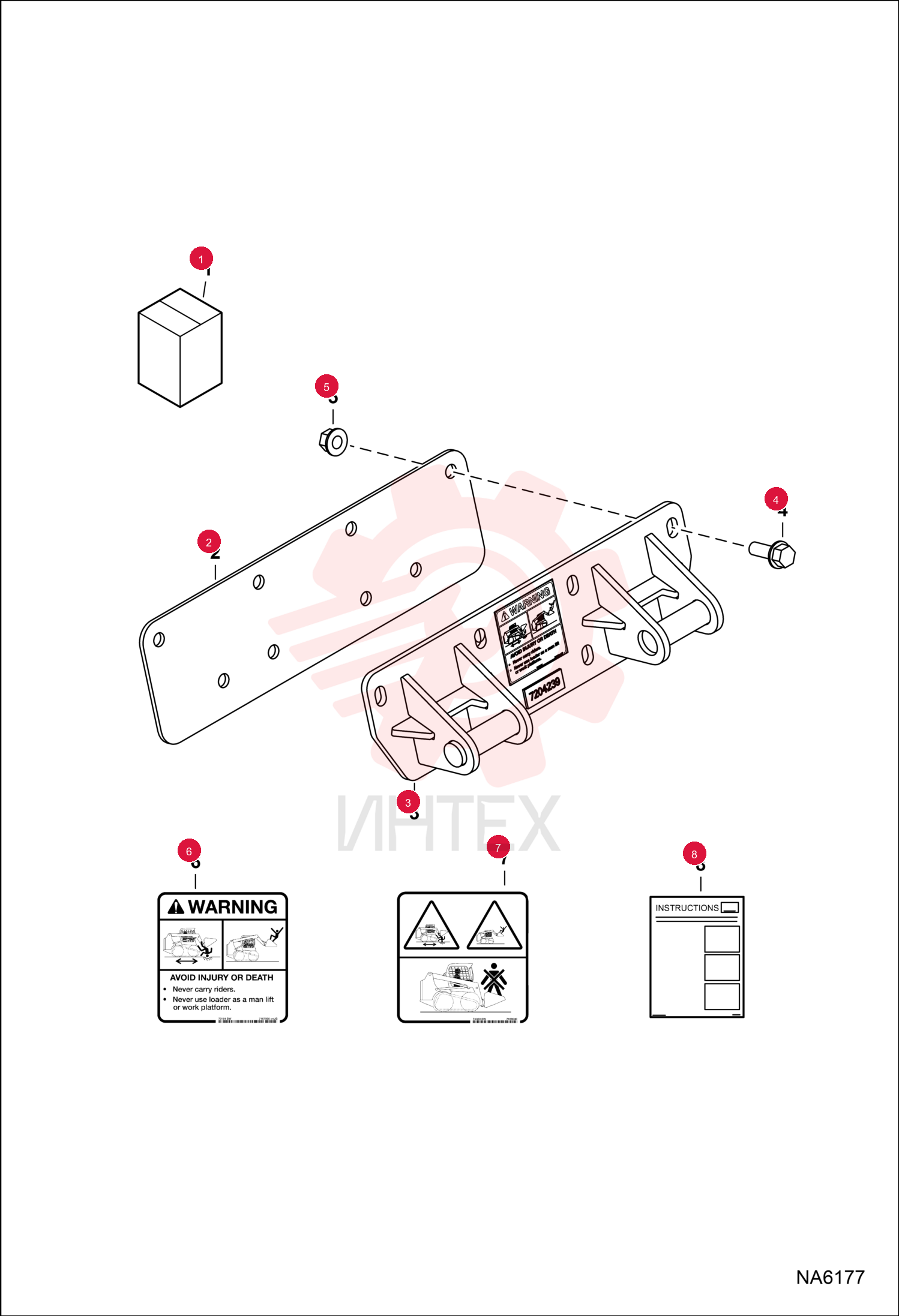

KIT MOUNT BACKHOE EXLF 7204239

KIT MOUNT BACKHOE EXLF 7204239

KIT MOUNT BACKHOE EXLF 7204239

1 7204239

  • 7204239 - KIT MOUNT BACKHOE EXLF
  • Ref. 2-8 - Was SALES

2 7155535

  • 7155535 - PLATE

3 7153633

  • 7153633 - MOUNT

4 31C1028

  • 31C1028 - BOLT 5

5 83D10

  • 83D10 - NUT 5

6 7167996

  • 7167996 - DECAL
  • WARNING

7 7168040

  • 7168040 - DECAL
  • WARNING
  • no-text

8 6990144ENUS

  • 6990144ENUS - INSTRUCTIONS
  • Was 6990144
