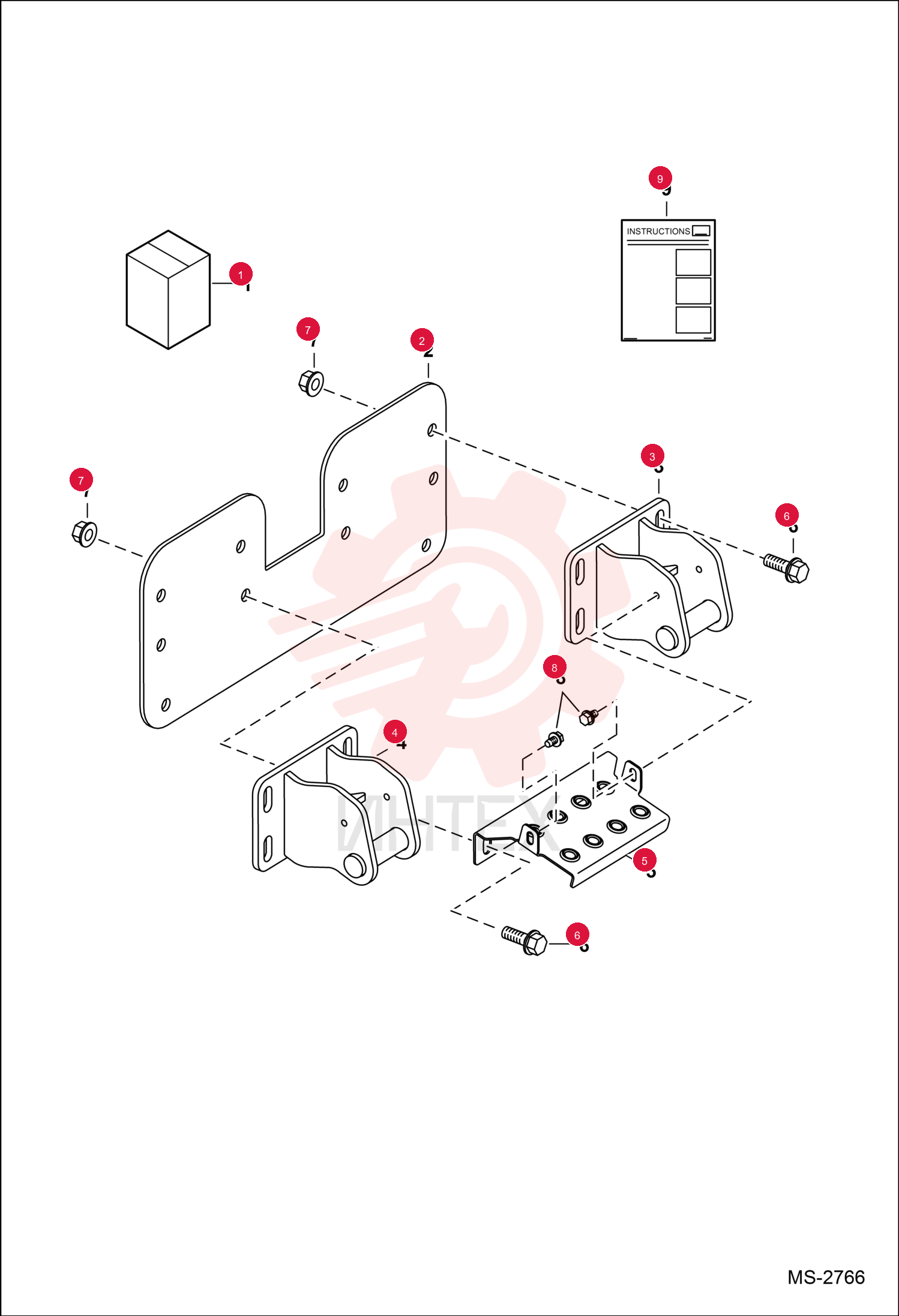

KIT MOUNT BKH 8811 7167510

KIT MOUNT BKH 8811 7167510

KIT MOUNT BKH 8811 7167510

1 7167510

  • 7167510 - KIT MOUNT BKH 8811
  • Ref. 2-9 - Was SALES

2 6815419

  • 6815419 - PLATE

3 7155455

  • 7155455 - MOUNT
  • BACKHOE
  • LH

4 7163431

  • 7163431 - MOUNT
  • BACKHOE
  • RH

5 7155469

  • 7155469 - STEP

6 31C1028

  • 31C1028 - BOLT 5

7 83D10

  • 83D10 - NUT 5

8 84G3710

  • 84G3710 - SCREW

9 6987207

  • 6987207 - INSTRUCTIONS
