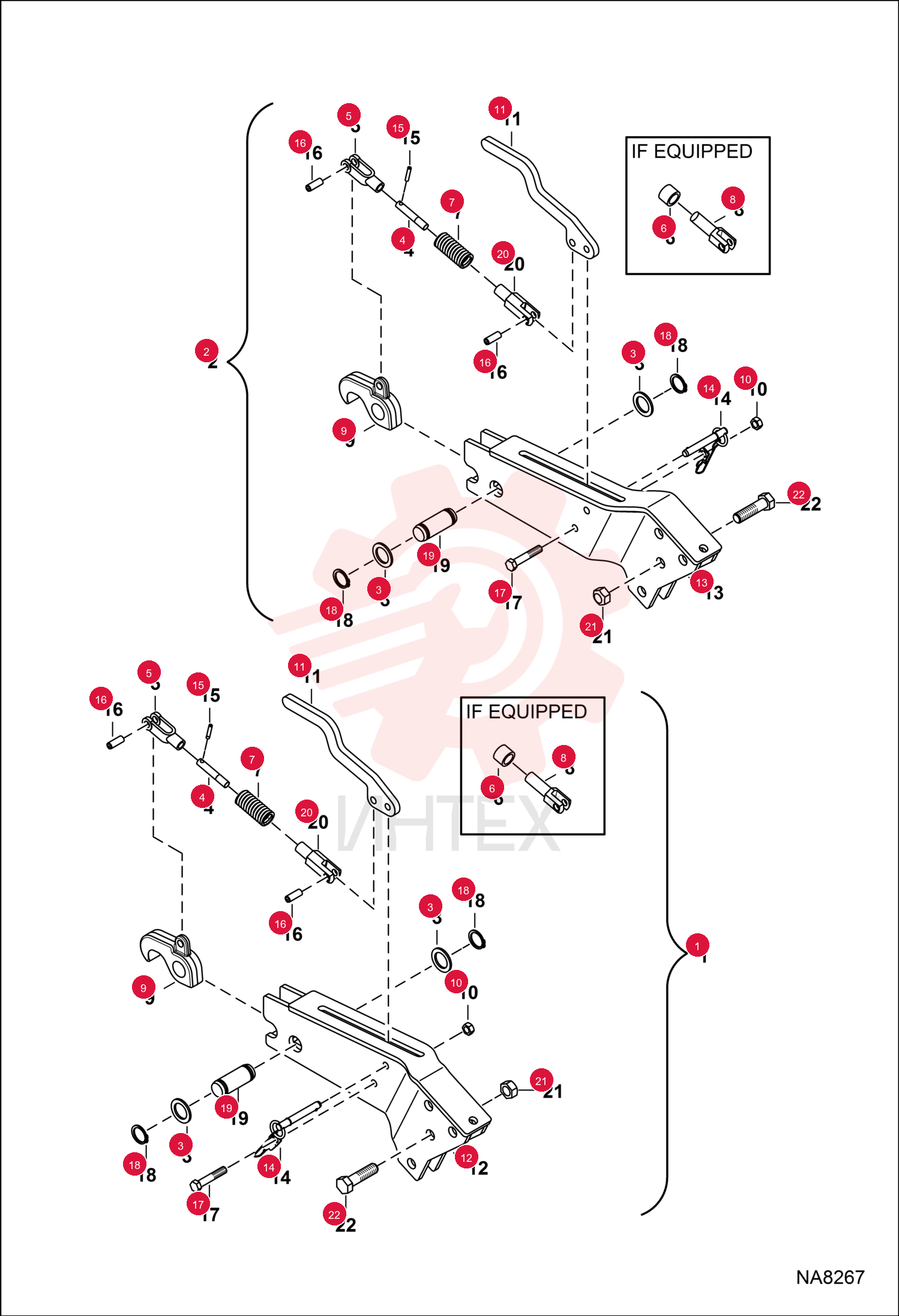

LATCH, BACKHOE 7235870

LATCH, BACKHOE 7235870

LATCH, BACKHOE 7235870

1 7235870

  • 7235870 - LATCH
  • BACKHOE
  • RH - Ref. 3-12 & 14-19

2 7235878

  • 7235878 - LATCH
  • BACKHOE
  • LH - Ref. 3-11 & 13-19

3 6532519

  • 6532519 - WASHER

4 6533158

  • 6533158 - ROD

5 6533159

  • 6533159 - CLEVIS

6 6533160

  • 6533160 - BUSHING
  • if equipped - Use W/Ref. 8

7 6578253

  • 6578253 - SPRING
  • COMPRESSION

8 6704248

  • 6704248 - PIVOT
  • WEDGE

9 6816819

  • 6816819 - LATCH
  • Was 7242496

10 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

11 7172209

  • 7172209 - LATCH
  • BACKHOE

12 7241036

  • 7241036 - PIN
  • LOCK

13 14J2520

  • 14J2520 - PIN

14 14J5020

  • 14J5020 - PIN
  • ROLL

15 17C844

  • 17C844 - BOLT

16 22J20

  • 22J20 - SNAP RING

17 6812834

  • 6812834 - PIN
  • PIVOT

18 7304045

  • 7304045 - PIVOT
  • WEDGE

19 85D12

  • 85D12 - NUT
  • 5
  • not part of latch assy

20 17C1244

  • 17C1244 - BOLT
  • not part of latch assy
