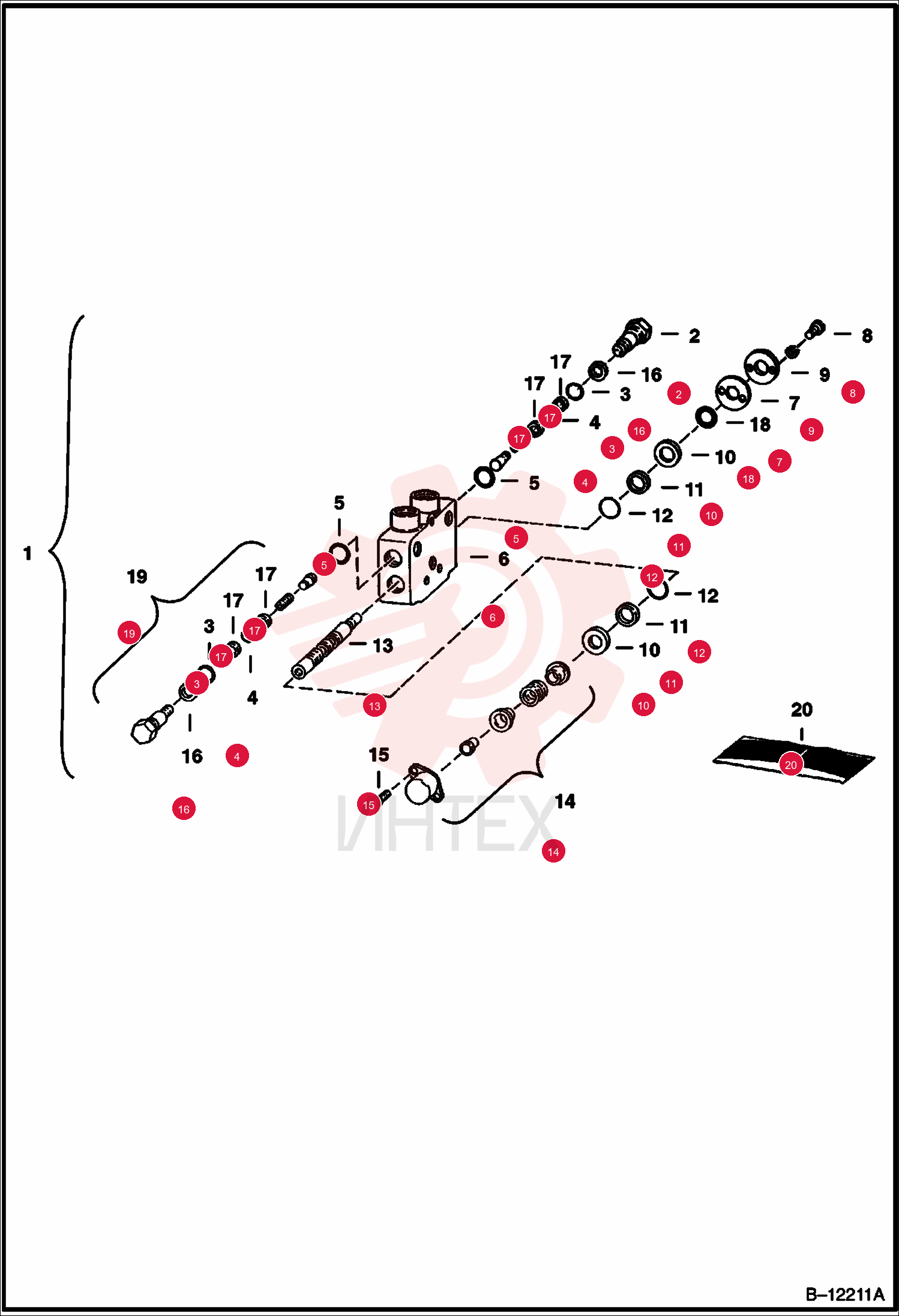

SECTION 6650124 (2)

SECTION 6650124 (2)

SECTION 6650124 (2)

1 6650124

  • 6650124 - SECTION
  • dipper - W/Ref. 2-19

2 6647700

  • 6647700 - VALVE
  • RELIEF
  • relief

3 6647688

  • 6647688 - PLATE
  • plate washer

4 6647689

  • 6647689 - SCREW

5 6519941

  • 6519941 - PLATE
  • RETAINER

6 6647690

  • 6647690 - RETAINER
  • plate washer

7 6649832

  • 6649832 - BONNET

8 6647692

  • 6647692 - SCREW

9 6647695

  • 6647695 - SEAL
  • WIPER

10 6651653

  • 6651653 - VALVE
  • RELIEF

11 6647694

  • 6647694 - SEAL KIT
  • W/Ref. 11 & 12

12 6647693

  • 6647693 - SEAL KIT
  • W/Ref. 3-5
  • 16 & 17
