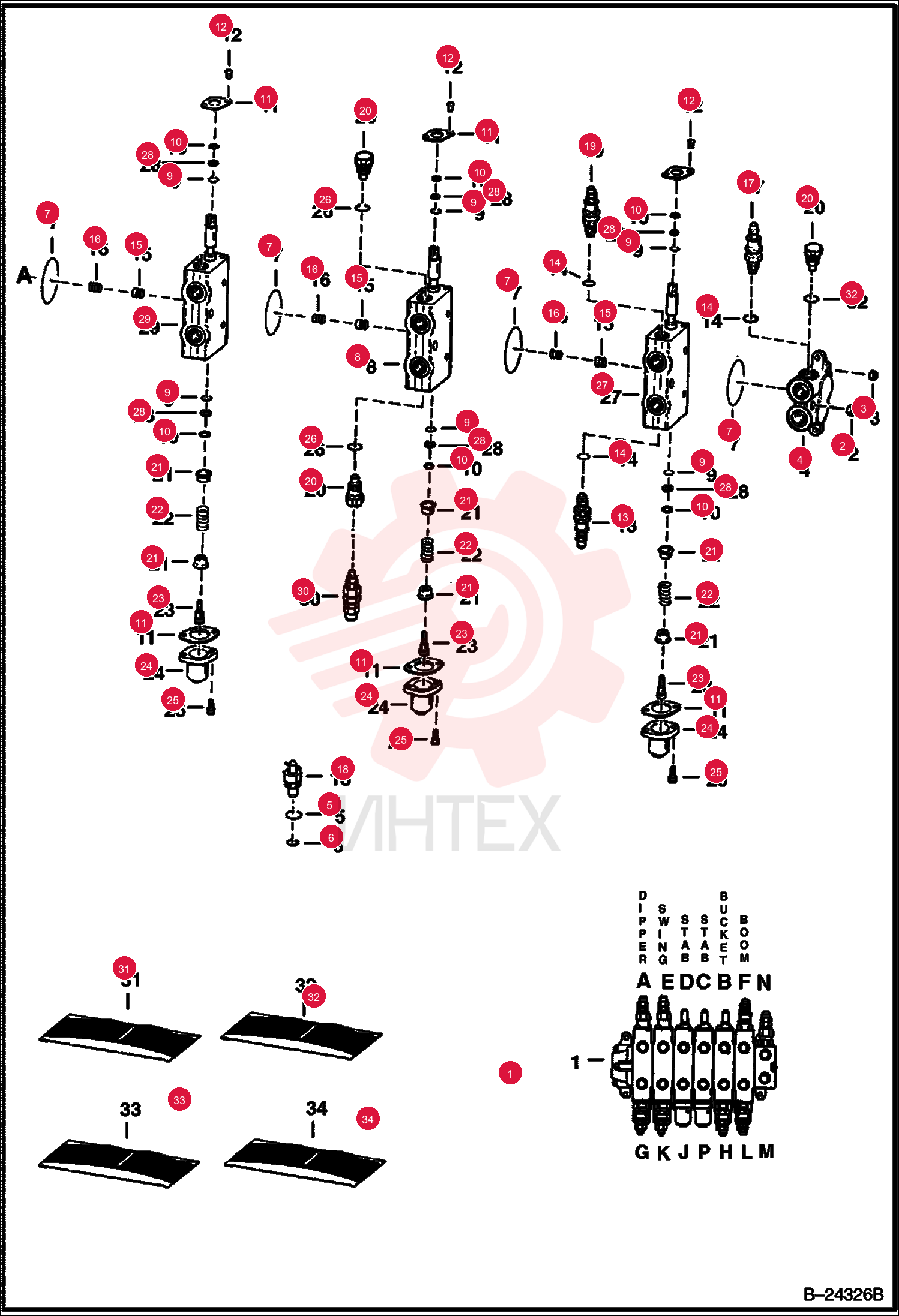

VALVE 6662949 (4)
1 6662949
- 6662949 - VALVE
- Ref. 2-25 - W/Ref. 2-19
- 21-25
- 27-29
- 30 on this Illustration - Was 6655019
2 62D6
- 62D6 - NUT HEX FINISHED GR5
3 61D5
- 61D5 - NUT HEX FINISHED GR5
4 6651869
- 6651869 - SECTION
- Inlet - W/Ref. 7
5 79K10
- 79K10 - O RING 10
6 58K110
- 58K110 - O RING 10
7 6646691
- 6646691 - O-RING
8 6646689
- 6646689 - SECT.SPOL
- Bucket
- Dipper & Swing - W/O Ref. 13
- 17
- 19
- 29 - W/Ref. 7
- 9-12
- 15
- 16
- 21-25 & 27
9 948016
- 948016 - PLATE
10 6646679
- 6646679 - VALVE
- RELIEF
11 961240
- 961240 - O-RING
12 6630965
- 6630965 - POPPET
13 6630966
- 6630966 - SPRING
14 6651867
- 6651867 - VALVE
- RELIEF
15 945193
- 945193 - PLUG
- W/Ref. 5 & 6
16 6517503
- 6517503 - VALVE
- RELIEF
- Anti-Cav.
17 6652869
- 6652869 - PLUG
- Non-Reusable
18 948017
- 948017 - SEAT
- Spring
19 948018
- 948018 - SPRING
20 948191
- 948191 - CAPSCREW
21 948192
- 948192 - CAP
22 73G412
- 73G412 - SCREW
23 6646688
- 6646688 - SPOOL SEC
- Boom - W/Ref. 7
- 9-12
- 15
- 16
- 21-25 & 27 - W/O Ref. 13
24 6646687
- 6646687 - SPOOL SEC
- Stabilizer - W/Ref. 7
- 9-12
- 15
- 16
- 21-25 & 28
25 6646680
- 6646680 - VALVE
- RELIEF
- Was 966134
26 6630960
- 6630960 - SEAL KIT
- O-Rings & Back-Up Rings for Ref. 19
27 6646698
- 6646698 - SEAL KIT
- Spool - W/Ref. 9
- 10 & 28
28 6652870
- 6652870 - SEAL KIT
- Ref. 7
- 20
- 26 & 31 - Complete - Includes Ref. 26 & 32
29 6646695
- 6646695 - SEAL KIT
- O-Rings & Back-Up Rings for Ref. 13
