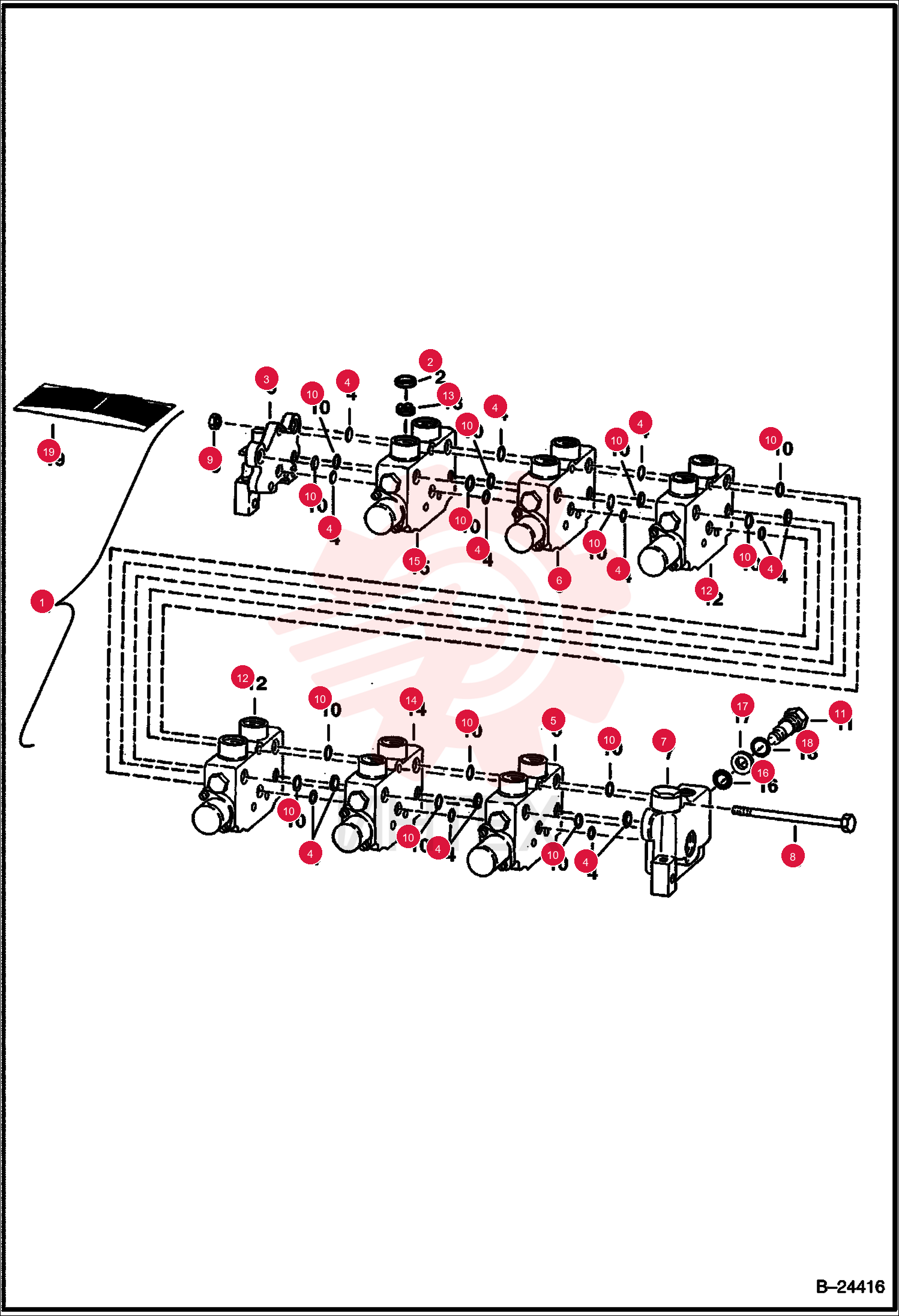

VALVE 6652369

VALVE 6652369

VALVE 6652369

1 6652369

  • 6652369 - VALVE
  • W/Ref. 2-18

2 6598690

  • 6598690 - SPRING

3 6647674

  • 6647674 - END COVER

4 6647702

  • 6647702 - O-RING
  • Was 6647675

5 6647678

  • 6647678 - END COVER

6 6647679

  • 6647679 - KIT
  • Bolts & nuts

7 6647680

  • 6647680 - O-RING

8 6647681

  • 6647681 - PLUG
  • W/Ref. 17-19

9 6647683

  • 6647683 - ORIFICE
  • .203'' (5
  • 15 mm)

10 6647686

  • 6647686 - SEAL KIT
  • W/Ref. 16-18
