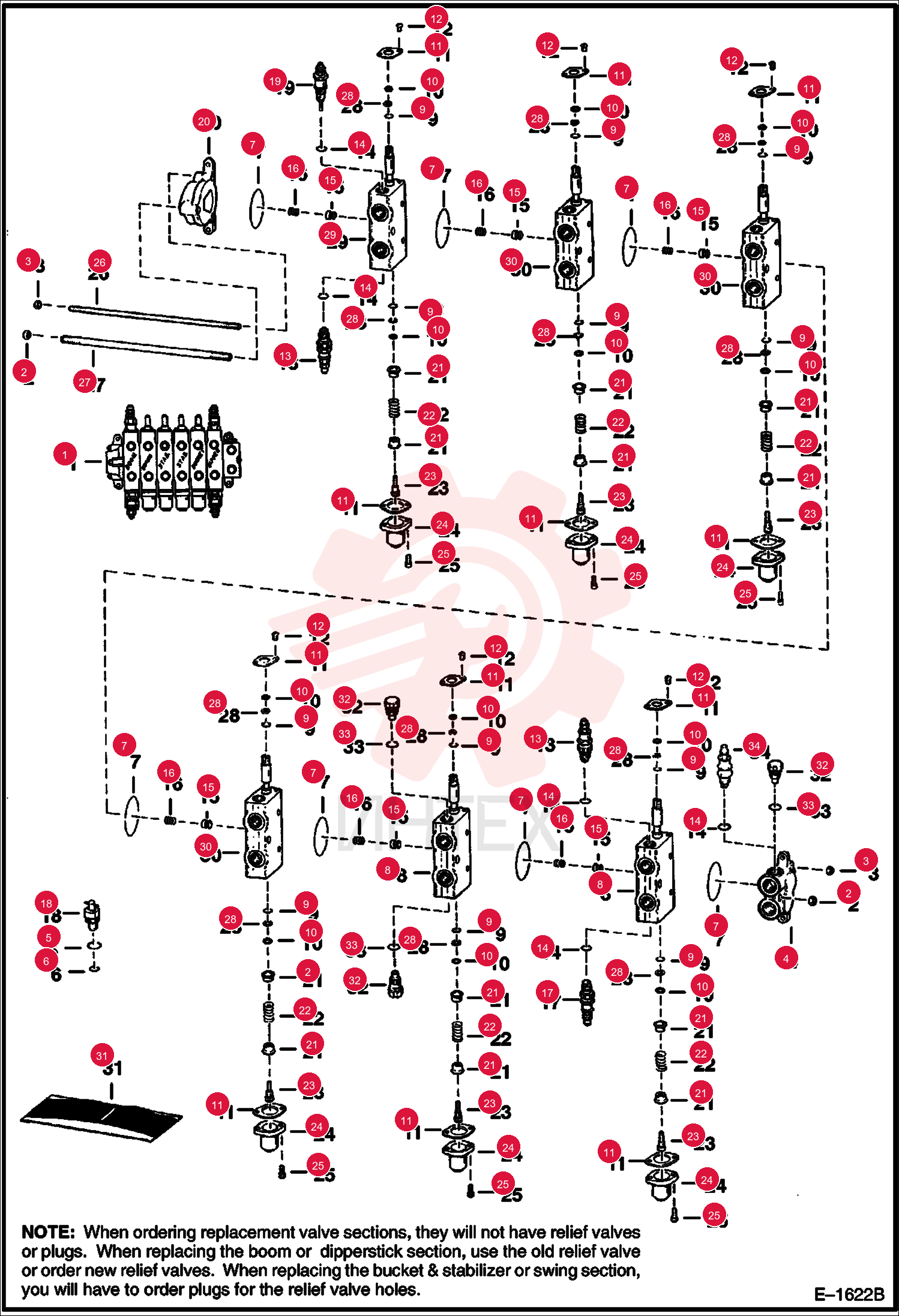

VALVE 6655020 (4)
1 6655020
- 6655020 - VALVE
- Was 6651860
2 62D6
- 62D6 - NUT HEX FINISHED GR5
3 61D5
- 61D5 - NUT HEX FINISHED GR5
4 6651869
- 6651869 - SECTION
- inlet - W/Ref. 7 - Was 6646686
5 79K10
- 79K10 - O RING 10
6 58K110
- 58K110 - O RING 10
- Was NSS
7 6646691
- 6646691 - O-RING
- Was 25K040208B
8 6646689
- 6646689 - SECT.SPOL
- bucket dipper - W/O Ref. 13 & 17 - W/Ref. 7
- 9-12
- 15
- 16
- 21-25 & 28 - Was 6630959
9 948016
- 948016 - PLATE
10 6646679
- 6646679 - VALVE
- RELIEF
- Was 966133
11 961240
- 961240 - O-RING
12 6630965
- 6630965 - POPPET
13 6630966
- 6630966 - SPRING
14 6646701
- 6646701 - VALVE
- RELIEF
- Was 966132
15 945193
- 945193 - PLUG
- W/Ref. 5 & 6
16 6517503
- 6517503 - VALVE
- RELIEF
- W/anti-cav.
17 948010
- 948010 - SECTION
- end - Was 948010
18 948017
- 948017 - SEAT
- spring
19 948018
- 948018 - SPRING
20 948191
- 948191 - CAPSCREW
21 948192
- 948192 - CAP
22 73G412
- 73G412 - SCREW
- Was 11G-412
23 6514391
- 6514391 - TIE BOLT
- tie
24 6514392
- 6514392 - TIE BOLT
- tie
25 6646688
- 6646688 - SPOOL SEC
- boom - W/Ref. 7
- 9-12
- 15
- 16
- 21-25 & 28 - W/O Ref. 13 & 19
26 6646687
- 6646687 - SPOOL SEC
- swing stab. - W/Ref. 7
- 9-12
- 15
- 16
- 21-25 & 28
27 6630136
- 6630136 - SEAL KIT
- O-rings & back-up rings for Ref. 19
28 6646695
- 6646695 - SEAL KIT
- O-rings & back-up rings for Ref. 13 & 17 - Was 6630962
29 6646698
- 6646698 - SEAL KIT
- spool - W/Ref. 9
- 10 & 28 - for all six sections
30 6651569
- 6651569 - SEAL KIT
- spool - for 1 section Ref. 9
- 10 & 28
31 6661236
- 6661236 - SEAL KIT
- complete - includes 6646695
- 6646698
- 6630136 & 6646691 - Was 6652871
32 6652869
- 6652869 - PLUG
- W/Ref. 33 - non reusable plug - Was 6649667
33 6651867
- 6651867 - VALVE
- RELIEF
- 2150 PSI
