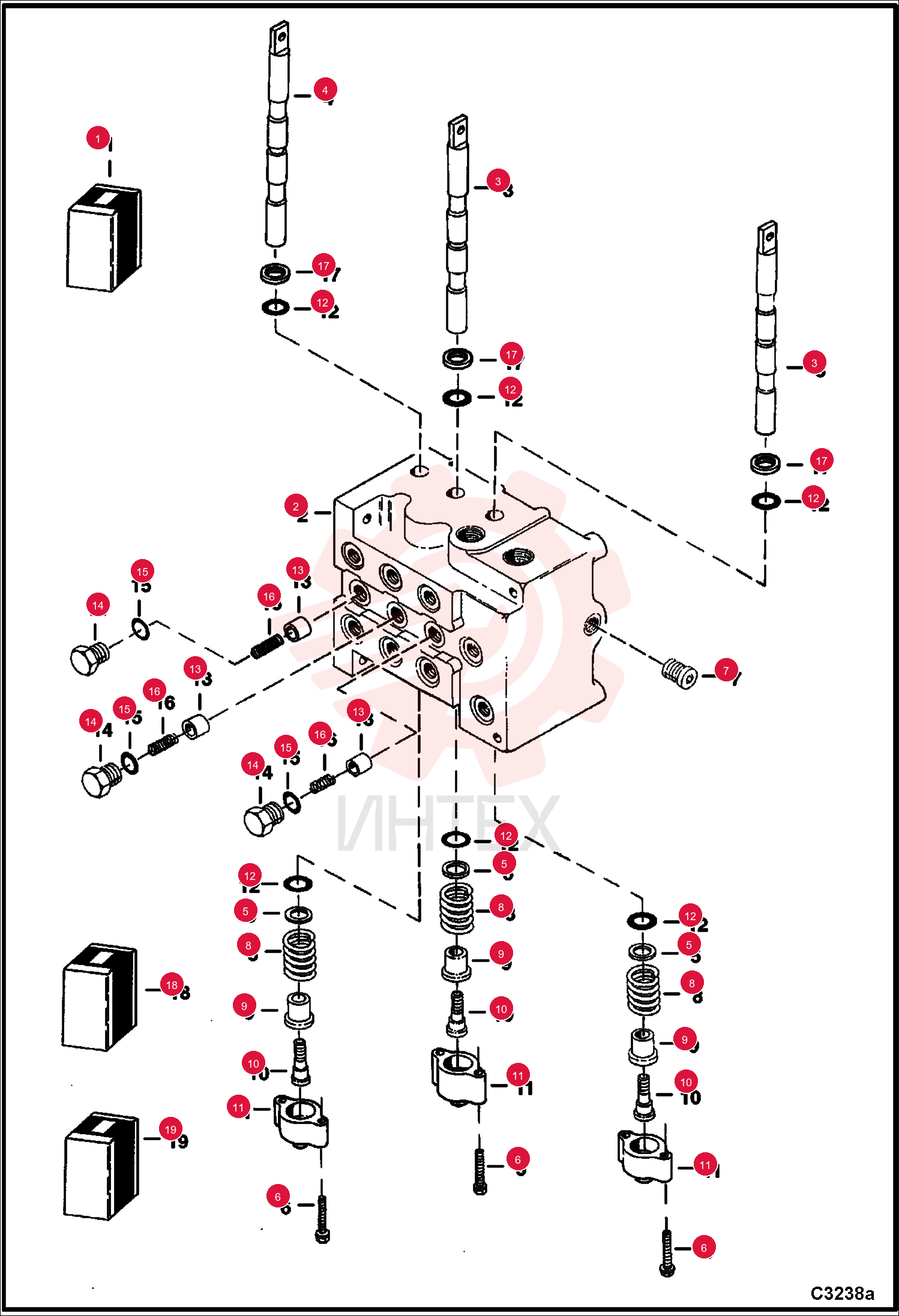

VALVE, SECTION 6658438 (1)

VALVE, SECTION 6658438 (1)

VALVE, SECTION 6658438 (1)

1 6658438

  • 6658438 - VALVE
  • SECTION
  • W/Ref. 2-16

2 6656422

  • 6656422 - PLUG

3 6685530

  • 6685530 - O-RING
  • Was 6656431

4 6656428

  • 6656428 - VALVE

5 6656429

  • 6656429 - PLUG
  • W/Ref. 15

6 6656432

  • 6656432 - O-RING

7 6656430

  • 6656430 - 6599472

8 6685527

  • 6685527 - RING
  • WIPER
  • wiper - Was 6658398

9 6656434

  • 6656434 - KIT
  • SPRING CENTERING
  • spring centering - W/Ref. 5
  • 6 & 8-11

10 6656433

  • 6656433 - KIT LOAD CHECK
  • load check - W/Ref. 13-16
