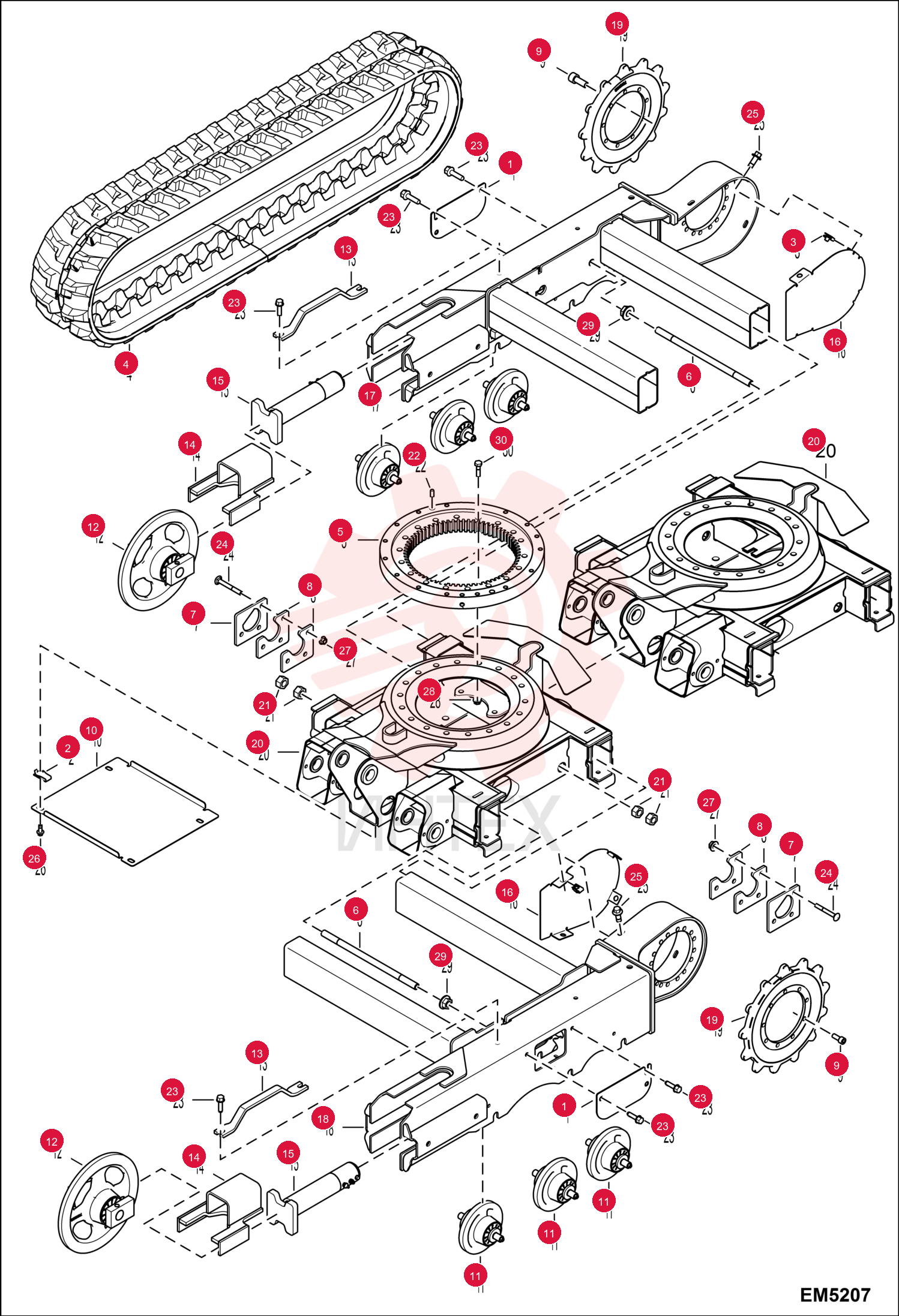

COVER 6596723

COVER 6596723

COVER 6596723

1 6596723

  • 6596723 - COVER

2 6675722

  • 6675722 - NUT

3 6676169

  • 6676169 - NUT

4 6685210

  • 6685210 - TRACK
  • RUBBER

5 6686964

  • 6686964 - BEARING
  • SLEW

6 7191522

  • 7191522 - ROD
  • Was 6805050

7 6805377

  • 6805377 - MOUNT

8 6805378

  • 6805378 - MOUNT

9 6805750

  • 6805750 - SCREW

10 7188552

  • 7188552 - COVER
  • Was 7100298

11 7101818

  • 7101818 - ROLLER

12 7101821

  • 7101821 - IDLER

13 7101824

  • 7101824 - GUIDE TRACK

14 7101835

  • 7101835 - YOKE W/A

15 7124134

  • 7124134 - CYL ASSY GRS 319

16 7103795

  • 7103795 - COVER MOTOR

17 7209907

  • 7209907 - FRAME TRACK ASSY
  • RH
  • Was 7193168

18 7188604

  • 7188604 - FRAME TRACK W/A RH
  • Was 7116214

19 7193169

  • 7193169 - FRAME TRACK W/A LH

20 7188605

  • 7188605 - FRAME TRACK W/A LH
  • Was 7116215

21 7161067

  • 7161067 - SPROCKET
  • PAINT

22 7236710

  • 7236710 - UNDERCARRIAGE

23 7212598

  • 7212598 - UNDERCARRIAGE

24 7209889

  • 7209889 - UNDERCARRIAGE
  • W/A
  • Was 7193167

25 7183162

  • 7183162 - UNDERCARRIAGE

26 1DM16

  • 1DM16 - NUT

27 23JM1232

  • 23JM1232 - PIN PARALLEL

28 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG

29 28CM1040

  • 28CM1040 - BOLT

30 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

31 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

32 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

33 51DM12

  • 51DM12 - NUT

34 51DM16

  • 51DM16 - NUT HEX FLNG 10 W/T

35 7CM1260

  • 7CM1260 - BOLT
