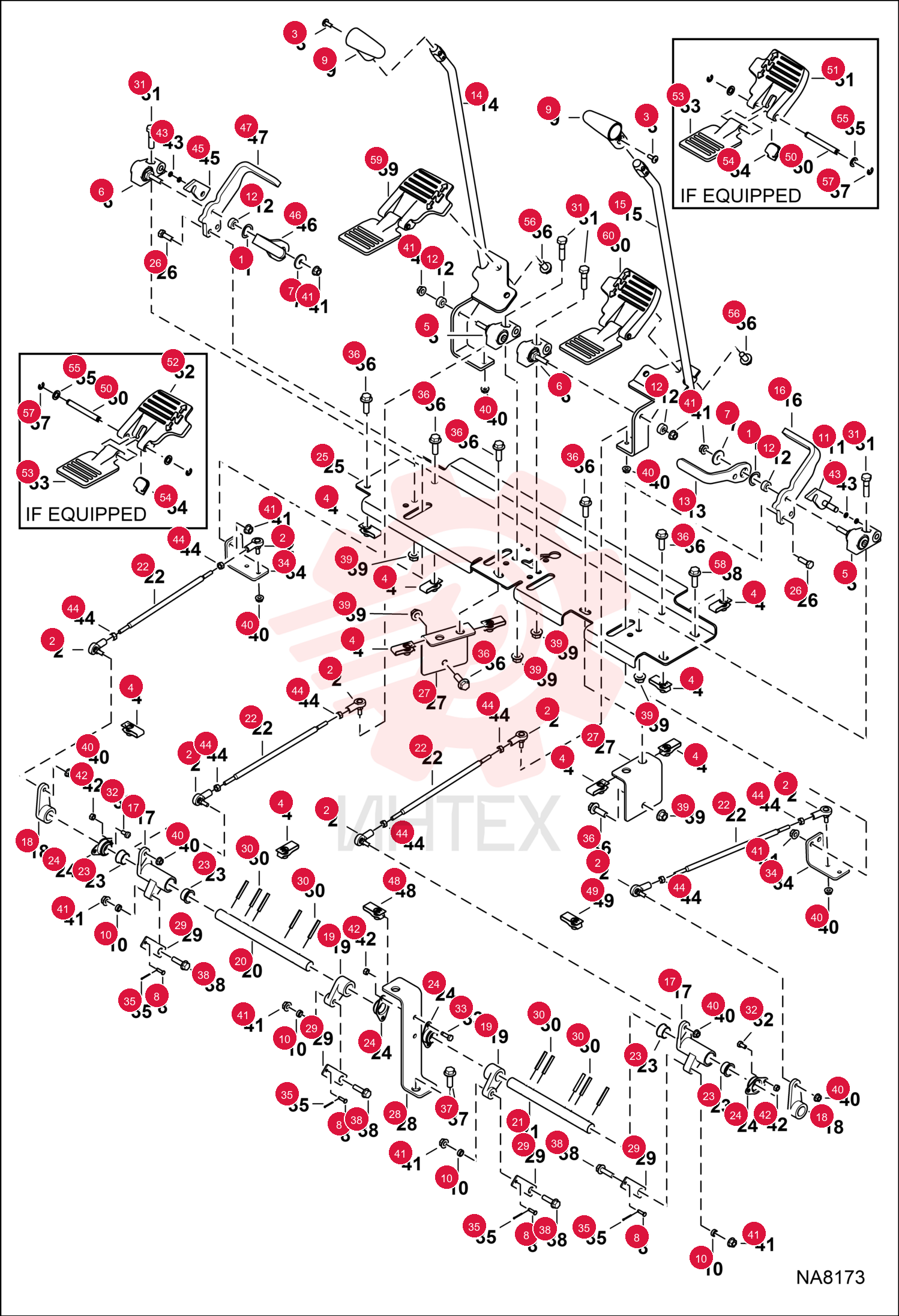

WASHER 6536803 (3)

WASHER 6536803 (3)

WASHER 6536803 (3)

1 6536803

  • 6536803 - WASHER

2 6631036

  • 6631036 - BALLJOINT

3 6803202

  • 6803202 - SCREW

4 6675722

  • 6675722 - NUT

5 6677908

  • 6677908 - BEARING
  • Was 6677904

6 6677904

  • 6677904 - BEARING
  • Was 6677908

7 6701174

  • 6701174 - WASHER FLAT

8 6801068

  • 6801068 - PIN

9 7163788

  • 7163788 - HANDLE
  • LEVER CONTROL

10 6807220

  • 6807220 - SPACER

11 6809194

  • 6809194 - LOCK

12 6810303

  • 6810303 - SPACER

13 6810508

  • 6810508 - PEDAL

14 7218711

  • 7218711 - LEVER
  • CONTROL

15 7218712

  • 7218712 - LEVER
  • CONTROL

16 7179863

  • 7179863 - PEDAL

17 7108516

  • 7108516 - BELLCRANK MACHINED

18 7108518

  • 7108518 - BELLCRANK MACHINED

19 7108520

  • 7108520 - BELLCRANK MACHINED

20 7108920

  • 7108920 - SHAFT

21 7108924

  • 7108924 - SHAFT

22 7108966

  • 7108966 - ROD THREADED

23 7111975

  • 7111975 - BUSHING

24 7112044

  • 7112044 - BEARING FLANGE

25 7218771

  • 7218771 - PLATE

26 4CM825

  • 4CM825 - BOLT HEX HEAD
  • Was 1CM825

27 7114500

  • 7114500 - BRACKET

28 7186069

  • 7186069 - BRACKET

29 7114502

  • 7114502 - LINK

30 14J2124

  • 14J2124 - ROLLPIN

31 1CM1040

  • 1CM1040 - BOLT

32 4CM612

  • 4CM612 - BOLT
  • Was 1CM612

33 4CM620

  • 4CM620 - BOLT
  • Was 1CM620

34 7172666

  • 7172666 - LINK
  • PEDAL

35 1F212

  • 1F212 - PIN

36 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP

37 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

38 29CM830

  • 29CM830 - SCREW HEX

39 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

40 98D4

  • 98D4 - NUT

41 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

42 53DM6

  • 53DM6 - NUT

43 54K20008

  • 54K20008 - O-RING

44 62D4

  • 62D4 - NUT HEX FINISHED GR5

45 6808930

  • 6808930 - LOCK

46 6810511

  • 6810511 - PEDAL

47 7116275

  • 7116275 - PEDAL LH

48 6676169

  • 6676169 - NUT

49 7186077

  • 7186077 - CLIP

50 7164061

  • 7164061 - PIN
  • HINGE

51 7181057

  • 7181057 - GROMMET

52 15EM100

  • 15EM100 - WASHER

53 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

54 9JM70

  • 9JM70 - RETAINER SHAFT

55 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

56 7210820

  • 7210820 - PEDAL ASSY RH

57 7210821

  • 7210821 - PEDAL ASSY LH
