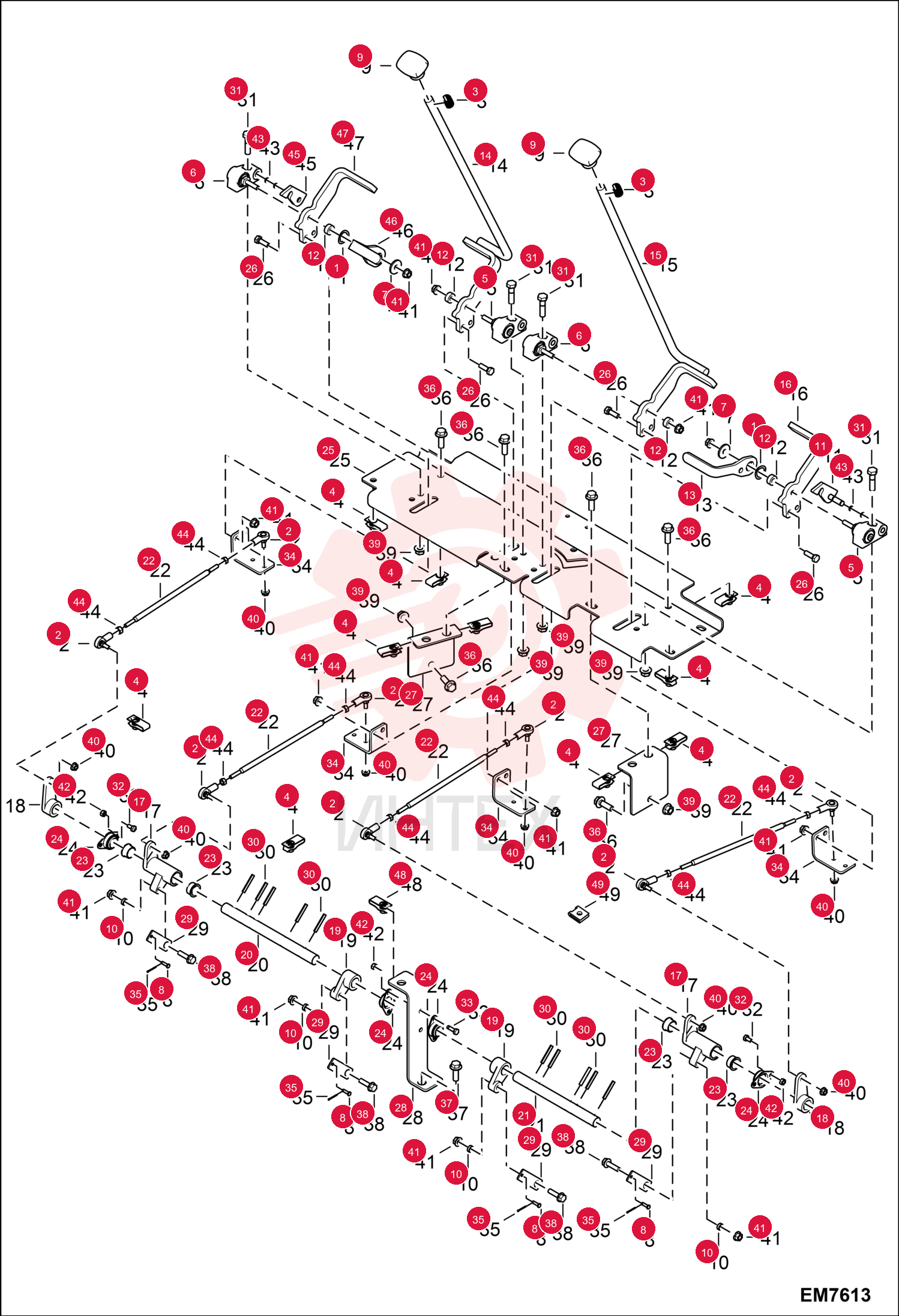

WASHER 6536803 (2)

WASHER 6536803 (2)

WASHER 6536803 (2)

1 6536803

  • 6536803 - WASHER

2 6631036

  • 6631036 - BALLJOINT

3 6672494

  • 6672494 - RING

4 6675722

  • 6675722 - NUT

5 6675722

  • 6675722 - NUT

6 6677908

  • 6677908 - BEARING
  • Was 6677904

7 6677904

  • 6677904 - BEARING
  • Was 6677908

8 6701174

  • 6701174 - WASHER FLAT

9 6801068

  • 6801068 - PIN

10 6804068

  • 6804068 - HANDLE ASSEMBLY
  • Also Order Ref. 3

11 6807220

  • 6807220 - SPACER

12 6809194

  • 6809194 - LOCK

13 6810303

  • 6810303 - SPACER

14 6810508

  • 6810508 - PEDAL

15 6810532

  • 6810532 - PEDAL

16 6810533

  • 6810533 - PEDAL

17 7179863

  • 7179863 - PEDAL
  • Was 6816109

18 7108516

  • 7108516 - BELLCRANK MACHINED

19 7108518

  • 7108518 - BELLCRANK MACHINED

20 7108520

  • 7108520 - BELLCRANK MACHINED

21 7108920

  • 7108920 - SHAFT

22 7108924

  • 7108924 - SHAFT

23 7108966

  • 7108966 - ROD THREADED

24 7111975

  • 7111975 - BUSHING

25 7112044

  • 7112044 - BEARING FLANGE

26 7114498

  • 7114498 - PLATE PEDALS

27 4CM825

  • 4CM825 - BOLT HEX HEAD
  • Was 1CM825

28 7114500

  • 7114500 - BRACKET

29 7114501

  • 7114501 - BRACKET CONTROLS

30 7186069

  • 7186069 - BRACKET

31 7114502

  • 7114502 - LINK

32 14J2124

  • 14J2124 - ROLLPIN

33 1CM1040

  • 1CM1040 - BOLT

34 4CM612

  • 4CM612 - BOLT
  • Was 1CM612

35 4CM620

  • 4CM620 - BOLT
  • Was 1CM620

36 7172666

  • 7172666 - LINK
  • PEDAL
  • Was 7114499

37 1F212

  • 1F212 - PIN

38 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP

39 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

40 29CM830

  • 29CM830 - SCREW HEX

41 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

42 98D4

  • 98D4 - NUT

43 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

44 53DM6

  • 53DM6 - NUT

45 54K20008

  • 54K20008 - O-RING

46 62D4

  • 62D4 - NUT HEX FINISHED GR5

47 6808930

  • 6808930 - LOCK

48 6810511

  • 6810511 - PEDAL

49 7116275

  • 7116275 - PEDAL LH

50 6676169

  • 6676169 - NUT

51 7186077

  • 7186077 - CLIP
